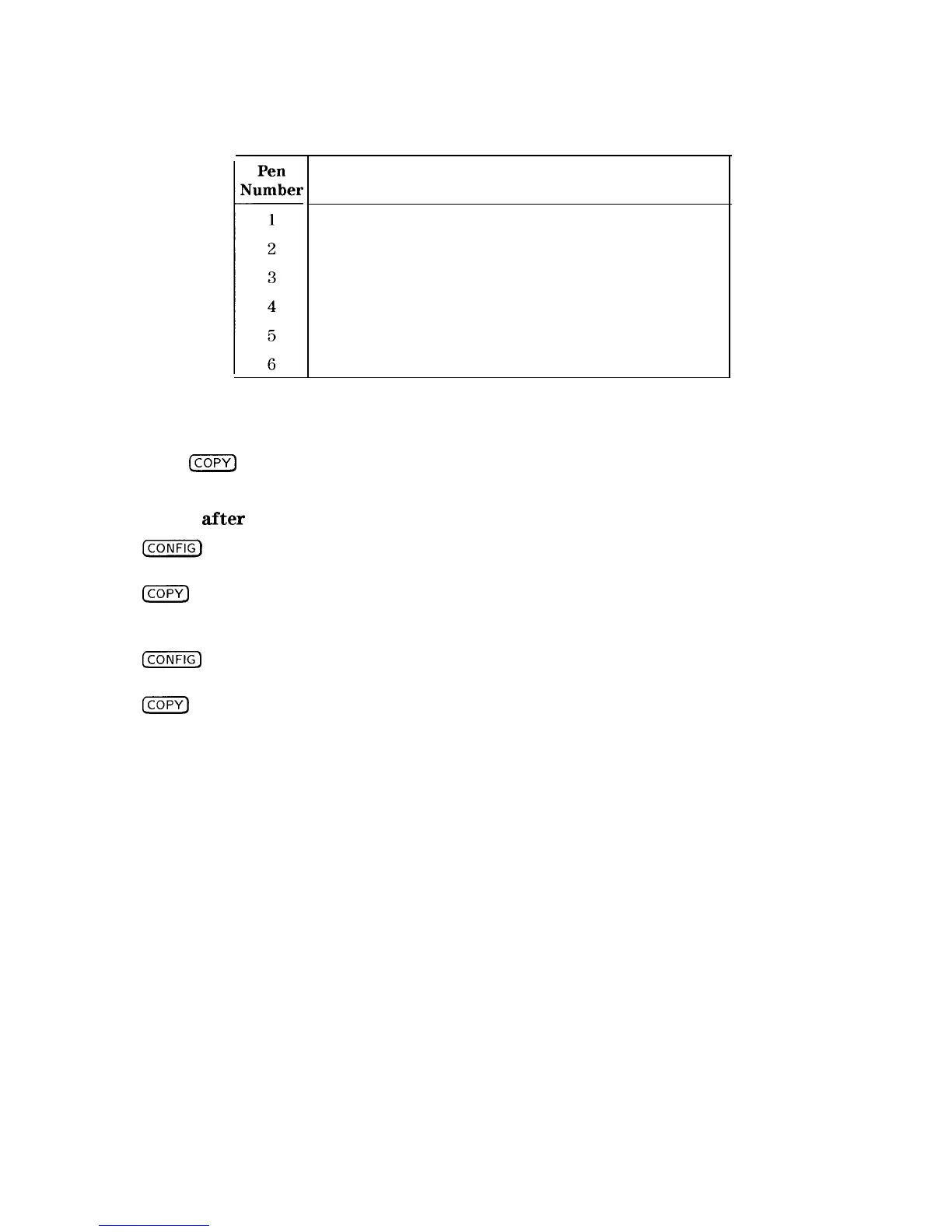

For a multi-pen plotter, the pens of the plotter draw the different components of the screen as
follows:
Description
Draws the annotation and graticule.
Draws trace A.
Draws trace B.
Draws trace C and the display line.
Draws user-generated graphics and the lower-limit line.
Draws the upper-limit line.
Printing after Plotting or Plotting after Printing
Pressing Icopv) without changing COPY DEV PRNT PLT produces the function last entered (a
print or a plot).
To print after plotting, press:
COPY DEV PRNT PLT (so that PRNT is underlined)
IcoPv]
To plot after printing, press:
@Gig
COPY DEV PRNT PLT (so that PLT is underlined)
IcoPv]
Printing and Plotting
6-17
