Using Instrument Functions
Connecting and Configuring Printers and Plotters
Connect
the
Printer
or
Plotter
1. Turn off the analyzer and the printer or plotter.
2. Connect to one of the ports shown in Figure 4-25.
LAN
SERIAL
ETHERTWIST
PERIPHERAL
HP-IB
\
PARALLEL
/

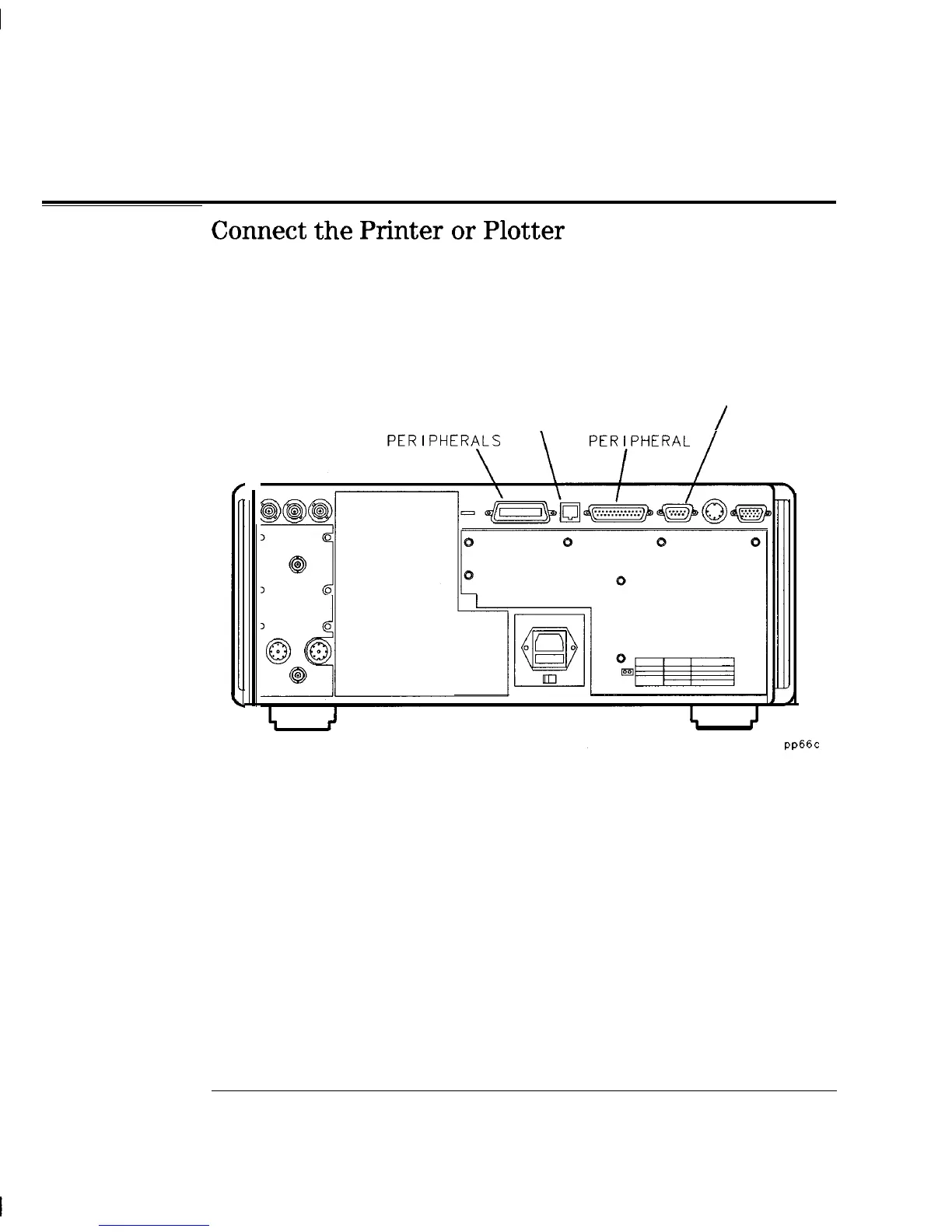

Figure 4-25. Peripheral Connections
