Making Measurements
Measuring Reflection Response
Chapter 6 provides detail about when this calibration is necessary. If you
wish to calibrate your instrument for a reflection one-port measurement,
perform the following steps:
1.
Press (CAL)
One
Part
2. The instrument will prompt you to connect three standards (open, short
and load) and measure them. See Figure 3-7.
NETWORK
ANALYZER
/
\
OPEN
SHORT
LOAD

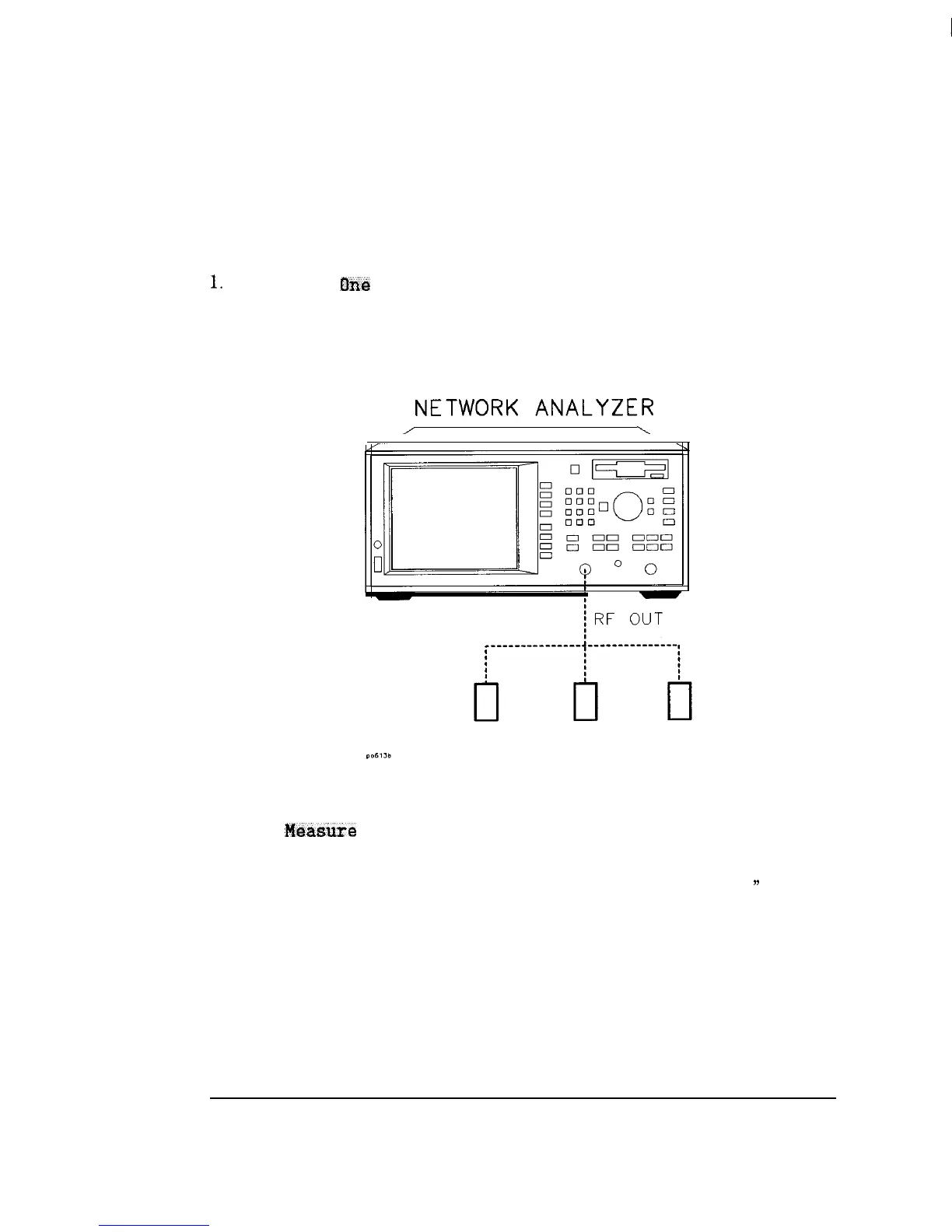

Figure 3-7. Equipment Setup For a Reflection Response Calibration
3. Press
Measure
Standard after connecting each standard
4. The analyzer will measure each standard and then calculate new
calibration coefficients. The message “Calibration complete.
’
will
appear for a few seconds when the analyzer is done calculating the new
error correction array.
5. The calibration may be saved in memory for later use if you wish. See
Chapter 6 for information on saving calibrations.
3-26
