Automating Measurements
Displaying Measurement Results

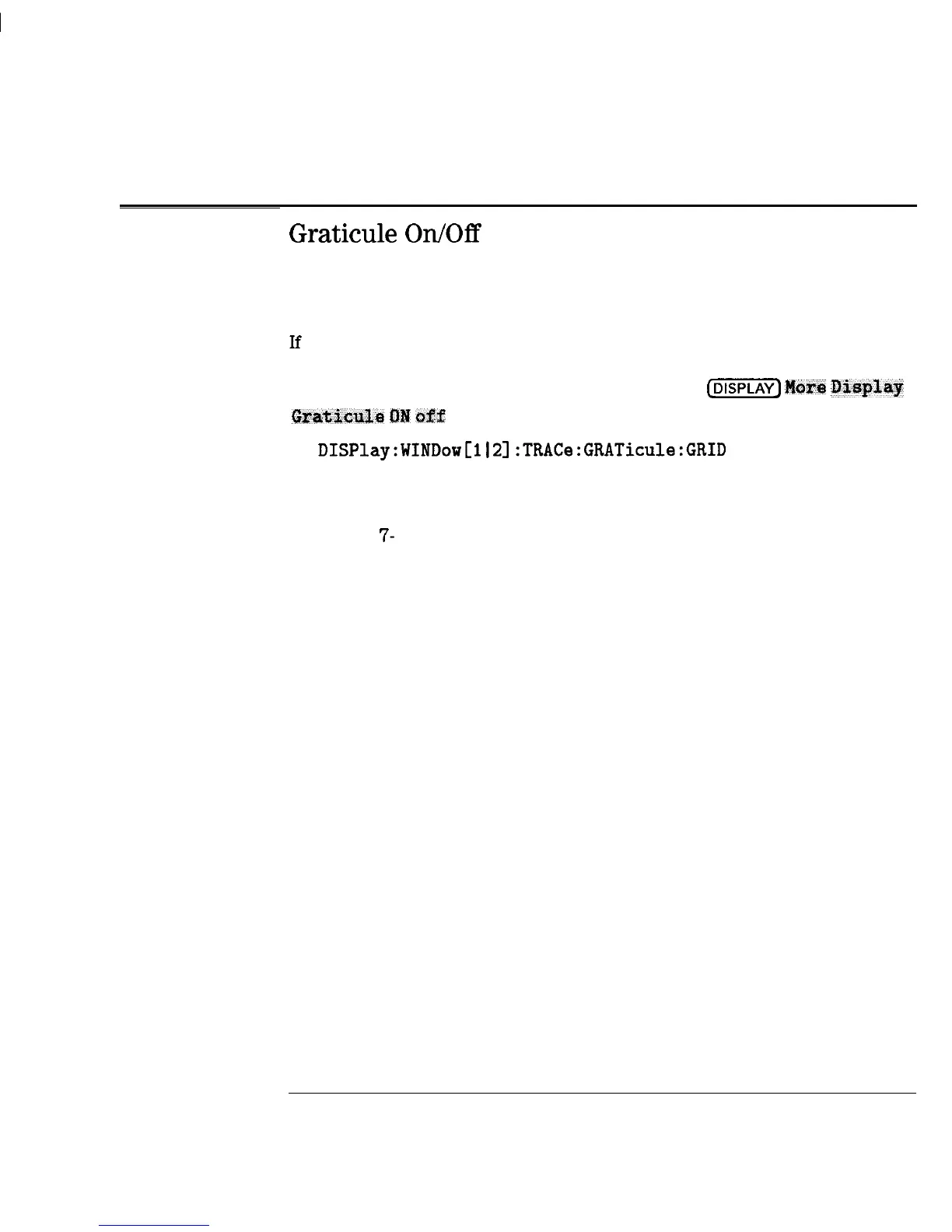

Graticule
On/Off
The graticule is the set of grid lines that designate increments of value on the
x-axis and y-axis of the measurement.
lf the operator is comparing the trace against limit lines or marker values,
turning off the graticule makes it easier to view the measurement trace, limit
lines, and markers. ‘lb turn the graticule off, press
(j-1
MOYFB
Dieplay
Gz~$Ecule
ON
aif
or use this SCPI command:
DISPlay:WINDow[112]:TRACe:GRATicule:GRID OFF
where the window number is 1 if in full screen display, and 1 or 2 for the
upper and lower split screen displays.
See Figure
7-
11 for an example of a display with the graticule turned off.
7-63
-
