Display

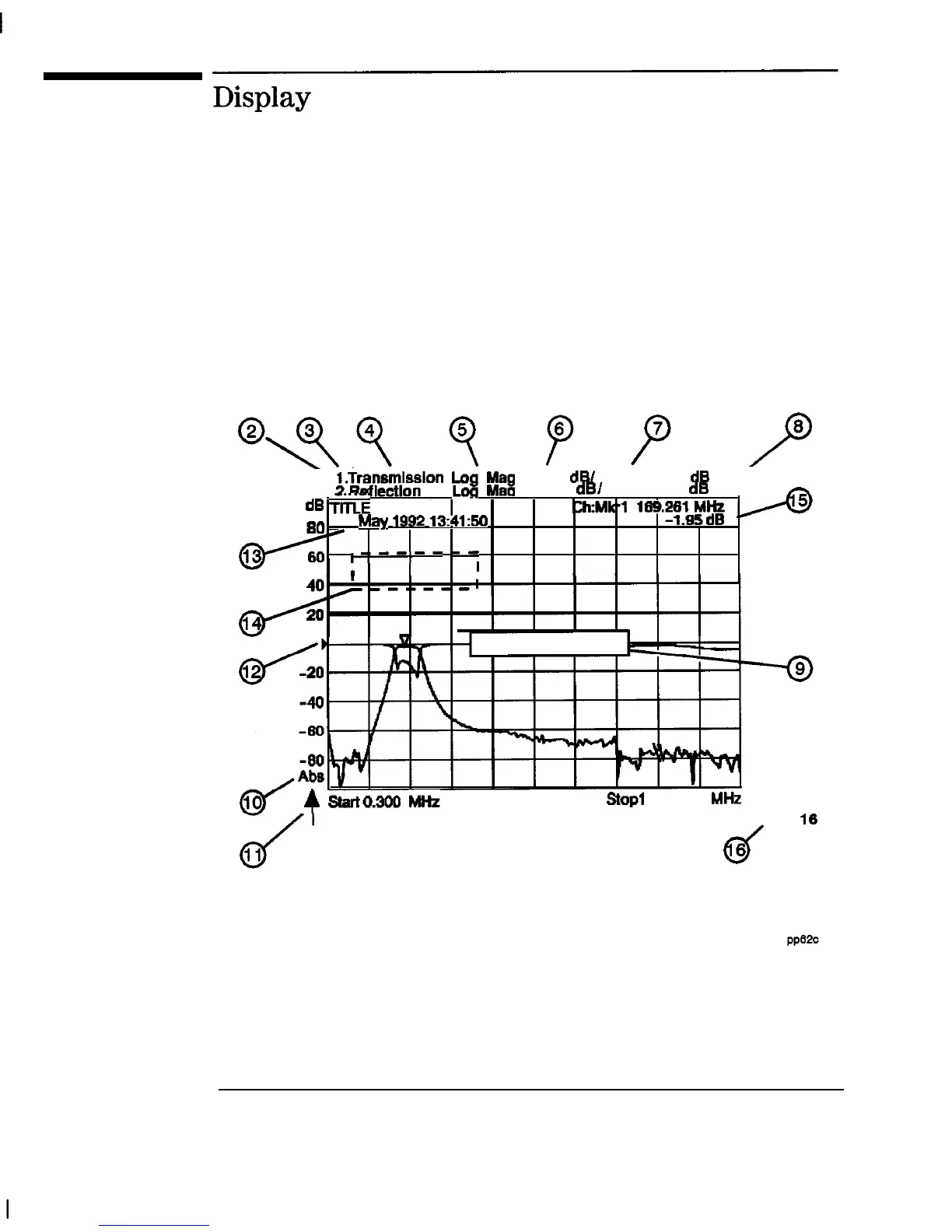

The analyzer display shows various measurement information. The following
illustration shows several locations where information is provided on the
screen.
