3
ENGLISH
1) Remove the fixing screws, right and left for
transportation.
(8 mm wrench is supplied with the machine.)
Retain the screws since they are necessary
when moving the sewing machine. Be sure
to attach them when moving the sewing
machine.
3. INSTALLATION
(2) Raising and returning the sewing machine

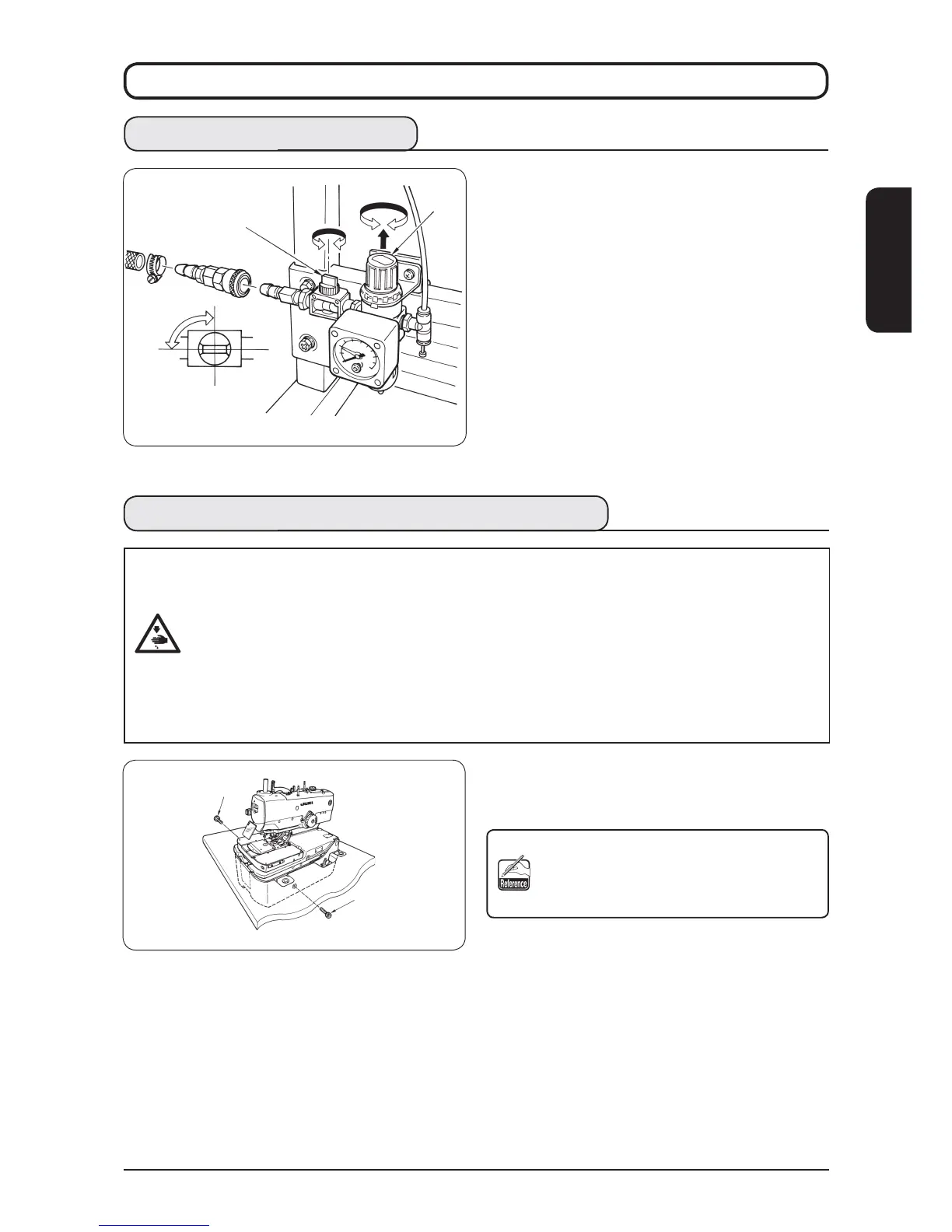

(1) Installing the air hose
■
Connecting the air hose
Connect the air hose to the regulator using
the hose band and the one-touch socket joint
supplied with the machine.
■
Adjustment of air pressure
Open air cock
, pull up and turn air adjustment
knob
and adjust so that air pressure indicates
0.45 to 0.55 MPa. Then lower the knob and fix it.
＊
Close air cock
to expel air.
Close
Open
Fixing screw, left
Fixing screw, right
DANGER :
1. If you find the sewing machine is too heavy to lift, the gas spring may have malfunctioned due to
outgassing.
Never
lift the sewing machine in such a state since the machine can drop to pinch hands, fingers
and arms resulting in serious injury.
*
Be sure to fully understand the standard of replacing time of the gas spring on p.56 and its re-
placement procedure on p.57 before putting the sewing machine into operation.
2. In order to prevent pinching of hands, fingers and arms that can result in a serious injury, be
sure to strictly observe the following when carrying out work.
2-1. Be sure to hold the rib on the bed periphery when holding the sewing machine.
2-2. Be sure to lock the hinge stopper to firmly secure the sewing machine in its raised position.
To Next Page
