Long thread trimming
Short thread
trimming S
(C standard)
Short thread
trimming M
(J standard)
Short thread
trimming L
1 2 3 4 5 6 7 8
OFF
1 2 3 4 5 6 7 8
OFF
1 2 3 4 5 6 7 8
OFF
1 2 3 4 5 6 7 8
OFF
DIP-SW
1 2
ON OFF S
OFF ON M
ON ON L
Presser type
DIP-SW Type
1 2
OFF OFF
Long thread
trimming

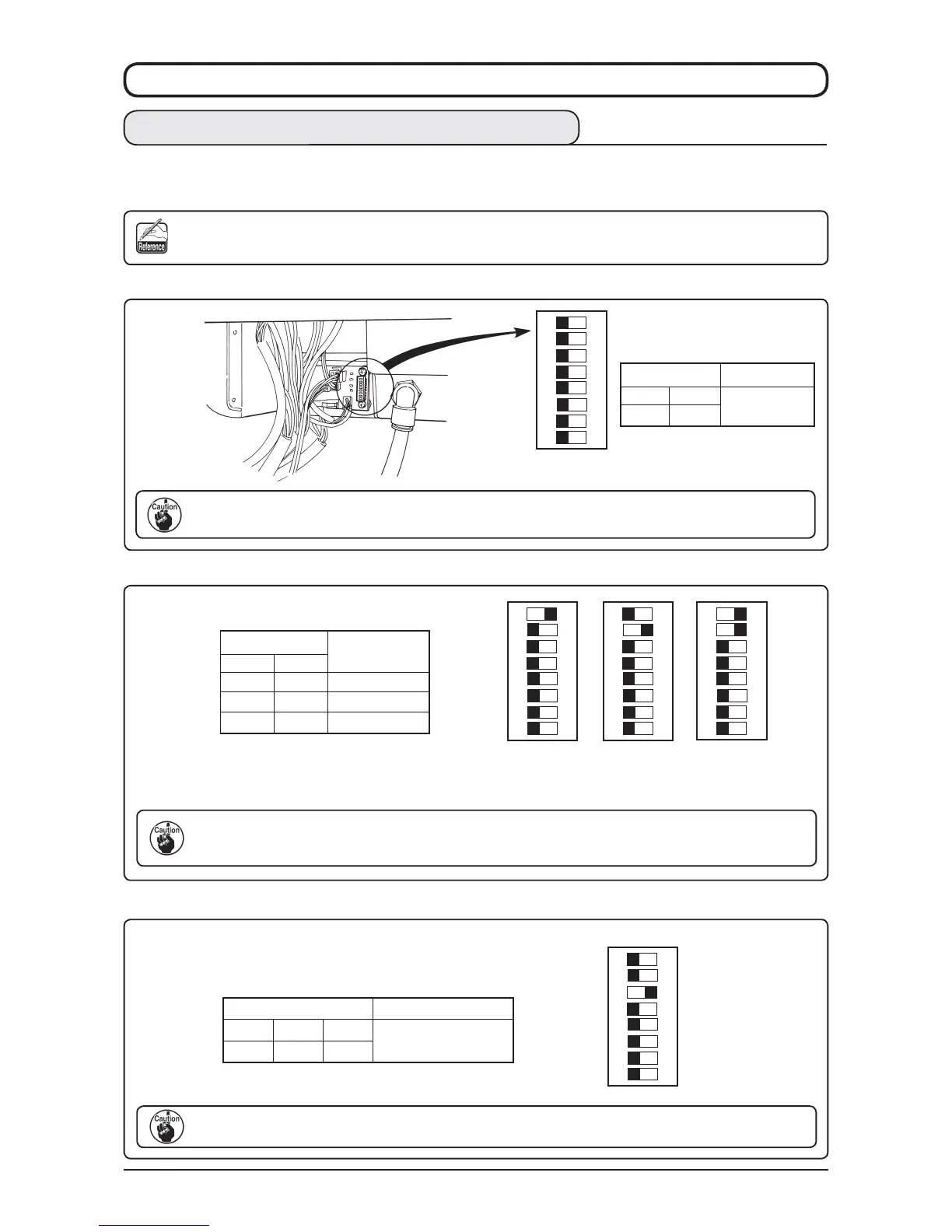

(1) Changing the thread trimming method
■
DIP switch
Thread trimming type is selected with DIP switch 1 and 2 located at the rear of the machine head.
It is necessary to separately set the memory switch (machine model setting) in case of the change of
type such as S
←→
J and the like.
1) S and R type (long thread trimming)
12. EXCHANGING GAGUE PARTS AND OPTIONAL
2) J and C type (short thread trimming)
Do not change DIP-SW for the long thread trimming type.
Simultaneously change DIP-SW when changing the presser set for J and C types.
When changing the presser set, the pattern used before the change cannot be used.
3) T type (short thread trimming without gimp) – for slacks
Do not change DIP-SW for the short thread trimming without gimp type.
1 2 3 4 5 6 7 8
OFF
DIP-SW Type
1 2 3 Short thread tr
imming
without gimp
OFF OFF ON
To Next Page
