37
ENGLISH
• Set the cut length to the length of the knife holder to be used plus overlapping amout (b) or more.
• Select the length (a) of the straight bar within the range where there is no interference of the throat
plate with the eyelet holding plate in consideration of the position of the presser plate when the
cloth open mechanism opened.
• When the length (a) of the straight bar is lengthened, needle thread may not be clamped unless the
lateral position of the needle thread clamp unit is re-adjusted. (Refer to the Engineer's Manual.)

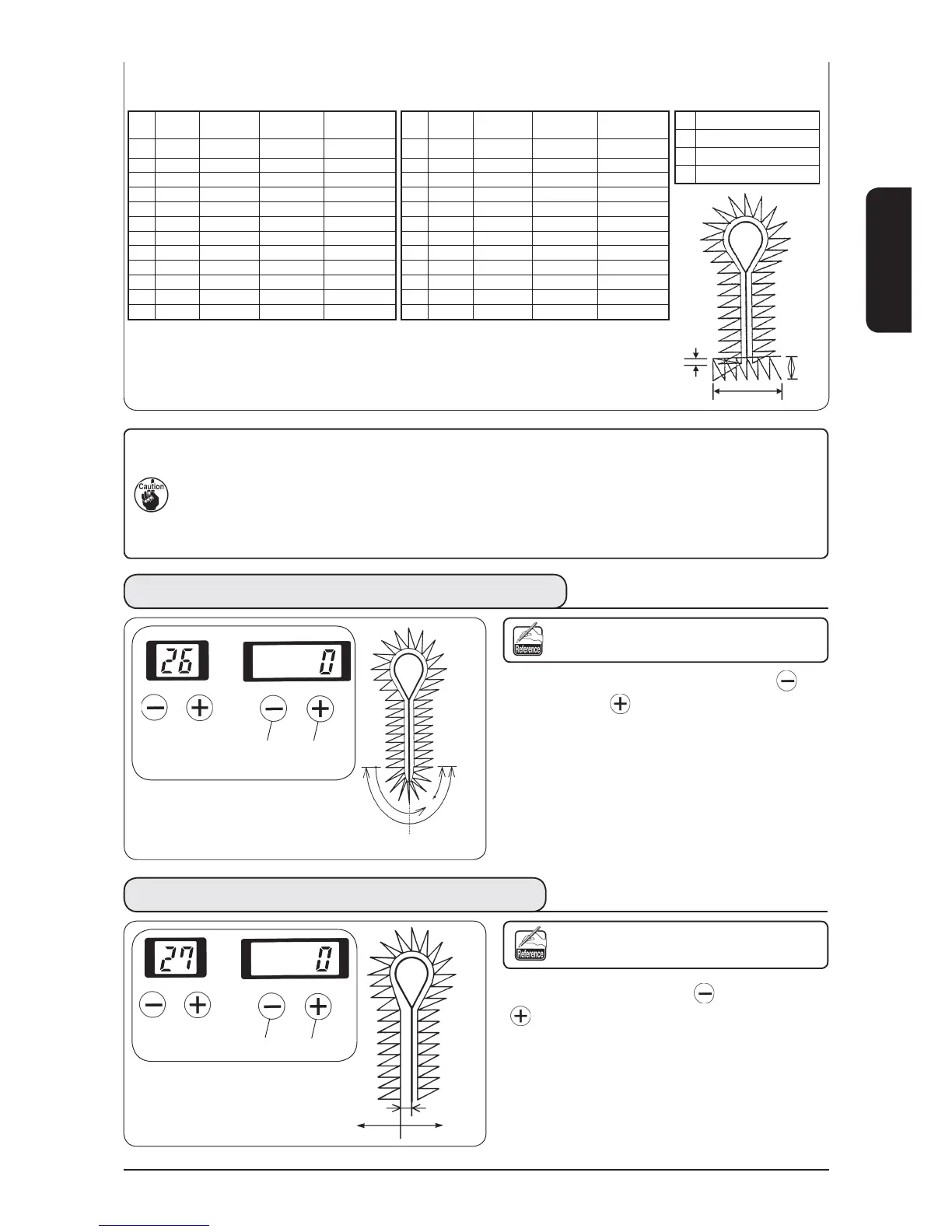

Select the shape of straight
bar from the left-hand table.
b
c
a,n
a Length
n Number of stitches
b Overlapping amount
c Needle throw width
No. Length Nuber of Overlapping Needle throw
(a) stitches(n) amount(b) width(c)
67 3.0 4 1.0
−
1.0
68
4.0 5 1.0
−
1.0
69
5.0 6 1.0
−
1.0
70
6.0 7 1.0
−
1.0
71
3.0 5 1.0
−
1.0
72
4.0 6 1.0
−
1.0
73
5.0 7 1.0
−
1.0
74
6.0 9 1.0
−
0.5
75
3.0 6 1.0
−
1.0
76
4.0 8 1.0
−
1.0
77
5.0 9 1.0
−
1.0
78
6.0 11 1.0
−
1.0
No. Length Nuber of Overlapping Needle throw
(a) stitches(n) amount(b) width(c)
79 3.0 4 1.5
−
1.0
80
4.0 5 1.5
−
1.0
81
5.0 6 1.5
−
1.0
82
6.0 7 1.5
−
1.0
83
3.0 5 1.5
−
1.0
84
4.0 6 1.5
−
1.0
85
5.0 7 1.5
−
1.0
86
6.0 9 1.5
−
1.0
87
3.0 6 1.5
−
1.0
88
4.0 8 1.5
−
1.0
89
5.0 9 1.5
−
1.0
90
6.0 11 1.5
−
1.0
(15) Number of stitches of the round bar
The number of stitches of the round bar
is set.
1) Set the number of stitches with [RIGHT ] key
or [RIGHT ] key
.
2)
In case of without the round bar, set the value to “0”.
3) In case of entering the round bar, 4 to 20 stitches
can be set.
4)
When the round bar has been set, the number of
overlapped stitches of sewing start and sewing
end can be set with the number of stitches of
sewing end compensation of data No. 9.
Number of
stitches
Clearance
+ –
(16) Left side cut space compensation
The clearance where the knife drops in the left
side of the parallel section can be compensated.
Set the clearance with [RIGHT ] key
or [RIGHT
] key
. If the setting is “
＋
”, the clearance
becomes larger than that on the right side, and if it is
“
−
”, the clearance becomes smaller.
Setting range is limited by the set value of the cut
space of No. 6.
Cut space setting range is -1.2
≦
cut space +
compensation of left cut space
≦
1.2.
To Next Page
