INTRODUCTION
H550 AE Rev.: 007 kortho KGJ X-series
1-3
1.4.2 Control unit
A general impression of the control unit TsC20 dimensions is given in Fig. 1.2 . The typical specifications of
the control units are:
Part.nr.
Control unit
Height
Width
Depth
Coding unit
818131
Control unit TsC20-X Duo
203
258
153
2
Beware:
One can connect two coding units to the control unit TsC20-X Duo. Both coding units have to be of
the same type, so 2x X18 series, 2x X54-series or 2 x X72-series. Different types of X18 can be used
together.

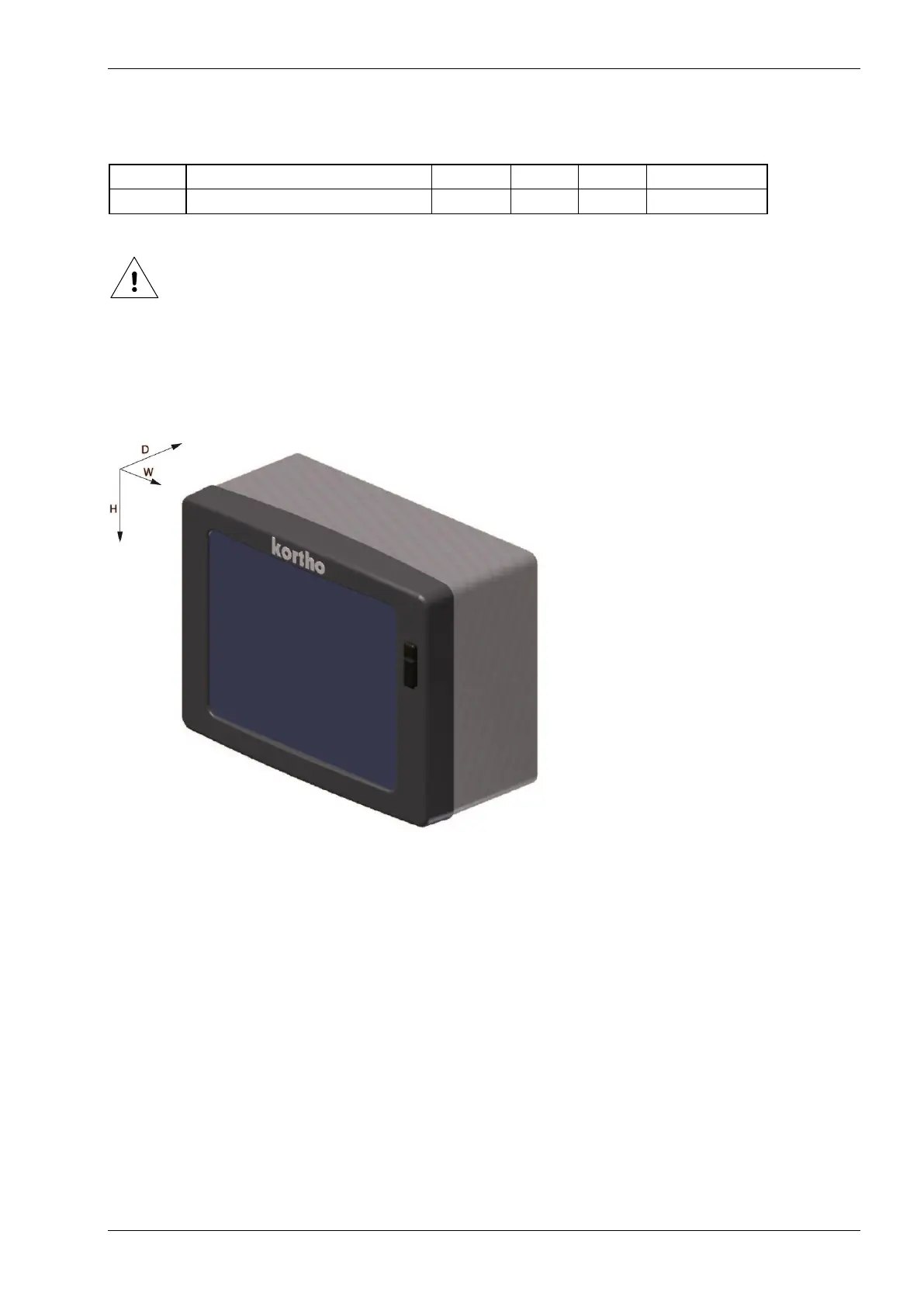

Fig. 1.2 Control unit, global dimensions
The electrical requirements for the power supply of a Controller TcC20 or TsC20-Duo in combination with
one coding unit X18/X18+/X18si/X54/X72 are:
• Voltage rating: 100-240 VAC;
• Frequency rating: 50 / 60Hz;
• Current rating: 0,5A / 0,25A
• Power rating: 50VAmax.
• Fuse rating: 2x T2,5A 250VAC (slow acting).
The electrical requirements for the power supply of a controller TcC20-Duo in combination with two coding
units X18/X18+/X18si/X54/X72 are:
• Voltage rating: 100-240 VAC;
• Frequency rating: 50 / 60Hz;
• Current rating: 0,85A / 0,45A
• Power rating: 85VAmax.
• Fuse rating: 2x T2,5A 250VAC (slow acting).
