H550 AE Rev.: 007 kortho KGJ X-series

8-1

8 OPERATION

This part describes the functions and procedures for operating the printer.

Beware:

If there are two coding units connected to one controller, some parameters should be set for each

individual coding unit, see section 8.7.

8.1 Powering up

1. Check whether the printer is damaged by visual inspection.

2. Check whether all of the relevant cables are connected.

3. Switch on the control unit.

Note:

When the system parameter Start paused is set to No, the printer will start printing as soon as the

print engine is powered up and a print request is received. The print engine is active before the

Main menu is shown. Refer to subsection 8.6.1.

4. Wait until the Main menu is shown.

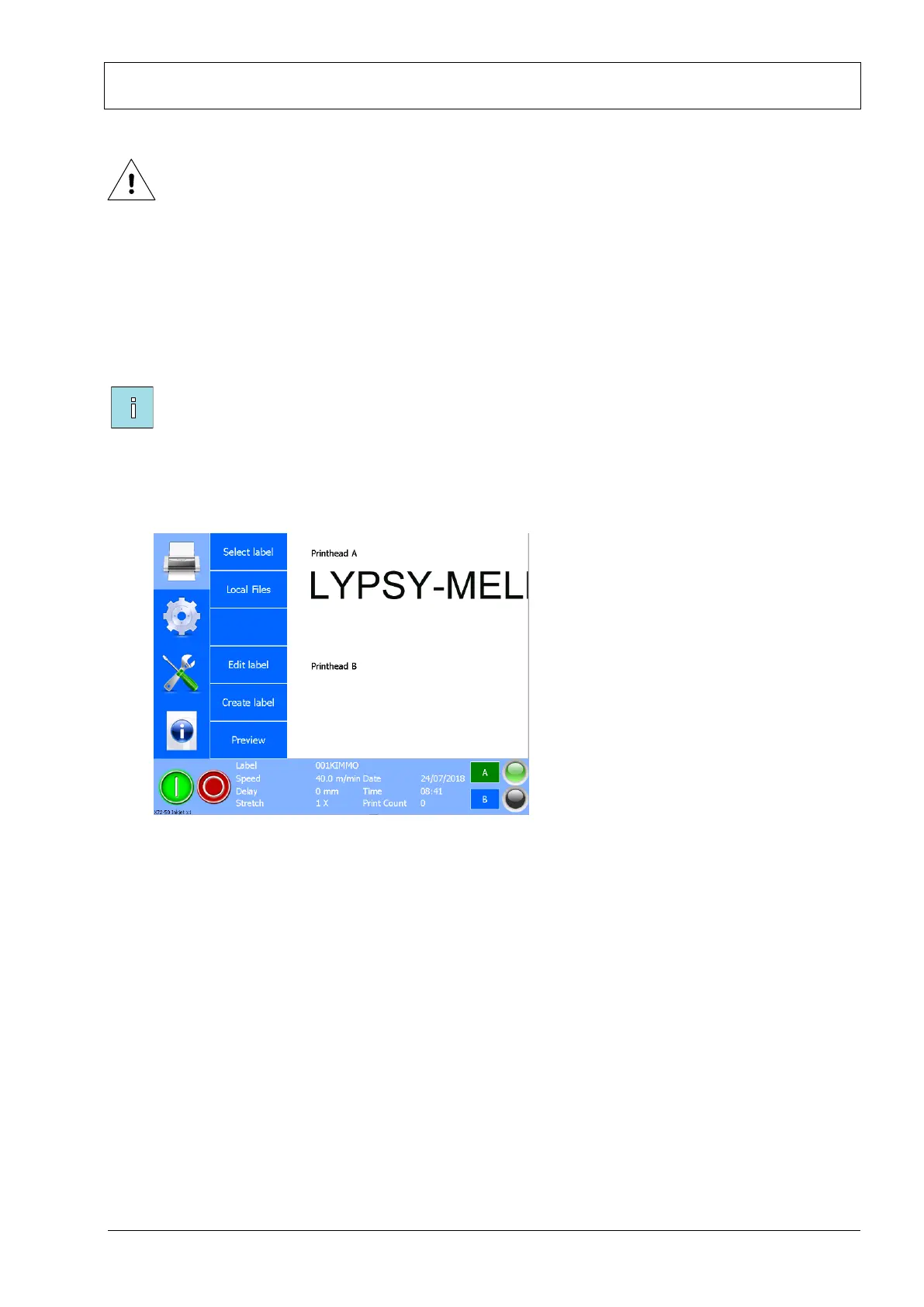

Fig. 8.1 Main menu

5. Check whether the printer is ready to print, the LED indicator on screen should show a green light.

6. Access the desired menu function by pressing the appropriate function icon or button.

Questions and Answers:

A
Alyssa MillerAug 20, 2025
Why is my Kortho Printer not printing on request?
- T
  Tim MurphyAug 20, 2025
  The Kortho printer might not be printing because the system is in pause mode (the red indicator is lit, and a warning is displayed on the screen). Another reason could be that the number of prints has reached the value set in print count, indicated by the green status LED flashing on the coding unit and the status screen showing the print count. Also, the print request sensor or cable could be defective or not sensing the product/mark. Finally, the system might be in error mode, indicated by the orange LED on the screen and an active general alarm output.
A
Aaron FarmerAug 22, 2025
What to do if Kortho GraphicJet X control unit does not power up?
- D
  Dr. Wesley ThomasAug 22, 2025
  If the Kortho Printer control unit does not power up, check the following: ensure the mains voltage is present, the power cable is properly connected to the control unit and is not damaged, and the ON-OFF switch is in the I position. Also, check the fuses in the power entry module (X01) and on the power supply board, making sure the LEDs beside the fuses on the power supply board are lit. Verify that the internal mains wiring and the 48VDC and processor board wiring are connected properly. Ensure the backlight cable of the user interface panel and the user interface panel-flat cable are properly connected and undamaged. If there is a burning smell, contact your local dealer. Remember to disconnect the power cable (X1) from the mains power supply first.
