Kortho GraphicJet X Series User Manual

INSTALLATION
H550 AE Rev.: 007 kortho KGJ X-series
6-3
6.2.2 Control unit
The control unit is used for controlling the coding unit and designing the labels. The control unit is equipped
with an integrated bracket on the back of the control unit. The support set is optional.

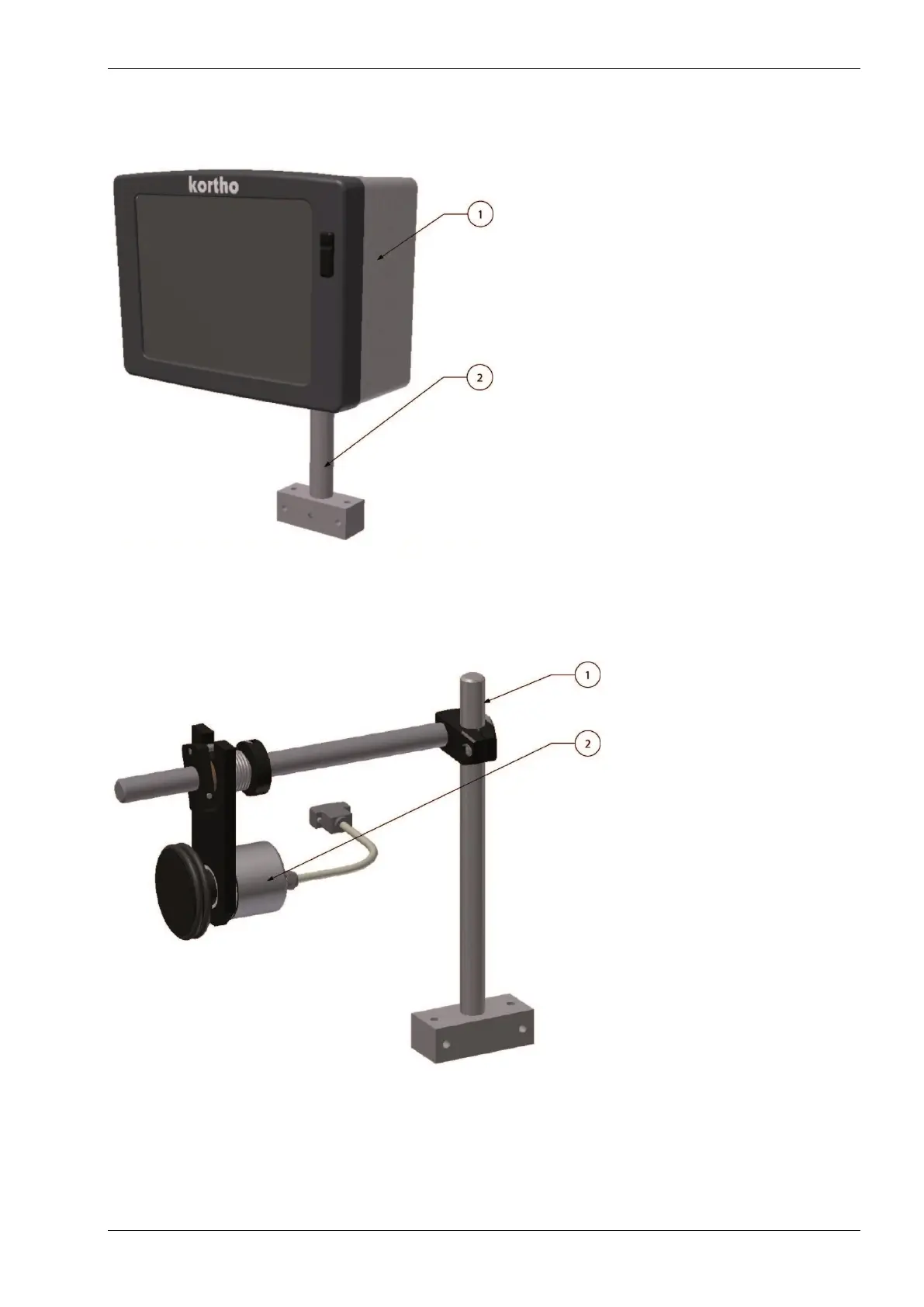

Fig. 6.3 Control unit TsC20
6.2.3 Encoder (Optional)
The encoder is used for measuring the line speed and controlling the print speed accordingly.
Fig. 6.4 Encoder with support
1. Control unit
2. Support set (optional)
1. Encoder support
2. Encoder
