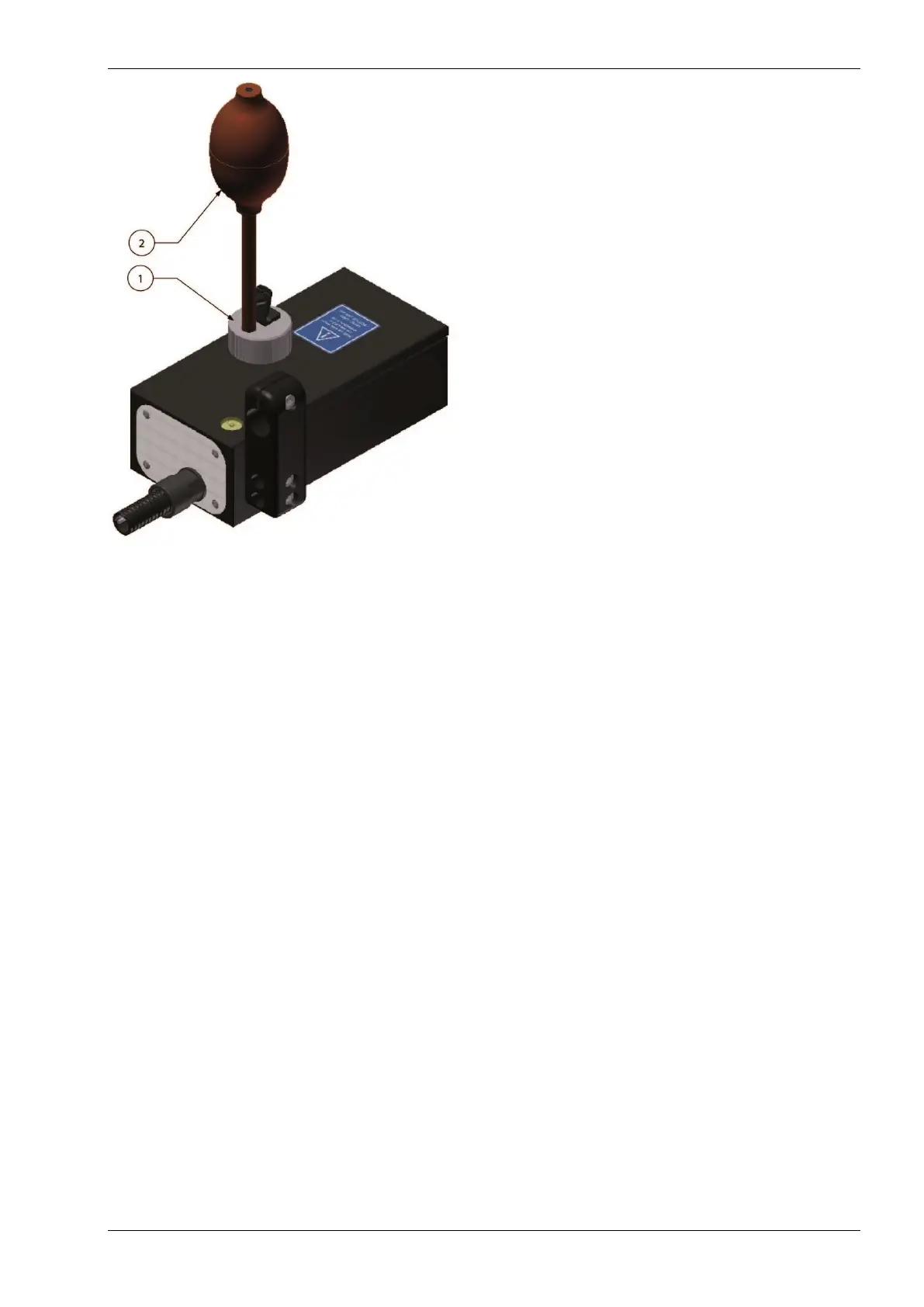

Fig. 7.7 Ink reservoir with prime bulb.
12. Fit the prime bulb to the opening in the screw cap (Fig. 7.7).
13. Hold paper tissues in front of the printhead to collect ink.
14. Squeeze the prime bulb completely just one time to prime the printhead. Prime in bursts of about
three to five seconds to remove any air bubbles out of the ink system.
15. Repeat priming until ink squirts from all the nozzles.
16. Remove the prime bulb (gently, to avoid a pressure wave within the ink tubes) from the fitting of
the screw cap to stop priming the printhead.
17. Rotate the printhead housing back to the print position. This is only necessary if the printhead
housing is rotated to the horizontal position at instruction 2.
18. The printer is now ready to print.
7.3 Tuning the speed related parameters
Proceed with this section only if the instructions of the sections 7.1 and 7.2 are carried out successfully.
7.3.1 Preparing for the first test print
1. Switch on the control unit.
2. Touch the Settings icon
3. Touch the Signal button (Fig. 7.8).
