APPENDIX D , CONNECTIONS
kortho KGJ X-series H550 AE Rev.: 007
Control unit Connector Plate
Item Description Connector type
X01 Encoder DB 9-ways, socket
X02 Printhead A DB 25-ways, socket
X03 Input/output HD 26-ways, socket
X04 Print request DB 9-ways, socket
X05
RS232
DB 9-ways, socket
X06 Printhead B DB 25-ways, socket
X07 BCD connector DB 15-ways, socket
X08
Sensor input product detect to add BCD code to print list DB 9-ways, socket
X09 Mains power switch with 2 fuses 2,5A (s)
LAN LAN connector RJ45, socket

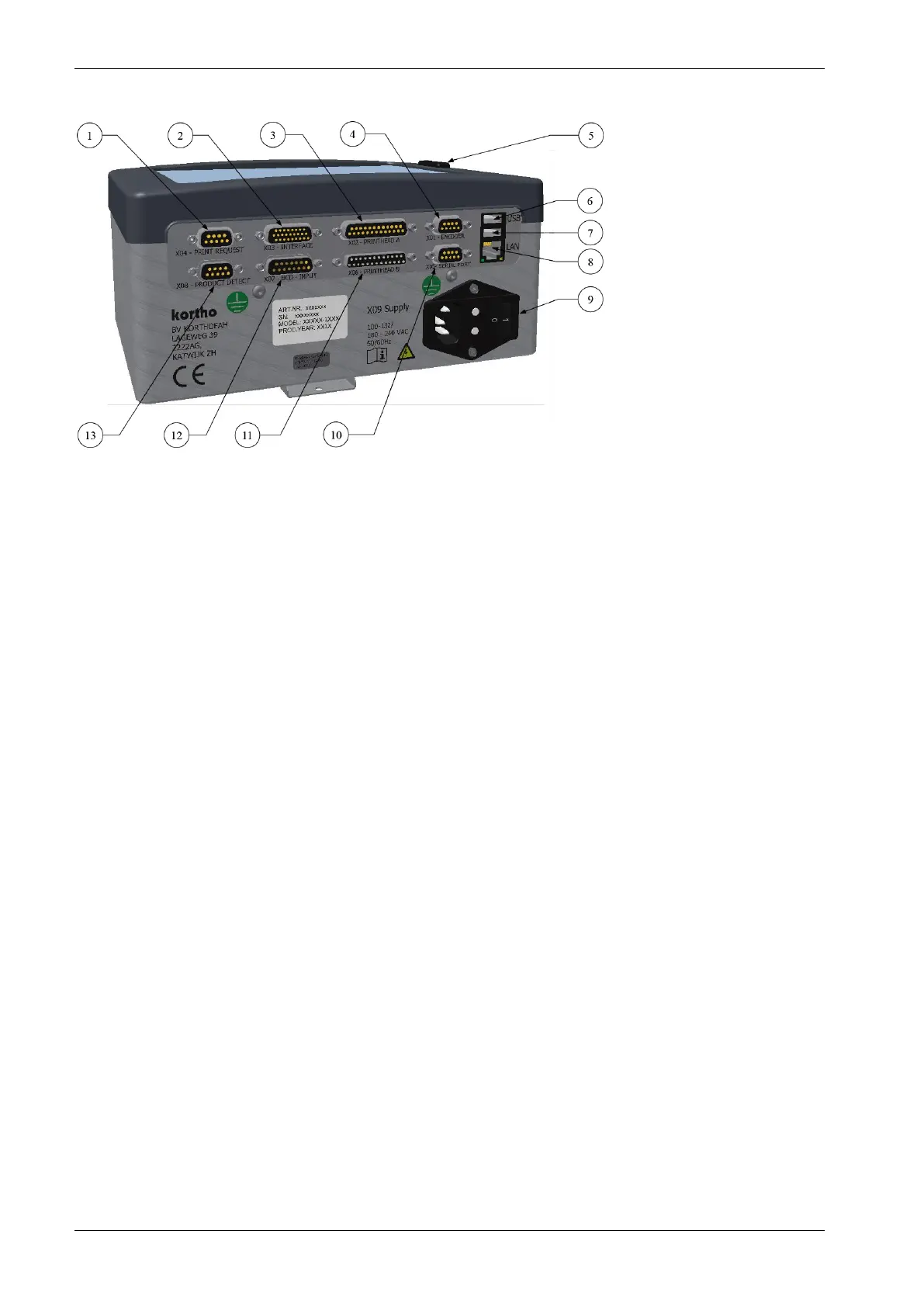

1. X04 Print request
2. X03 Input/Output
3. X02 Printhead A
4. X01 Encoder
5. USB
6. USB
7. Not connected
8. LAN connector
9. X09 Mains power switch
(including main fuses)
10. X05 RS232
11. X06 Printhead B
12. X07 BCD connector
13. X08 Print safety photocell
