Kortho GraphicJet X Series User Manual

TECHNICAL DESCRIPTION
kortho KGJ X-series H550 AE Rev.: 007
2-2
2.2 Coding unit

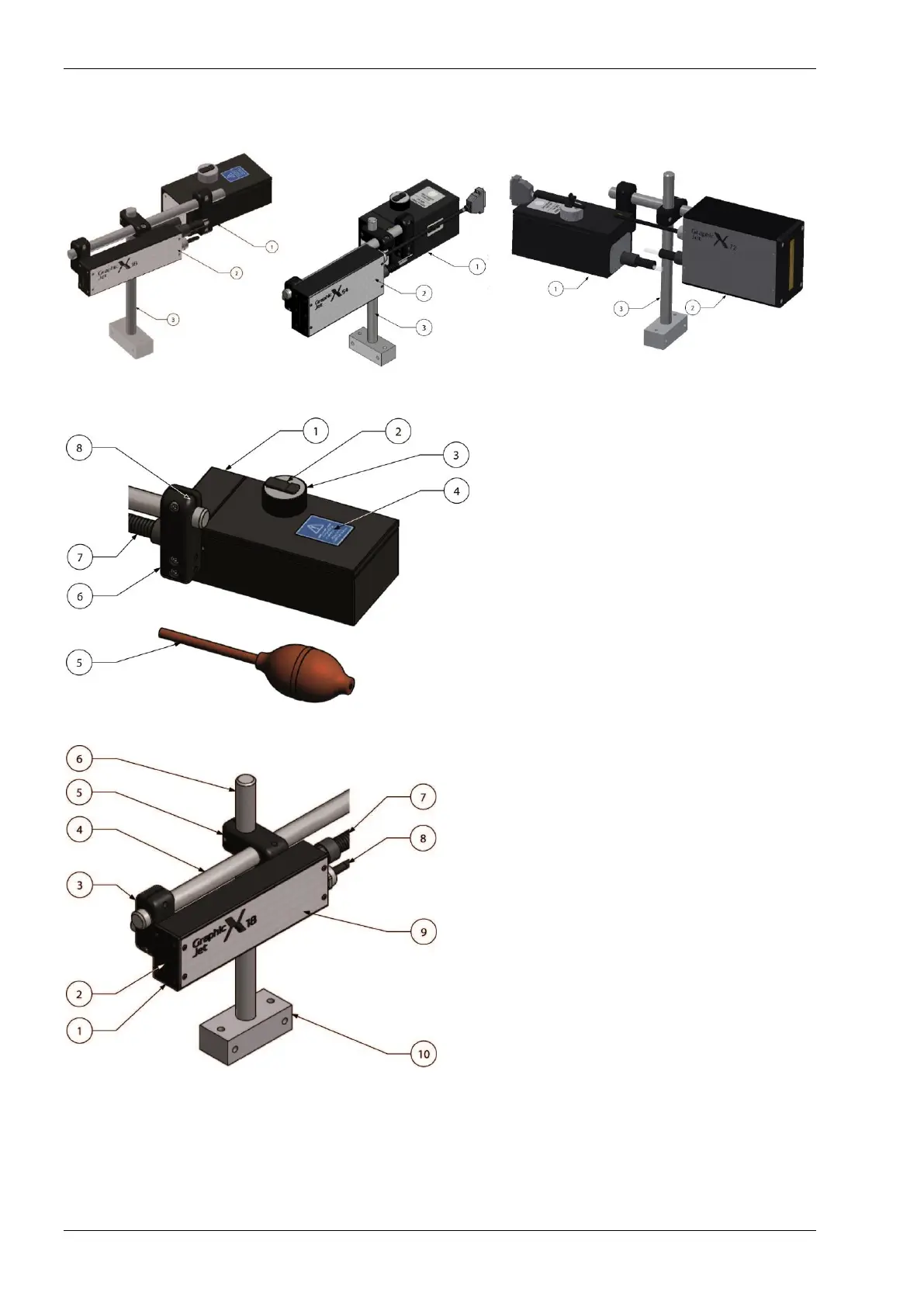

Fig. 2.2 Coding unit, parts
Fig. 2.3 Ink reservoir, parts
Fig. 2.4 Printhead housing & bracket parts
1. Ink reservoir
2. Printhead housing
3. Support
1. Ink reservoir
2. Fitting for prime bulb
3. Screw cap
4. Refill label
5. Prime bulb with tube
6. Reservoir mounting clamp
7. Flexible conduit to
printhead housing
8. Built-in spirit leveller (not
shown – positioned behind
the clamp)
1. Front plate
2. Printhead nozzle plate
3. Mounting clamp
4. Support shaft
5. Support clamp
6. Support pole
7. Flexible conduit to ink
reservoir
8. Power/data cable
9. Printhead housing
10. Support mounting block
