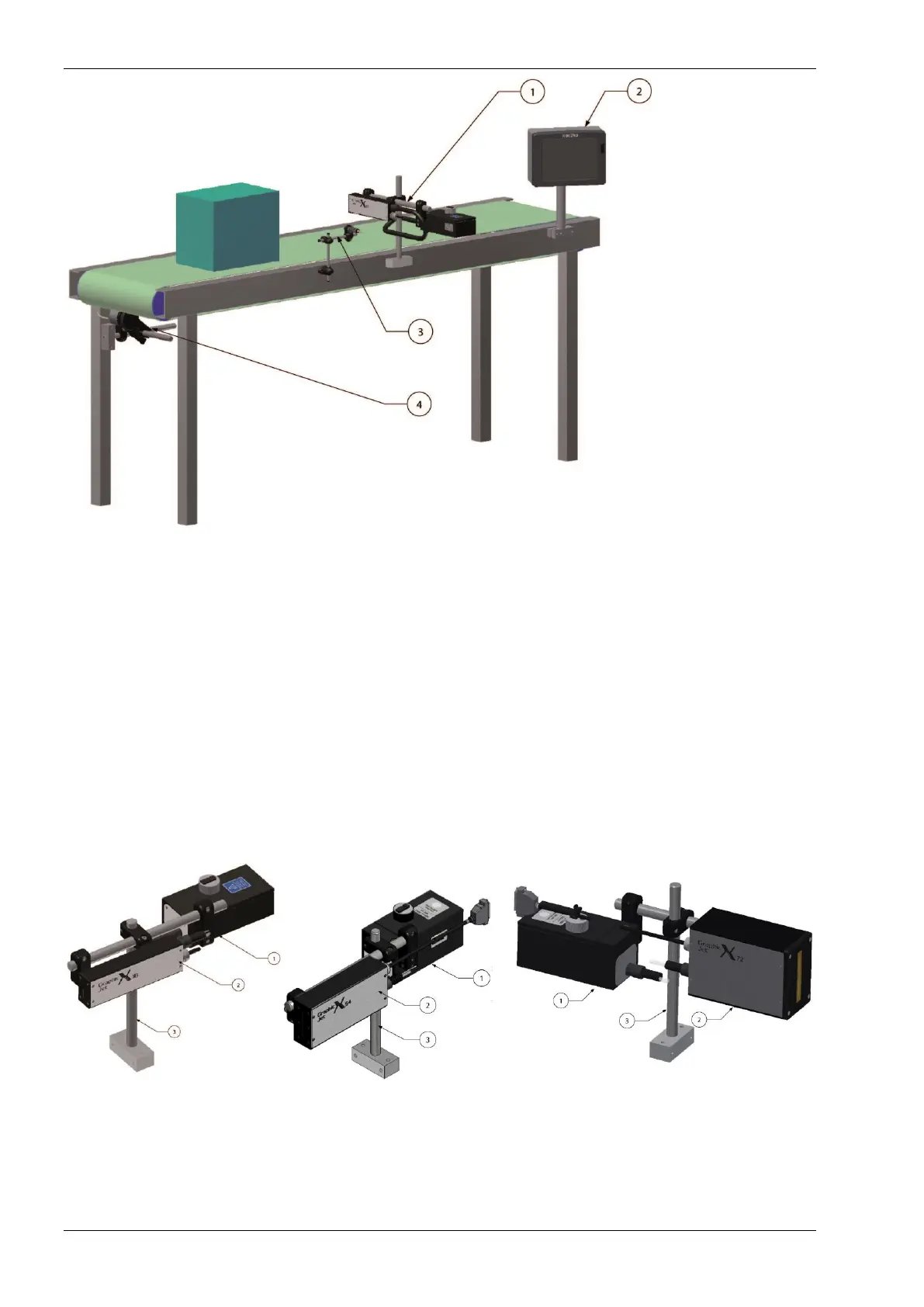

Fig. 6.1 Typical printer application
6.2 Unpacking
6.2.1 Coding unit
The coding unit consist of three main parts, the Inksystem that holds the ink used for printing, the printhead
that makes the actual print and the support set.
Fig. 6.2 Coding units X-series
1. Ink system
2. Printhead
3. Support set
1. Coding unit
2. Control unit
3. Photocell
4. Encoder
