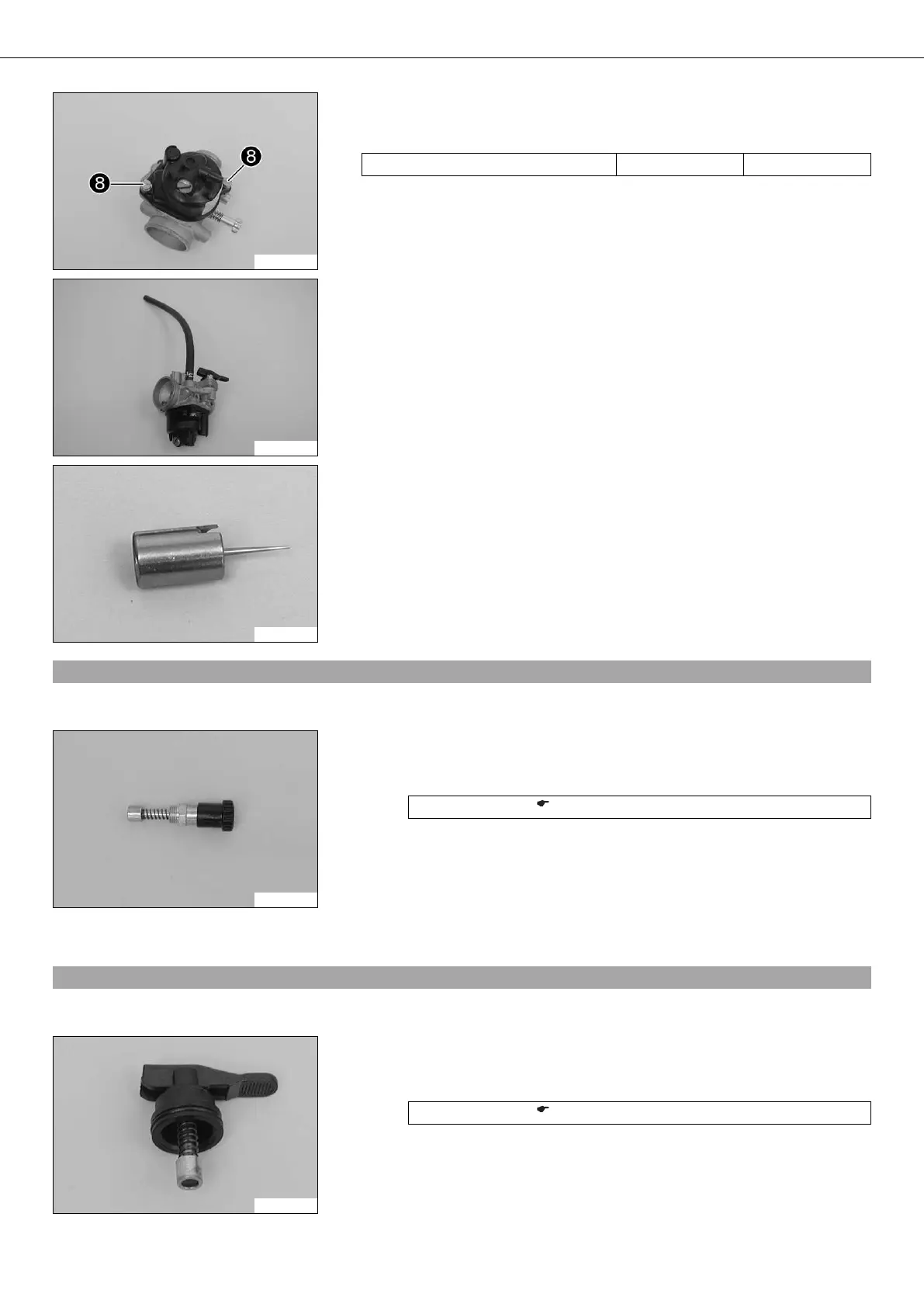

31/CARBURETOR 105
300917-11
– Position the float chamber.
– Mount and tighten screws .
Guideline
Other screws, carburetor M4 2 Nm (1.5 lbf ft)
300916-10
– Mount the fuel hose on the carburetor.
300923-10
– Position the jet needle in the throttle slide.
18.11Checking the choke slide (50 SX)
Condition
The choke slide has been removed.
300912-10
– Check the choke slide for smooth operation.
» If the choke slide is difficult to move or is dirty:
– Clean the choke slide and check its activation.
Carburetor cleaner ( p. 140)
– Check the piston of the choke slide for damage and wear.
» If the piston of the choke slide is damaged or worn:
– Change the choke slide.
– Check the rubber sleeve and lock.
» If the rubber sleeve is damaged or brittle, or if the lock is not functioning:
– Change the choke slide.
18.12Checking the choke slide (50 SX Mini)
Condition
The choke slide has been removed.
300922-10
– Check the choke slide for smooth operation.
» If the choke slide is difficult to move or is dirty:
– Clean the choke slide and check its activation.
Carburetor cleaner ( p. 140)
– Check the piston of the choke slide for damage and wear.
» If the piston of the choke slide is damaged or worn:
– Change the choke slide.
– Check the rubber sleeve and lock.
