04/SHOCK ABSORBER, SWINGARM 26
200894-10

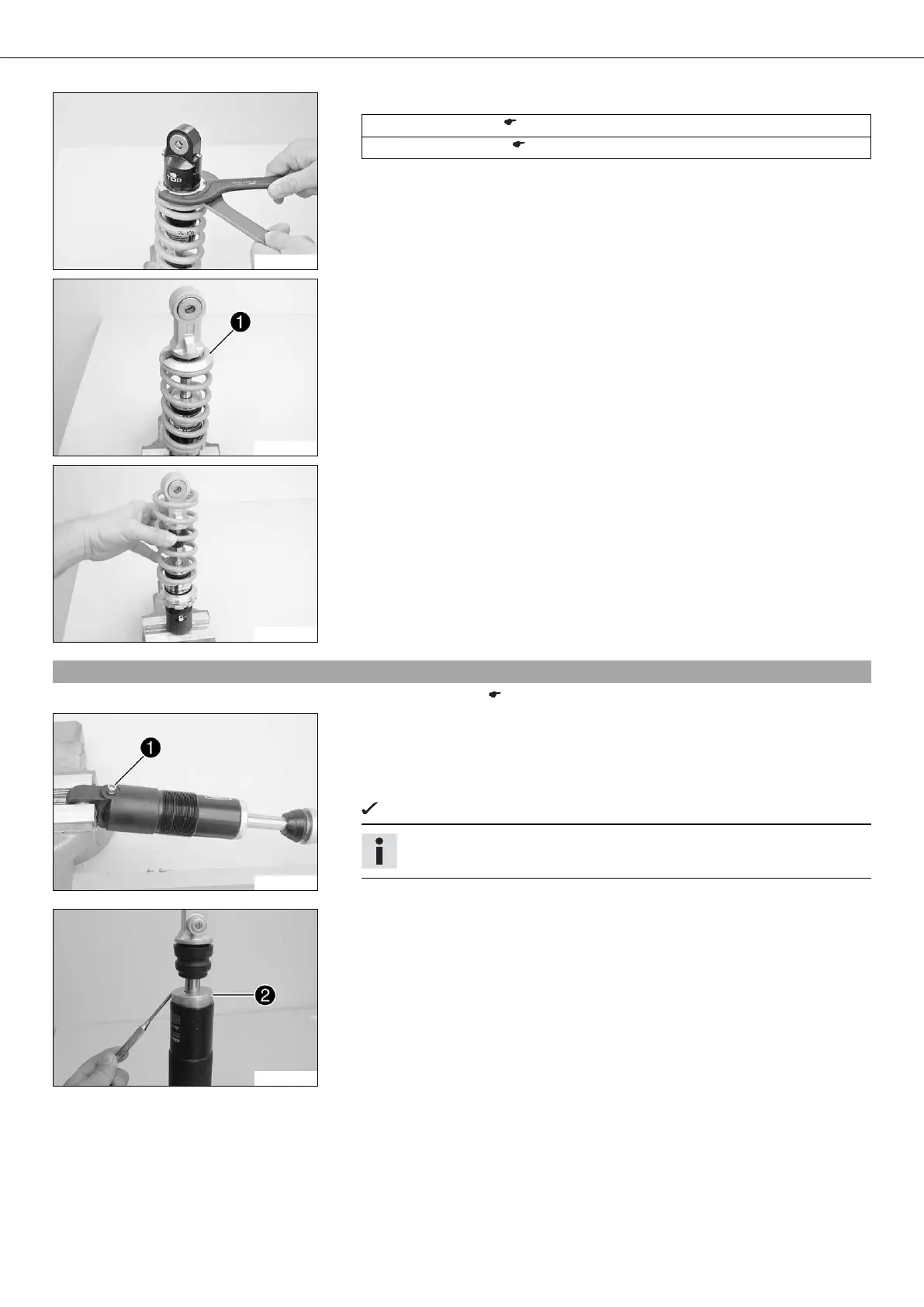

– Release the retaining ring and adjusting ring using the special tools.
Hook wrench (T304) ( p. 148)
Hook wrench (T1533) ( p. 147)
– Turn the retaining and adjusting rings all the way up.
200895-10
– Remove spring retainer .
200896-10
– Take off the spring with the retaining and adjusting rings.
6.12Disassembling the damper
– Remove the spring. ( p. 25)
200897-10
– Clamp the damper into the vise using soft jaws.
– Note down the current state of the rebound damping.
– Fully open the rebound damping.
– Remove screw .
The nitrogen pressure dissipates.
Info
The screw of the filling port must be in the highest position.
– Let the oil drain.
300432-10
– Remove locking cap .
