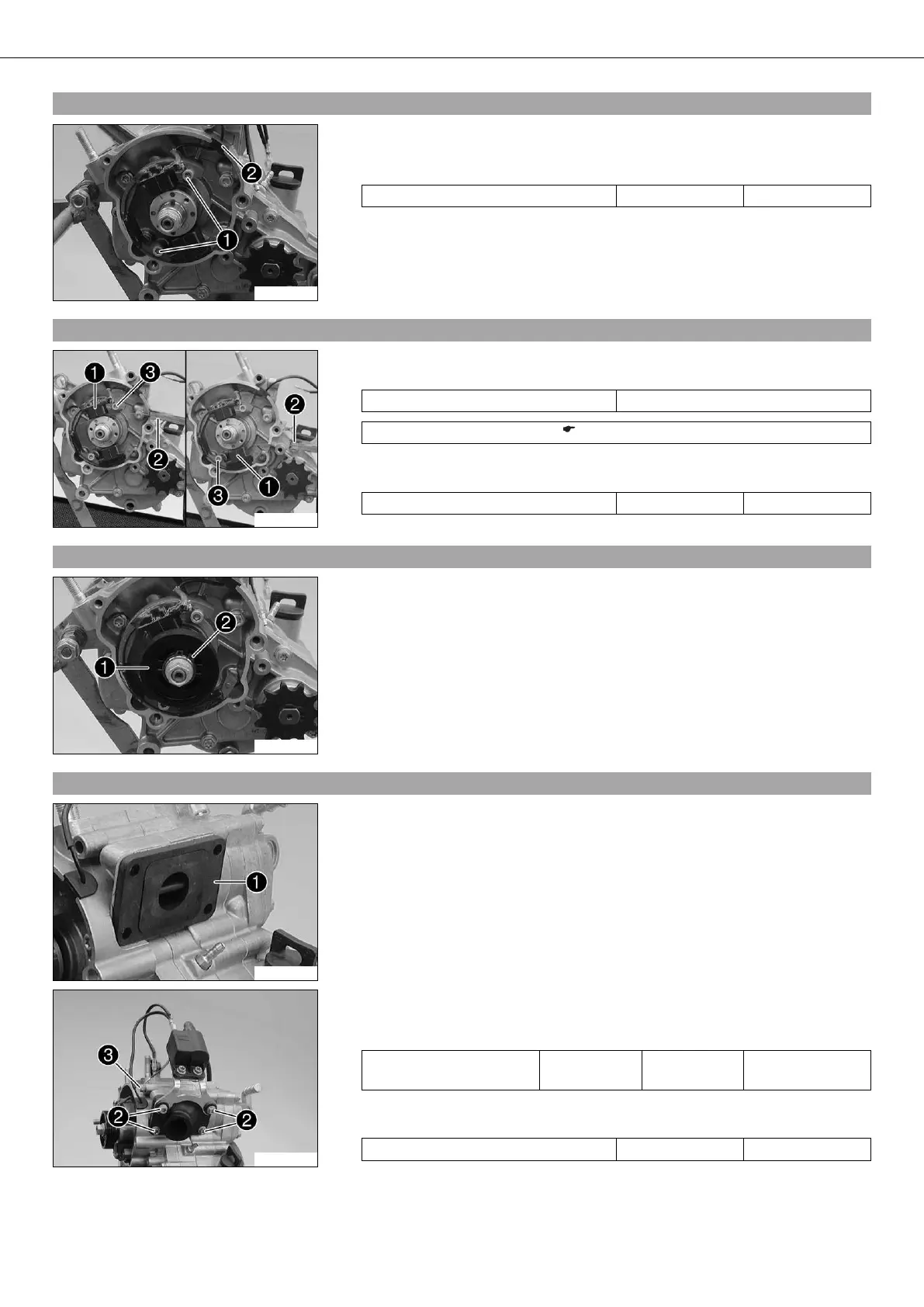

30/ASSEMBLING THE ENGINE 89
17.18Installing the stator
300473-11
– Position the stator.
– Mount screws but do not tighten yet.
Guideline
Screw, stator clamp M5 6 Nm (4.4 lbf ft)
– Position cable support sleeve .
17.19Adjusting the stator/rotor distance
300474-10
– Adjust the distance between stator and rotor using special tool .
Guideline
Distance between rotor/stator 0.35 mm (0.0138 in)
Feeler gauge (59029041100) ( p. 146)
– Tighten screws .
Guideline
Screw, stator clamp M5 6 Nm (4.4 lbf ft)
17.20Installing the oil pump drive gear (50 SX Mini)
300472-11
– Position oil pump drive gear .
– Mount lock ring .
17.21Installing the reed valve housing, ignition coil, and intake flange
300471-10
– Position the gasket.
– Position reed valve housing in the engine case opening.
300469-10
– Position the ignition coil and intake flange.
– Mount and tighten screws .
Guideline
Screw, intake flange M6 5 Nm
(3.7 lbf ft)
Loctite
®
243™
– Mount and tighten screw with the cable of the ignition coil.
Guideline
Screw, engine case M6x55 10 Nm (7.4 lbf ft)
