01/FORK, TRIPLE CLAMP 15
700524-01

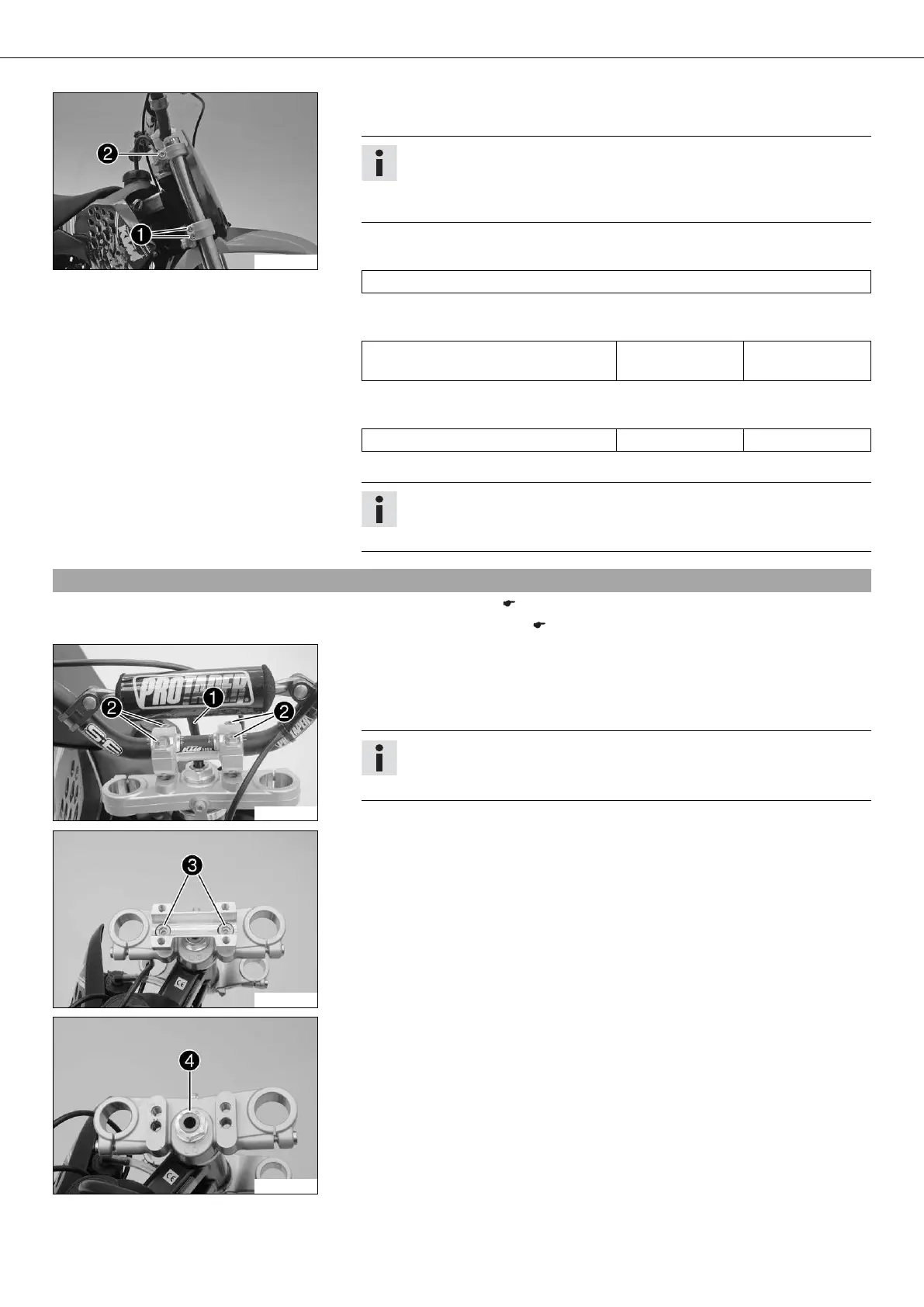

– Loosen screws on the lower triple clamp.
– Loosen screw on the upper triple clamp.
Info
Loosen the screws to the point where the fork legs can be moved without
damaging it.
Make the adjustments first on one fork leg and then on the other.
– Adjust the fork overhang with the upper triple clamp.
Guideline
10… 17 mm (0.39… 0.67 in)
– Tighten screw .
Guideline
Screw, top triple clamp M8 25 Nm
(18.4 lbf ft)
– Fully tighten screws .
Guideline
Screw, bottom triple clamp M6 10 Nm (7.4 lbf ft)
– Repeat the adjustment on the other fork leg.
Info
The setting of the vehicle level via the fork legs must be identical on both
fork legs.
4.9Removing the lower triple clamp
– Remove the fork legs. ( p. 9)
– Dismount the front fender. ( p. 44)
300736-10
– Remove the fuel tank breather .
– Remove screws .
– Remove the handlebar clamp.
– Remove the handlebar and lay it to one side.
Info
Protect the motorcycle and its attachments from damage by covering them.
Do not bend the cables and lines.
300737-10
– Remove screws .
– Take off the handlebar support.
300738-11
– Remove nut .
– Take off the upper triple clamp.
