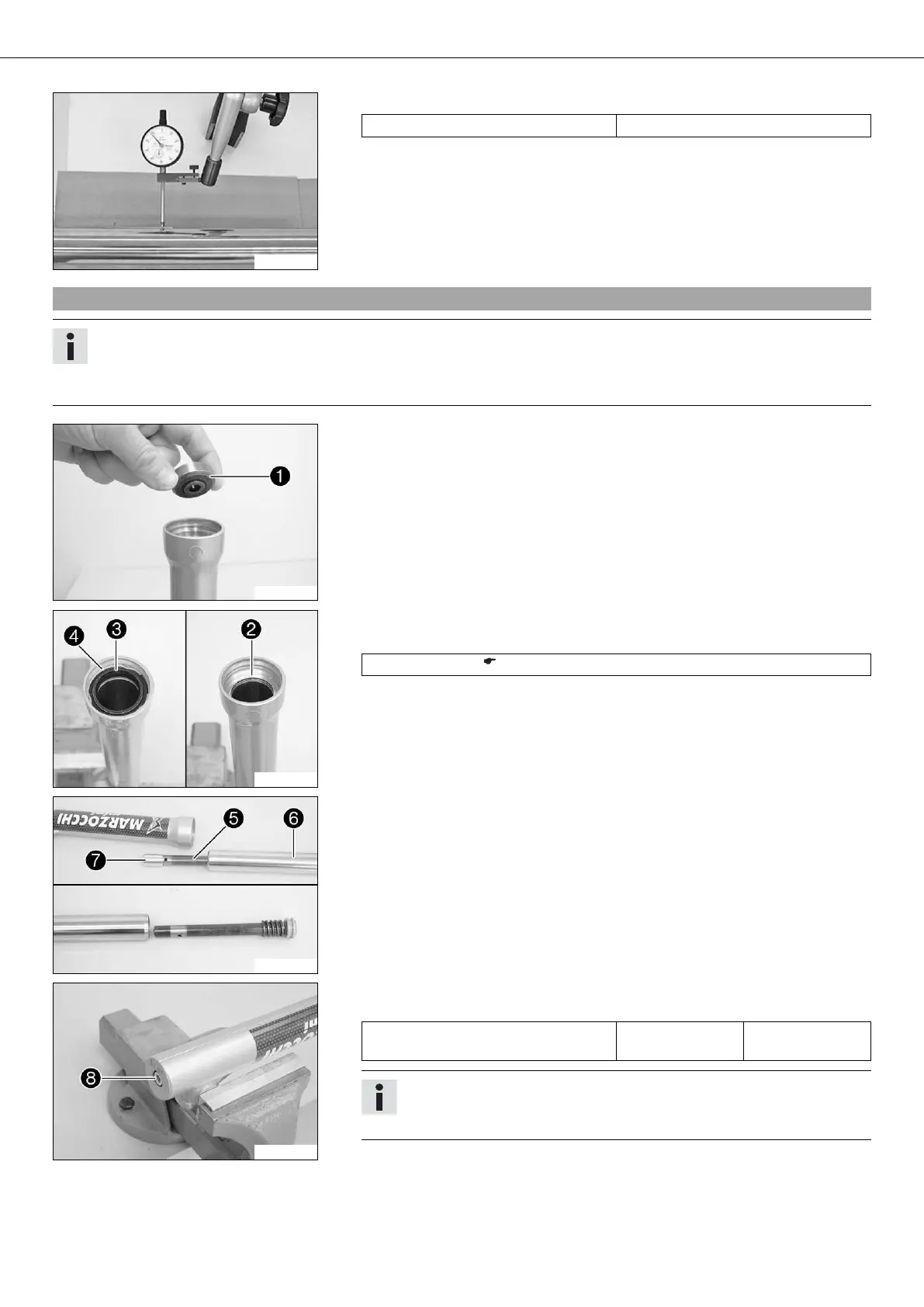

01/FORK, TRIPLE CLAMP 13
200685-10
– Measure the run-out of the inner tube.
Inner tube run-out ≤ 0.10 mm (≤ 0.0039 in)
» If the measured value is greater than the specified value:
– Change the inner tube.
4.7Assembling the fork legs
Info
The operations are the same on both fork legs.
The only difference between the two fork legs lies in the piston ring of the piston rod, which is only mounted on the left fork
leg.
201184-10
– Position washer in the outer tube with the collar facing forward.
201181-11
– Mount washer .
– Lubricate seal ring and press it in all the way.
Lubricant (T511) ( p. 140)
– Mount lock ring .
201180-11
– Slide piston rod into inner tube .
– Position damping bush .
– Slide the inner tube with the piston rod into the outer tube.
201179-11
– Mount and tighten screw with the seal ring.
Guideline
Screw, piston rod M8x1.25 30 Nm
(22.1 lbf ft)
Info
The washer and damping bush are centered by the screw.
To prevent the piston rod from turning, pull out the inner tube.
