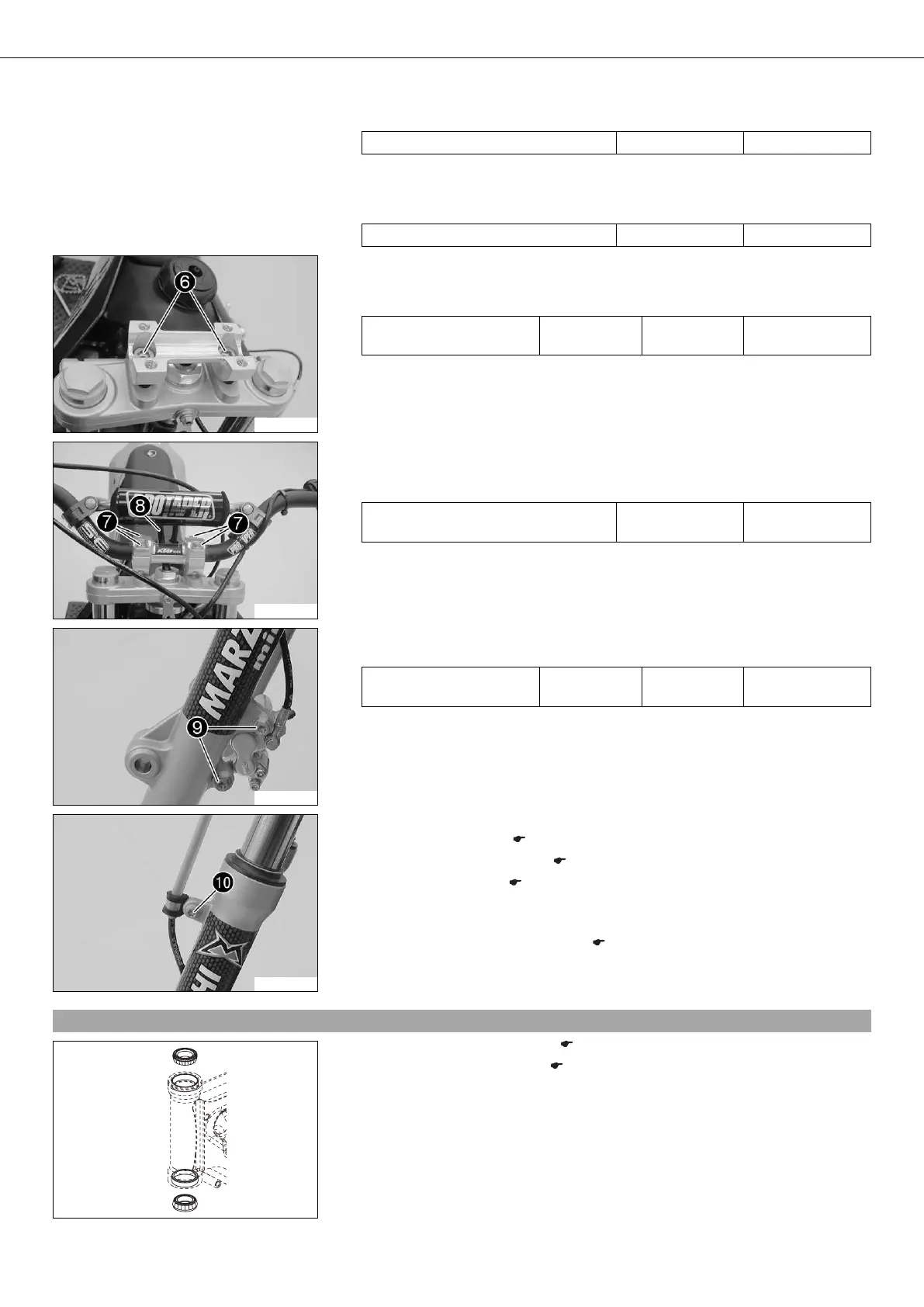

01/FORK, TRIPLE CLAMP 17
– Tighten screws .
Guideline
Screw, bottom triple clamp M6 10 Nm (7.4 lbf ft)
– Repeat these steps on the opposite side.
– Tighten nut .
Guideline
Nut, steering stem M20x1.5 10 Nm (7.4 lbf ft)
300742-10
– Position the handlebar support.
– Mount and tighten screws .
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
300743-10
– Position the handlebar with handlebar clamps.
– Mount and tighten screws .
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
– Position the fuel tank breather .
300732-12
– Position the brake caliper, fit and tighten the screws  with washers.
Guideline
Screw, front brake caliper M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
300731-12
– Position the brake line. Put the clamp on, and mount and tighten screws .
– Install the front fender. ( p. 44)
– Install the start number plate. ( p. 44)
– Install the front wheel. ( p. 46)
– Check that the wiring harness, throttle cables and brake line have freedom of move-
ment and are routed correctly.
– Check play of steering head bearing. ( p. 18)
4.11Greasing the steering head bearing
400563-01
– Remove the lower triple clamp. ( p. 15)
– Install the lower triple clamp. ( p. 16)
