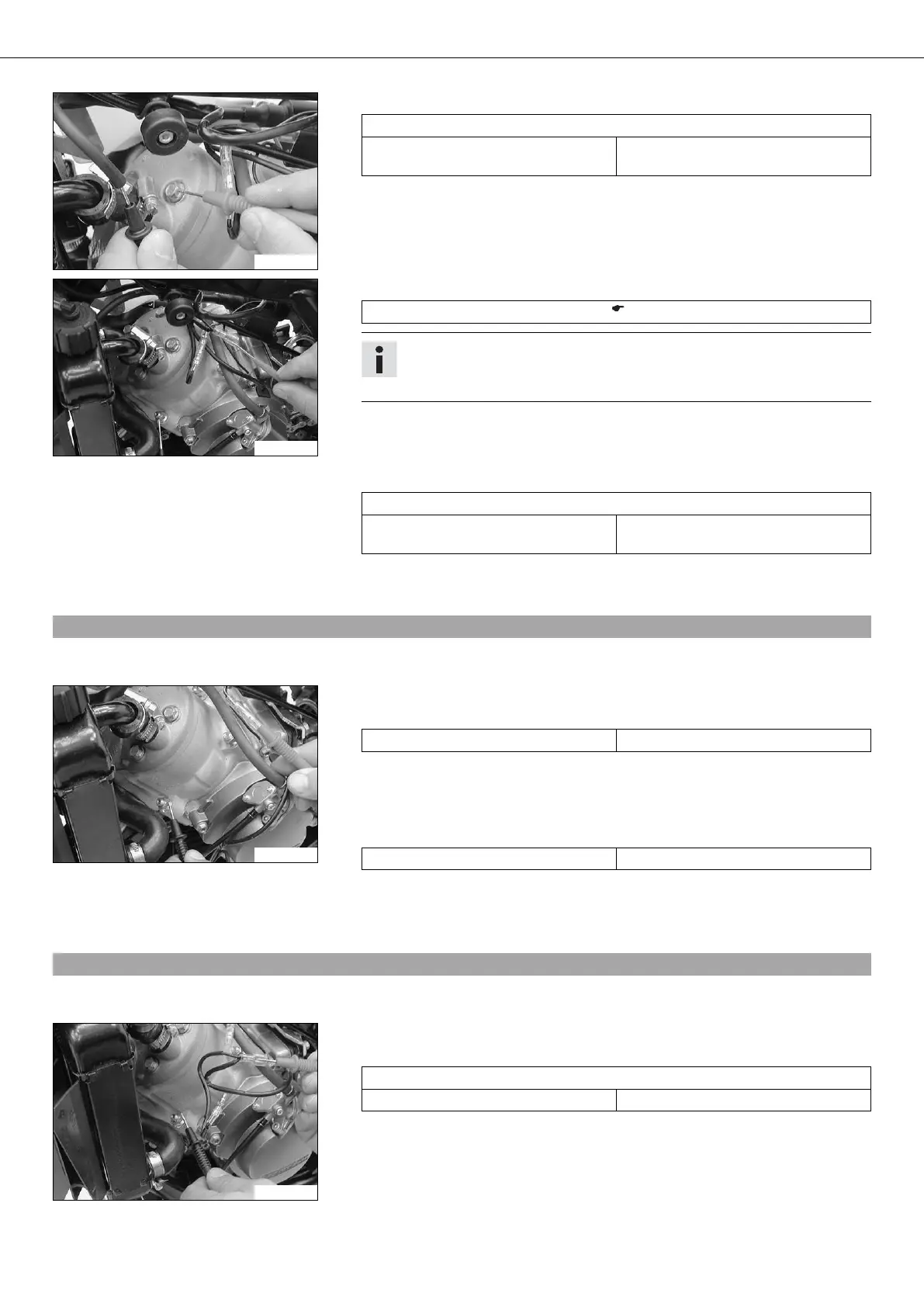

39/IGNITION SYSTEM 120
300933-10
– Measure high voltage output of ignition coil against ground.
Ignition coil
Resistance of secondary winding
at: 20 °C (68 °F)
2.025… 2.475 kΩ
» If the measured value differs from the setpoint value:
– Change the ignition coil.
– Fit and connect spark plug connector.
300960-10
– Connect the special tool to the multimeter.
Peak voltage adapter (58429042000) ( p. 145)
Info
When using the peak voltage adapter, the measurement range of the multi-
meter must be set to DCV.
– Disconnect the ignition coil.
– Connect the black measuring lead of the special tool to ground. Connect the red
measuring lead to the input plug of the ignition coil.
– Activate the kickstarter.
Ignition coil
Ignition coil input connector -
ground
≥ 150 V
» If the displayed value does not equal the specification:
– Change the ignition coil.
22.4Checking the kill switch
Condition
Fuel tank removed.
300986-10
– Disconnect ignition coil and kill switch.
– Measure resistance on cable of kill switch to ground.
Resistance - kill switch not activated ∞
» If the displayed value does not equal the specification:
– Check the wiring harness.
– Change the kill switch.
– Activate the kill switch.
Resistance - kill switch activated 0 Ω
» If the displayed value does not equal the specification:
– Check the wiring harness.
– Change the kill switch.
22.5Checking the alternator
Condition
The fuel tank has been removed.
300985-10
– Disconnect the ignition coil and kill switch.
– Measure the resistance of the alternator against ground.
Alternator
Resistance at: 20 °C (68 °F) 450… 500 Ω
» If the measured value does not equal the specified value:
– Check the wiring harness.
– Change the alternator.
