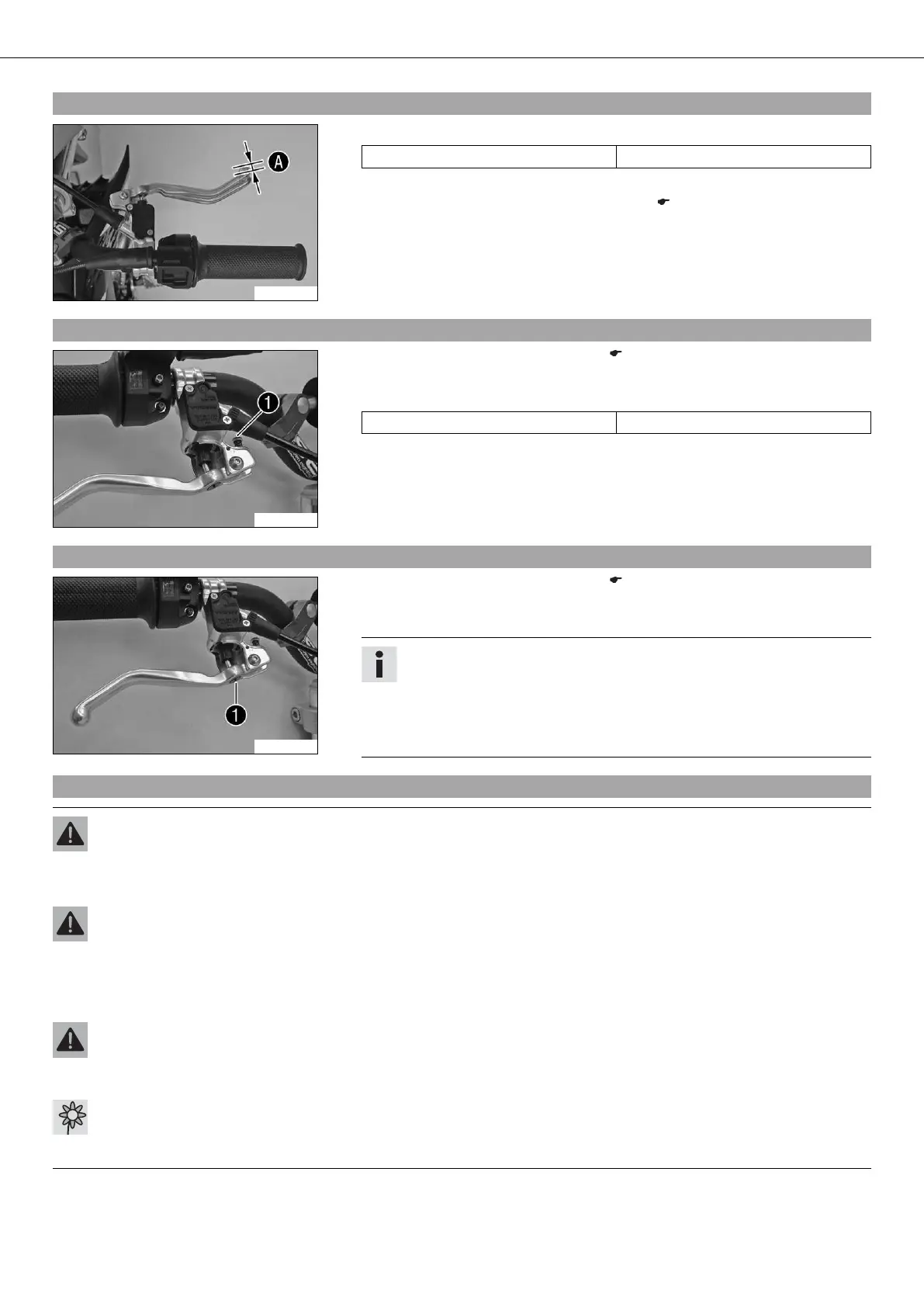

13/BRAKE SYSTEM 53
13.1Checking the play of the hand brake lever
700486-01
– Push the hand brake lever forwards and check the play .
Play of hand brake lever 3… 5 mm (0.12… 0.2 in)
» If the play does not meet specifications:
– Adjust the play of the hand brake lever. ( p. 53)
13.2Adjusting the play of the hand brake lever
700487-01
– Check the play of the hand brake lever. ( p. 53)
– Adjust the play of the hand brake lever with the adjusting screw .
Guideline
Play of hand brake lever 3… 5 mm (0.12… 0.2 in)
13.3Adjusting the basic position of the hand brake lever
700528-01
– Check the play of the hand brake lever. ( p. 53)
– Adjust the basic position of the hand brake lever with the adjusting screw to the
rider's hand size.
Info
Turn the adjusting screw clockwise to increase the distance between the
hand brake lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease the distance between
the hand brake lever and the handlebar.
The range of adjustment is limited.
13.4Checking the front brake fluid level
Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system
is leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding.
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid gets into your eyes, rinse thoroughly with water and contact a doctor immediately.
Warning
Danger of accidents Reduced braking effect caused by old brake fluid.
– Change the brake fluid of the front and rear brakes according to the service schedule.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
