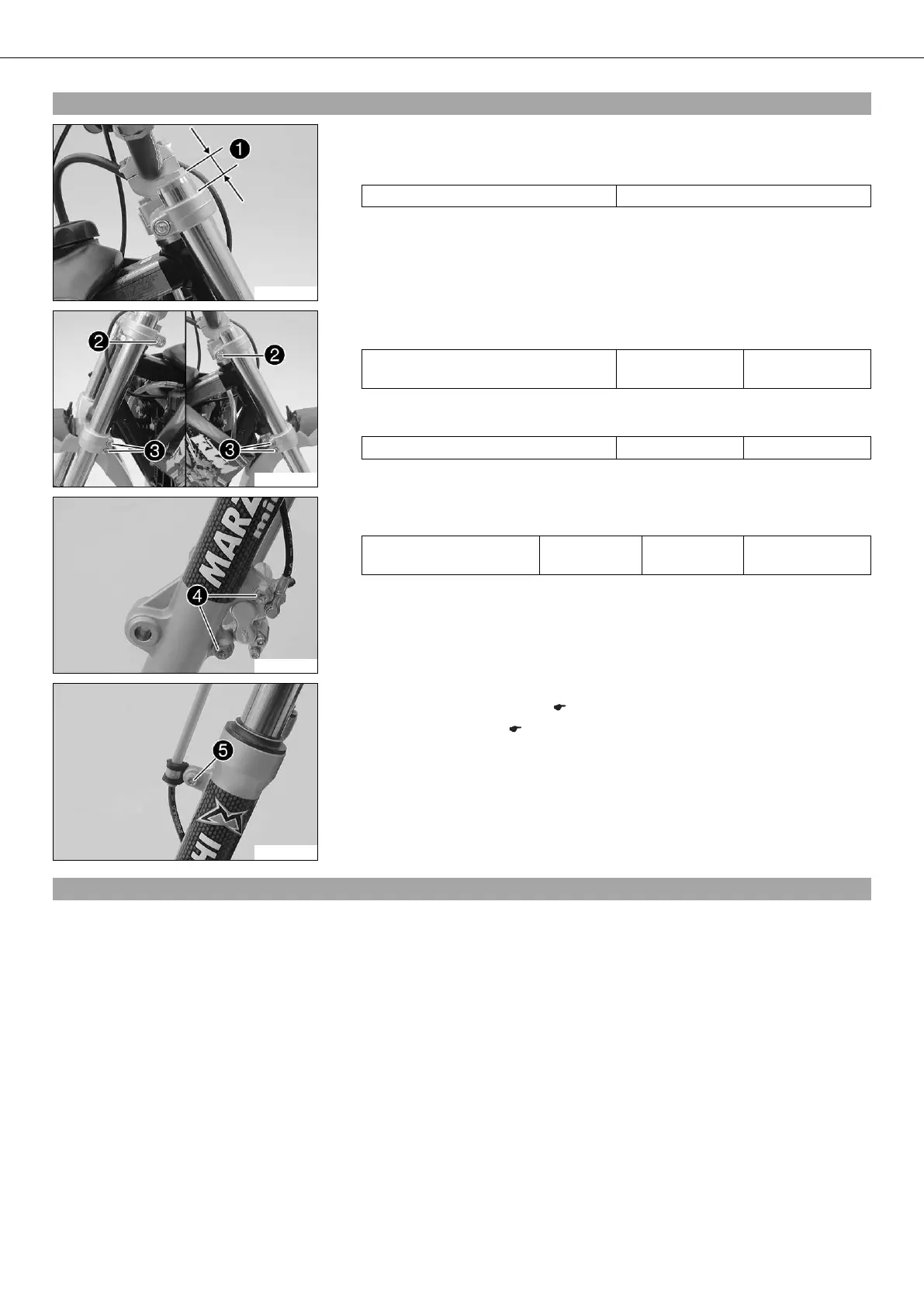

01/FORK, TRIPLE CLAMP 10

4.3Installing the fork legs

300734-10

– Position the fork legs.

– Adjust fork overhang .

Guideline

Upper fork projection 10… 17 mm (0.39… 0.67 in)

300733-11

– Tighten screw .

Guideline

Screw, top triple clamp M8 25 Nm

(18.4 lbf ft)

– Tighten screws .

Guideline

Screw, bottom triple clamp M6 10 Nm (7.4 lbf ft)

300732-11

– Position the brake caliper, fit and tighten the screws  with washers.

Guideline

Screw, front brake caliper M8 20 Nm

(14.8 lbf ft)

Loctite

®

243™

300731-11

– Position the brake line. Put the clamp on, and mount and tighten screws .

– Install the start number plate. ( p. 44)

– Install the front wheel. ( p. 46)

4.4Servicing fork

Condition

The fork legs have been removed.

Table of Contents

Questions and Answers:

C
Clayton HowardAug 5, 2025
Why does my KTM Motorcycle engine have too little power?
- J
  James BoydAug 5, 2025
  If your KTM Motorcycle engine has too little power, several factors could be responsible. A fuel feed interruption could be the problem, so check the fuel tank breather and clean the fuel tap. A very dirty air filter can also cause this issue, so clean the air filter. Inspect the exhaust system for leaks or deformation and replace the glass fiber yarn filling in the main silencer if it's insufficient. The ignition system could be defective, so check the ignition coil and spark plug connector. Also, examine the diaphragm and reed valve housing for damage. Excessive wear might necessitate an engine overhaul. Lastly, an improperly adjusted clutch engagement speed can cause power loss, so check the clutch engagement speed.
P
Patrick BuckleyAug 13, 2025
What to do if my KTM Motorcycle engine stalls or is popping into the carburetor?
- A
  Adam KempAug 13, 2025
  If your KTM Motorcycle engine stalls or pops into the carburetor, it could be due to a few reasons. First, ensure the engine isn't running out of fuel by turning the knurled screw on the fuel tap all the way counterclockwise and filling up the fuel tank. Also, check for air leaks by inspecting the intake flange and carburetor for tightness. Clean the socket connector and treat it with contact spray if the socket connector or ignition coil is loose or oxidized.
G
Glenda BerryAug 21, 2025
Why does my KTM Motorcycle engine have no idle?
- K
  Karen WangAug 21, 2025
  If your KTM Motorcycle engine won't idle, there are several potential causes. The idling jet might be blocked, so check/set the carburetor components. Also, the adjusting screws on the carburetor could be distorted, so adjust the idle speed. A defective spark plug can also cause idling issues, so change the spark plug. Check the ignition coil and spark plug connector because the ignition system could be defective. Finally, if the carburetor is running over because the float needle is dirty or worn, check/set the carburetor components.

KTM 50 SX 2010 Specifications

General

Front Brake	Disc brake
Rear Brake	Disc brake
Cooling System	Liquid cooled
Fuel Tank Capacity	2.3 L
Starter	Kickstarter
Rear Brake Diameter	160 mm
Engine Type	Single-cylinder, 2-stroke
Displacement	49 cc
Bore x Stroke	39.5 mm x 40.0 mm
Rear Suspension	Monoshock
Frame	Steel

Summary
