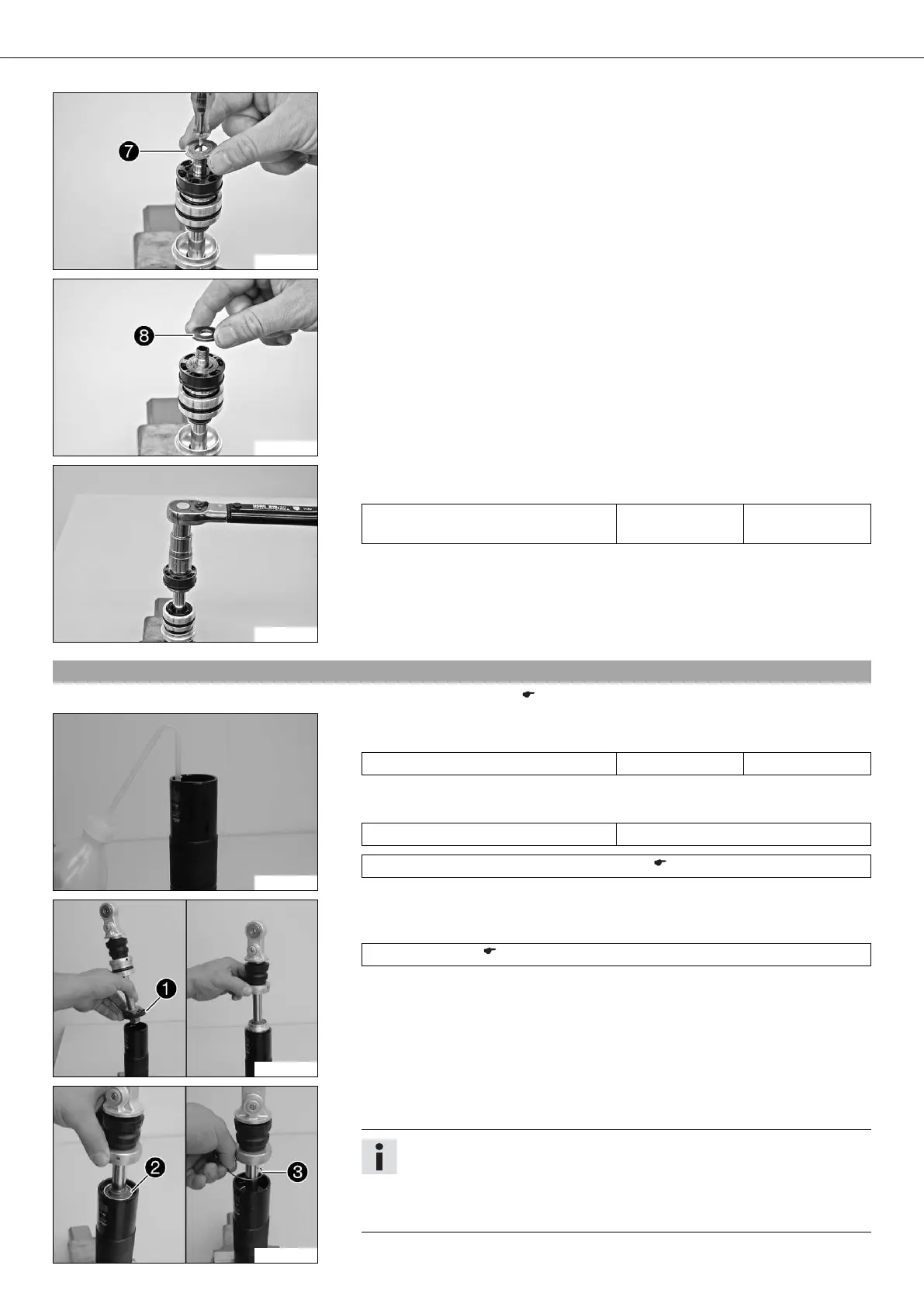

04/SHOCK ABSORBER, SWINGARM 32
300416-10
– Mount rebound shim stack with the smaller disks facing up.
300417-10
– Mount supporting plate .
300418-10
– Mount and tighten the nut.
Guideline
Nut, piston rod M10x1 30 Nm
(22.1 lbf ft)
6.18Assembling the damper (50 SX)
– Assemble the piston rod. ( p. 31)
300441-10
– Mount and tighten the screw of the filling port with a new sealing washer.
Guideline
Screw, filling port M5 3 Nm (2.2 lbf ft)
– Fill the damper cartridge.
Guideline
Fluid level below top edge 55 mm (2.17 in)
Shock absorber oil (SAE 2.5) (50180342S1) ( p. 139)
300442-10
– Mount and oil piston ring in the groove of the piston.
– Grease the O-ring of the gasket support.
Lubricant (T158) ( p. 140)
– Carefully mount the piston rod.
300443-10
– Push in seal ring retainer .
– Mount lock ring .
Info
First insert the closed part of the lock ring and then the two ends to pre-
vent the surface of the damper cartridge under the groove from becoming
scratched and the O-ring from being damaged during installation or opera-
tion.
