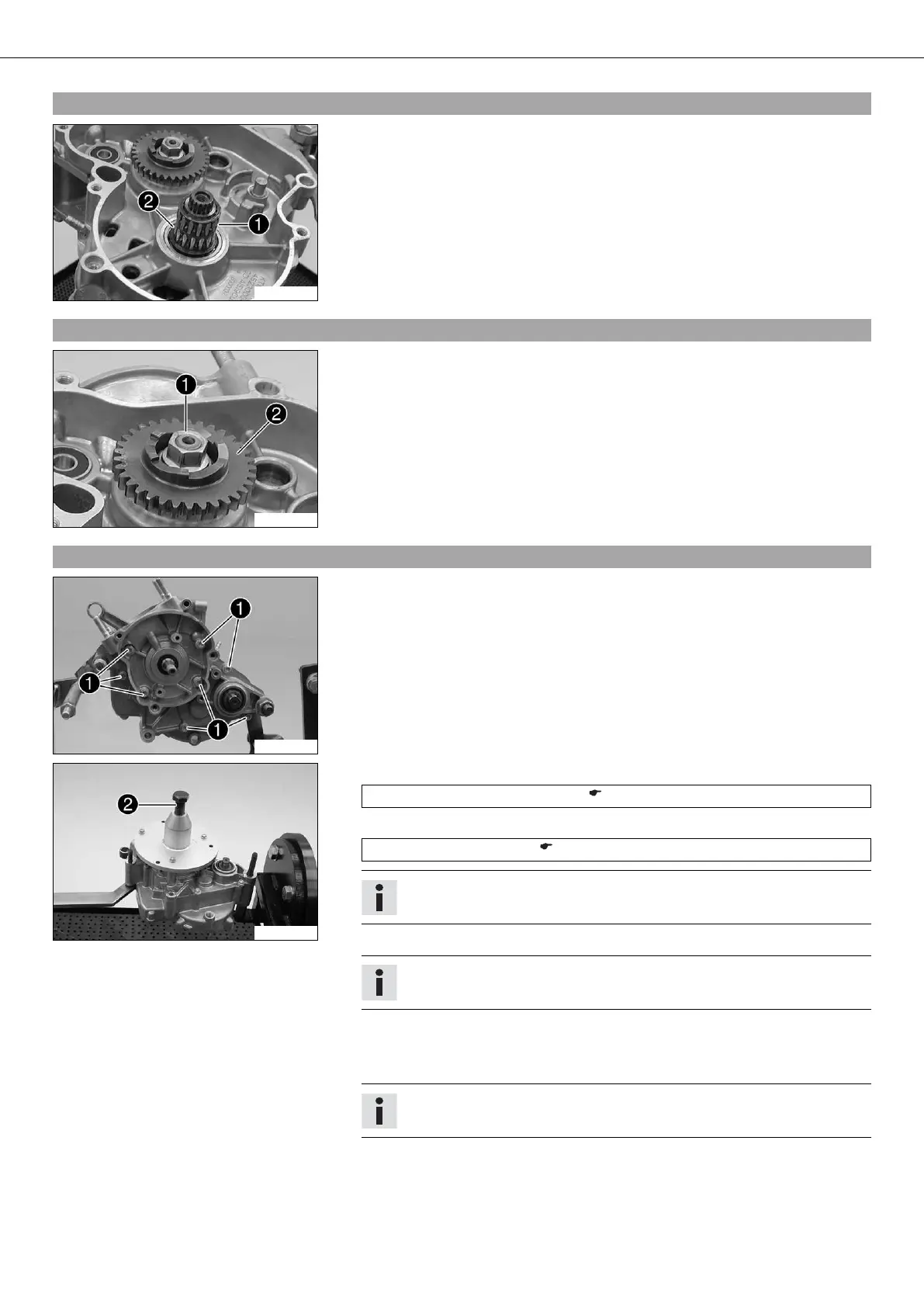

30/DISASSEMBLING THE ENGINE 74
15.24Removing the clutch bearing
300486-11
– Remove needle bearings and collar bushing .
15.25Removing the primary gear
300494-10
– Remove nut .
– Take off primary gear .
– Remove the spring washer and washer.
15.26Removing the left engine case
300498-10
– Remove screws .
– Swing the left section of the engine case up and remove the screw connection of
the engine holder.
300987-10
– Mount the special tool on the crankshaft.
Protecting sleeve (45229090000) ( p. 144)
– Mount the special tool.
Extractor (45229048000) ( p. 143)
Info
Use the hole labeled 452.
– Separate the engine case sections by screwing in screw .
Info
Ensure that the engine case section is raised evenly.
– Take off the left section of the engine case.
– Remove the special tools.
– Remove the spacer of the countershaft with the O-ring.
Info
The spacer of the countershaft usually remains in the engine case.
