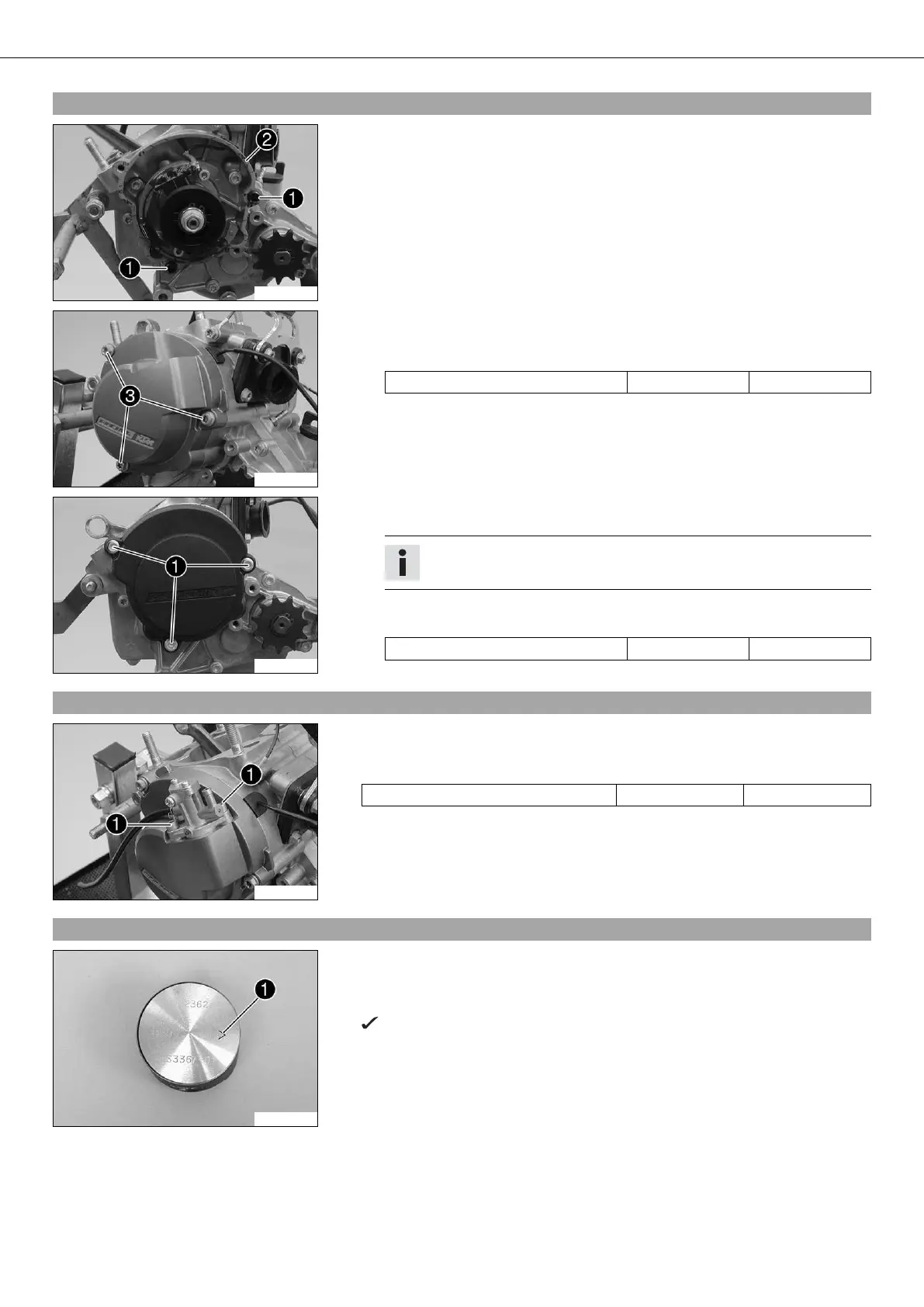

30/ASSEMBLING THE ENGINE 90
17.22Installing the alternator cover
300470-10
(50 SX Mini)
– Mount dowels .
– Position alternator cover gasket .
300468-11
– Position the alternator cover.
– Mount and tighten screws .
Guideline
Screw, alternator cover M6 6 Nm (4.4 lbf ft)
300851-10
(50 SX)
– Position the alternator cover.
Info
Ensure that dowels are seated correctly.
– Mount and tighten screws .
Guideline
Screw, alternator cover M6 6 Nm (4.4 lbf ft)
17.23Installing the oil pumps (50 SX Mini)
300467-10
– Position the oil pump.
– Mount and tighten screws .
Guideline
Screw, oil pump M5 6 Nm (4.4 lbf ft)
17.24Installing the piston
300511-10
– Cover the engine case opening with a cloth.
– Oil the conrod bearing and position it in the connecting rod.
– Position the piston.
Piston marking  must face the exhaust side.
