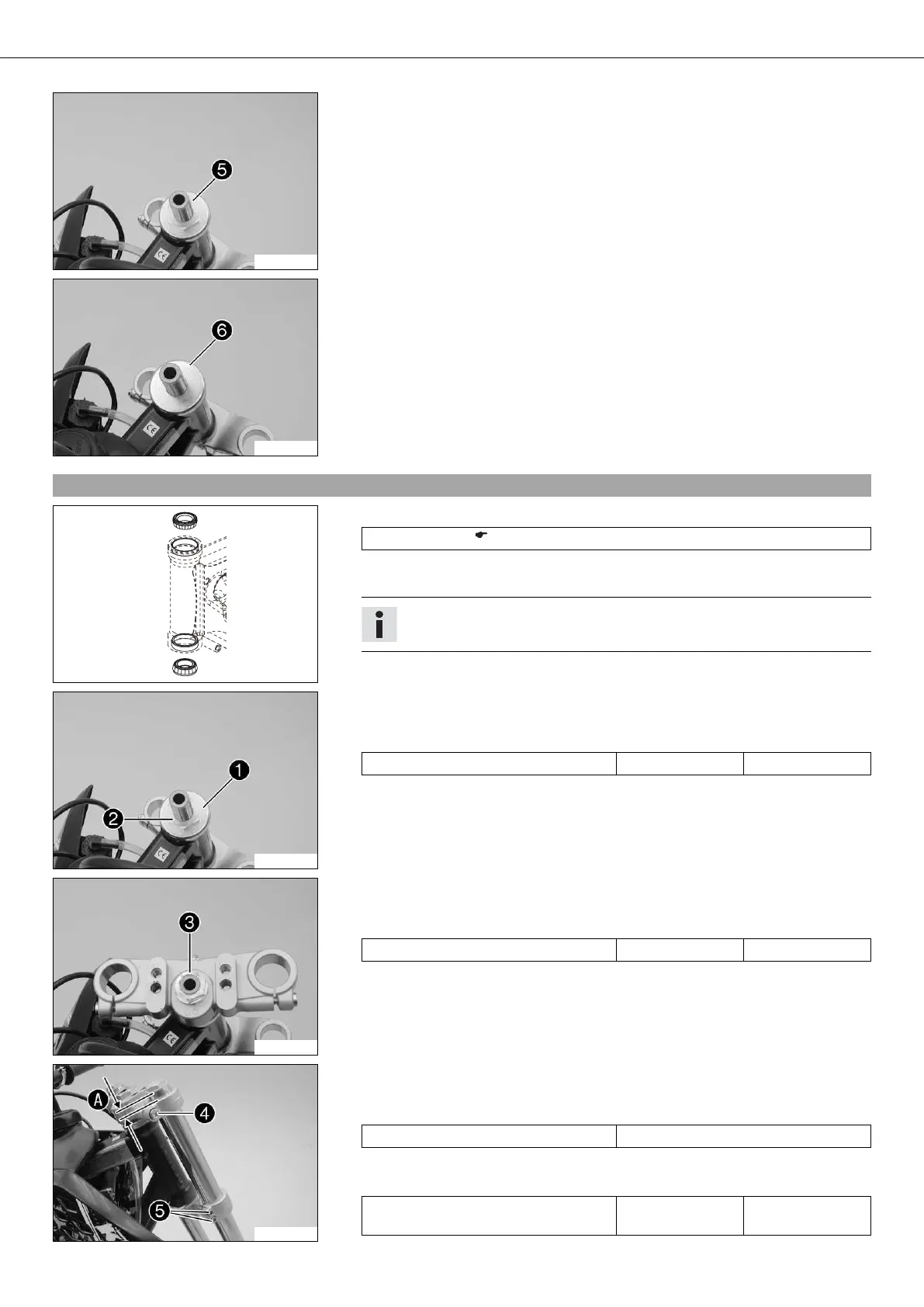

01/FORK, TRIPLE CLAMP 16
300739-10
– Remove nut .
300740-10
– Remove protector ring .
– Remove the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
4.10Installing the lower triple clamp
400563-01
– Clean the bearing and sealing elements, check for damage, and grease.
Long-life grease ( p. 140)
– Insert the lower triple clamp with the steering stem. Mount the upper steering head
bearing.
Info
Check that the O-rings of the steering head seal are correctly positioned.
300739-11
– Push on protective ring .
– Mount and tighten nut .
Guideline
Steering head nut M20x1.5 10 Nm (7.4 lbf ft)
300738-10
– Position the upper triple clamp.
– Mount nut , but do not tighten it yet.
Guideline
Nut, steering stem M20x1.5 10 Nm (7.4 lbf ft)
300741-10
– Position the fork leg.
– Adjust fork overhang .
Guideline
Upper fork projection 10… 17 mm (0.39… 0.67 in)
– Tighten screw .
Guideline
Screw, top triple clamp M8 25 Nm
(18.4 lbf ft)
