04/SHOCK ABSORBER, SWINGARM 30
6.16Installing the heim joint
Info
The operations are the same on the upper and lower heim joints.
200581-10

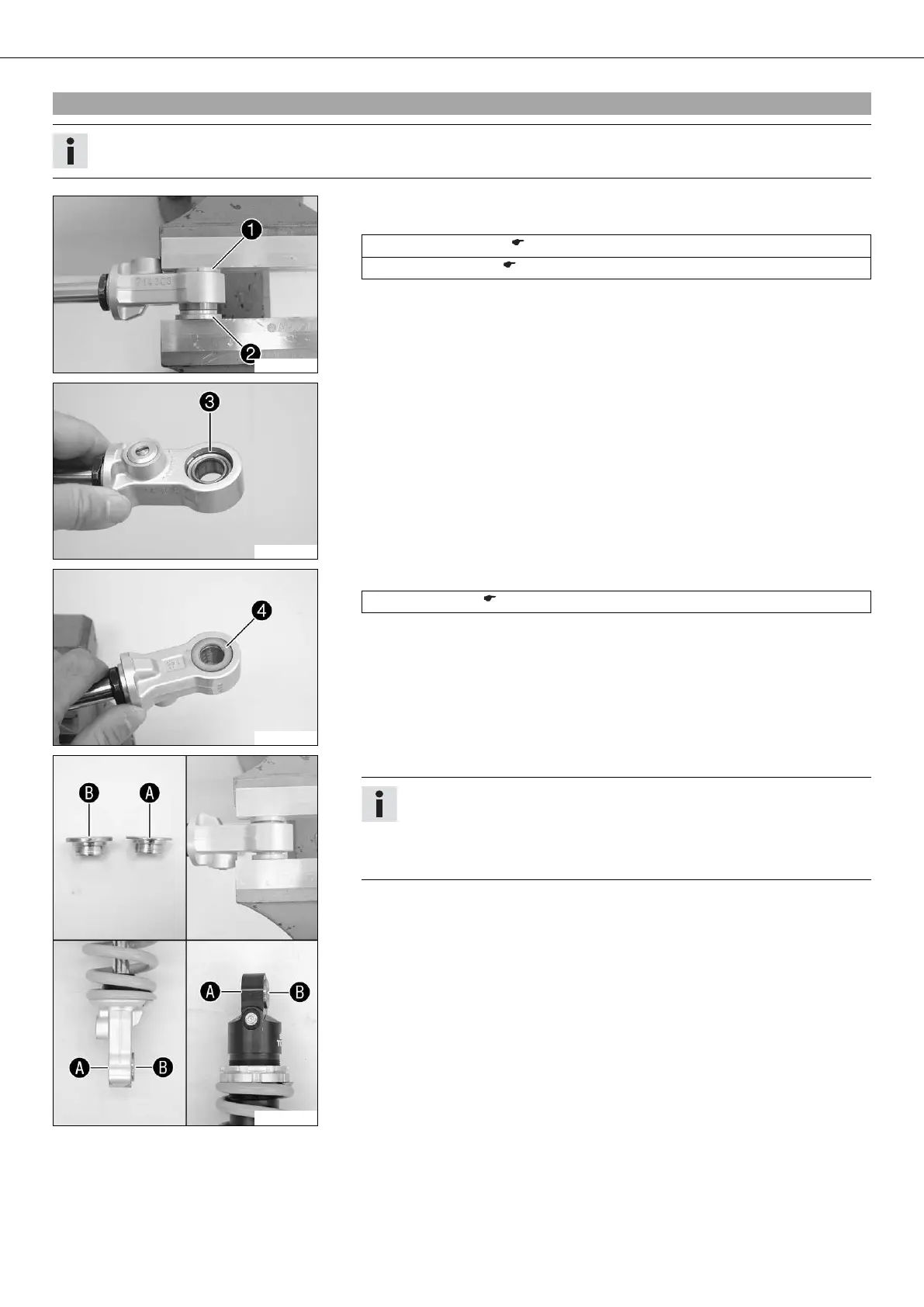

– Place special tool underneath and press the heim joint to the middle using spe-
cial tool .
Pressing tool (T1206) ( p. 146)
Pressing tool (T129) ( p. 147)
200579-11
– Mount lock rings on both sides.
200578-11
– Mount and grease seal rings on both sides.
Lubricant (T158) ( p. 140)
200901-10
– Press in both collar bushings of the heim joint.
Info
Because the collar bushings are different ( thin, thick), ensure that
they are installed in the correct positions; see the photos.
If the collar bushings are installed incorrectly, the shock absorber will rub
against the swingarm.
