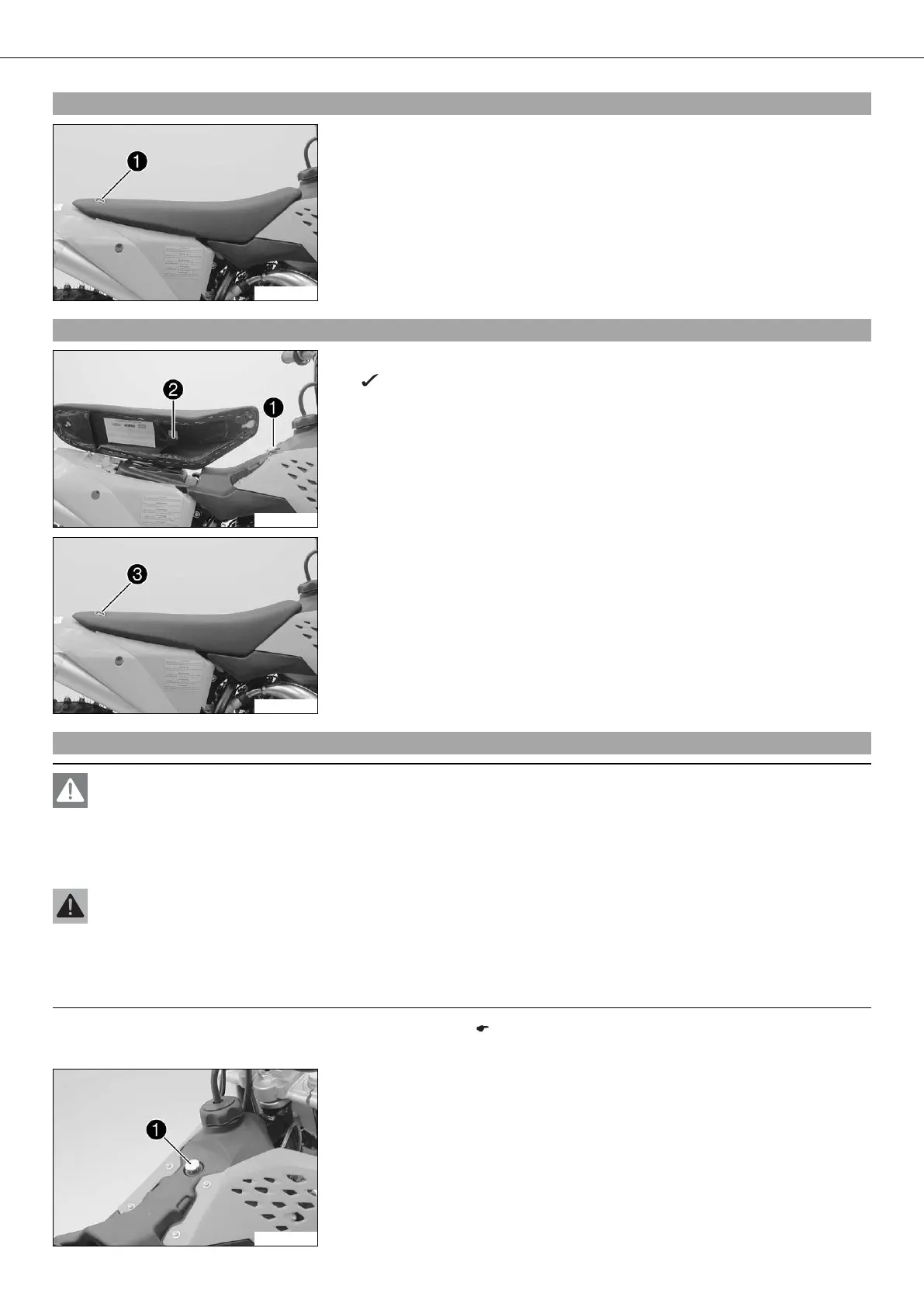

07/FUEL TANK, SEAT, TRIM 42
9.1Removing the seat
300611-10
– Open quick release and raise the rear of the seat.
– Pull back the seat and remove it.
9.2Mounting the seat
300612-10
– Hook the seat onto screw and lower the seat at the rear while pushing it forward.
Projection hooks into the fuel tank.
300611-11
– Close quick release .
9.3Removing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse immedi-
ately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed, con-
tact a doctor immediately. Change clothing that has come into contact with fuel. Store fuel in a suitable canister according
to regulations and keep it out of the reach of children.
– Remove the seat. ( p. 42)
– Turn the knurled screw on the fuel tap all the way clockwise.
300613-10
– Remove screw .
