KTM 50 SX 2010 User Manual

31/CARBURETOR 96
300900-10

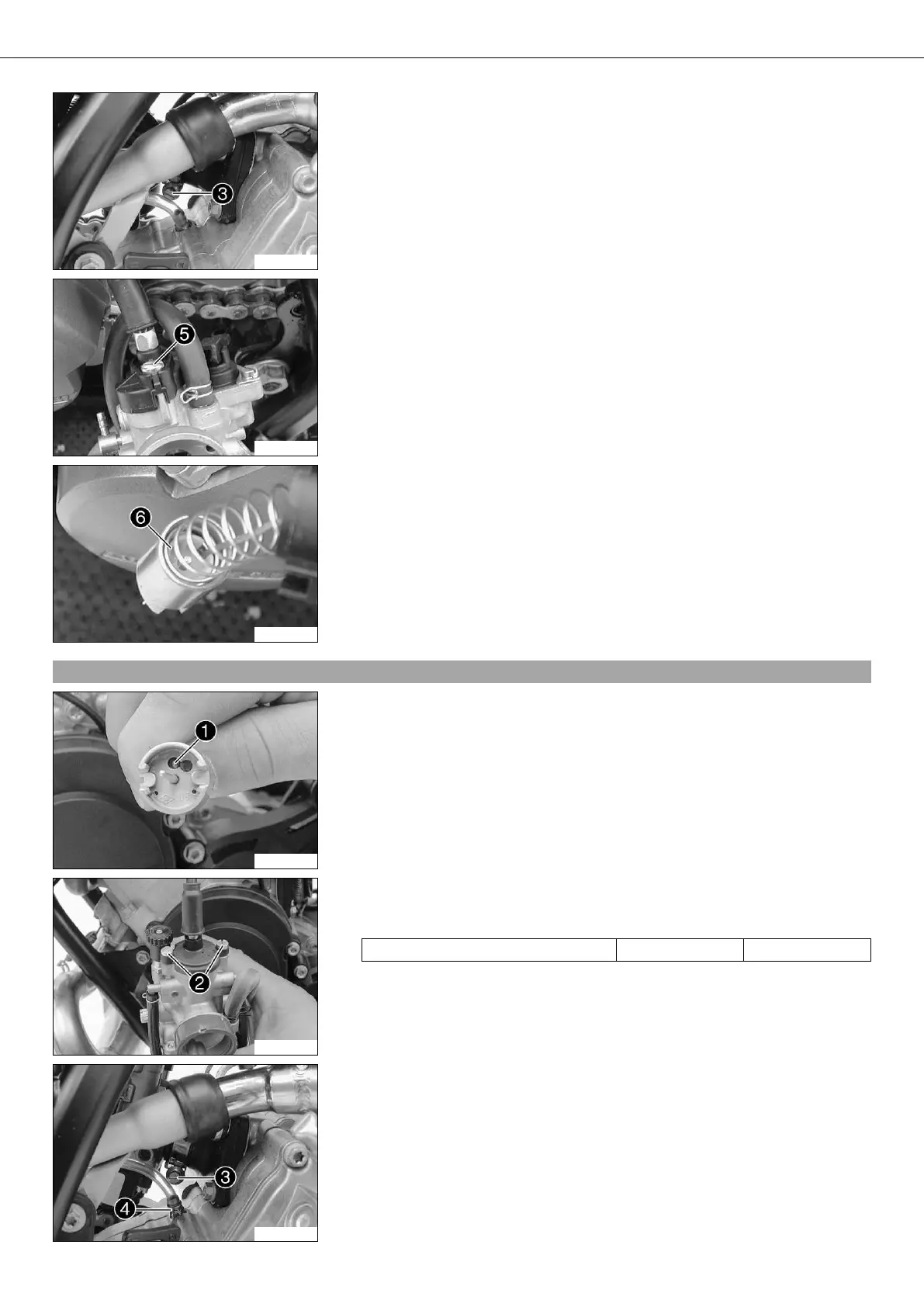

– Unscrew hose clip .
– Pull the carburetor out of the intake flange.
– Pull the carburetor forward out of the carburetor connection boot.
300901-10
– Remove screw .
– Remove the throttle slide cover and pull the throttle slide out of the carburetor.
– Drain the remaining fuel.
300902-10
– Pull back spring retainer  and the throttle slide spring.
– Detach the throttle cable.
18.3Installing the carburetor (50 SX)
300895-11
– Attach throttle cable .
– Position the spring retainer and throttle slide spring.
300893-11
– Position the throttle slide, gasket, and throttle slide cover.
– Mount and tighten screws .
Guideline
Screw, throttle slide cover M5 3 Nm (2.2 lbf ft)
300892-10
– Mount the carburetor.
– Position and tighten hose clamp .
– Mount the engine breather hose and position clamp .
