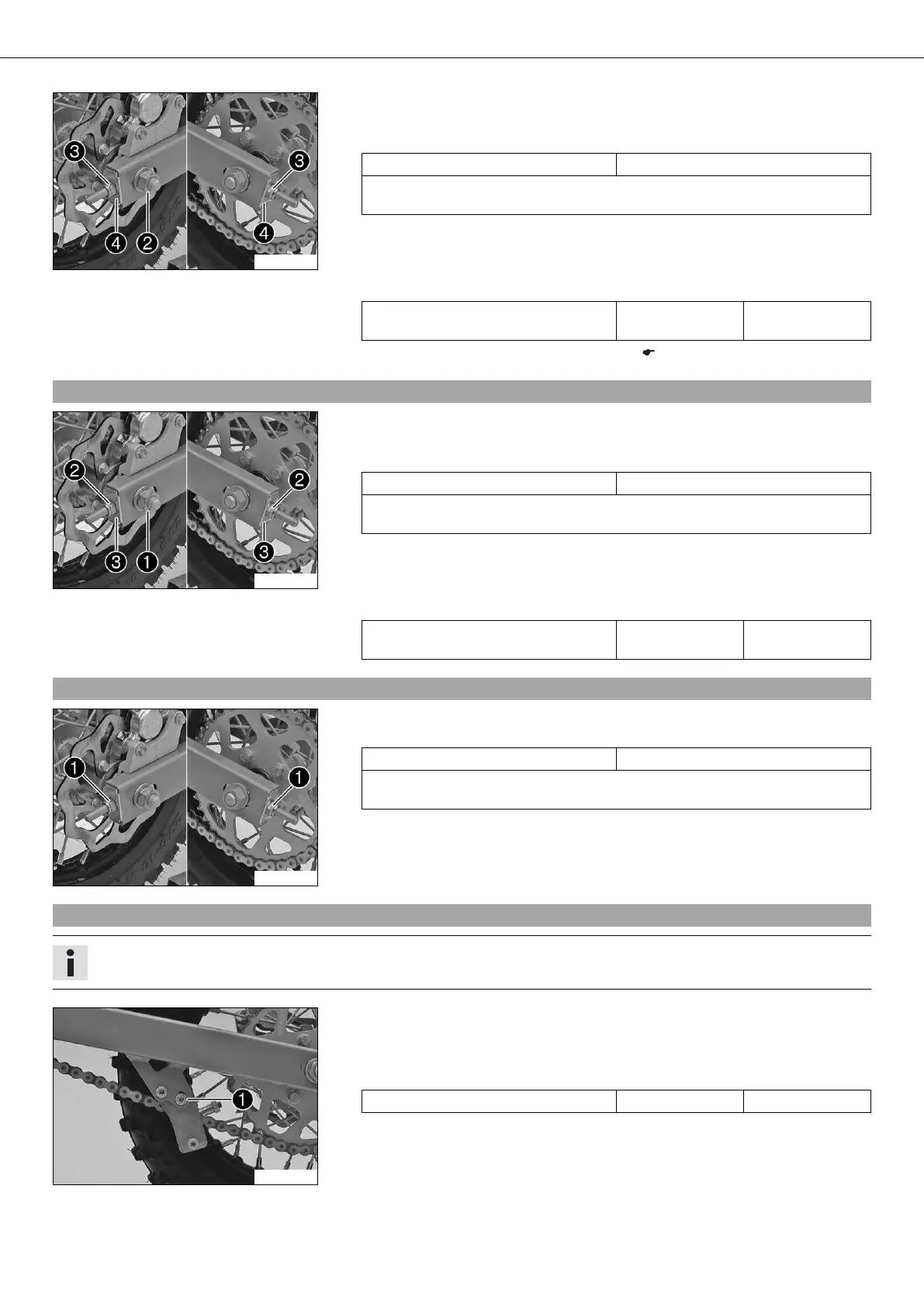

KTM 50 SX 2010 User Manual

10/REAR WHEEL 52
700484-11
– Loosen nut .
– Adjust the chain tension by turning the adjusting screws  left and right.
Guideline
Chain tension 5… 8 mm (0.2… 0.31 in)
Turn adjusting screws  equally on the left and right. Check that the rear wheel
is aligned with the front wheel.
– Make sure that the chain adjuster supports  are fitted correctly on the adjusting
screws .
– Tighten nut .
Guideline
Nut, rear wheel spindle M12x1 40 Nm
(29.5 lbf ft)
– Remove the motorcycle from the work stand. ( p. 7)
12.9Adjusting chain tension - after checking
700484-10
– Loosen nut .
– Adjust the chain tension by turning the adjusting screws  left and right.
Guideline
Chain tension 5… 8 mm (0.2… 0.31 in)
Turn adjusting screws  equally on the left and right. Check that the rear wheel
is aligned with the front wheel.
– Make sure that the chain adjuster supports  are fitted correctly on the adjusting
screws .
– Tighten nut .
Guideline
Nut, rear wheel spindle M12x1 40 Nm
(29.5 lbf ft)
12.10Adjusting chain tension - installing rear wheel
700484-12
– Adjust the chain tension by turning the adjusting screws  left and right.
Guideline
Chain tension 5… 8 mm (0.2… 0.31 in)
Turn adjusting screws  equally on the left and right. Check that the rear wheel
is aligned with the front wheel.
12.11Adjusting the chain guide
Info
The size of the chain wheel varies with the number of teeth. The chain guide can be adjusted on small sprockets.
700485-01
– Loosen screw .
– Position the chain guide.
– Tighten screw.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
