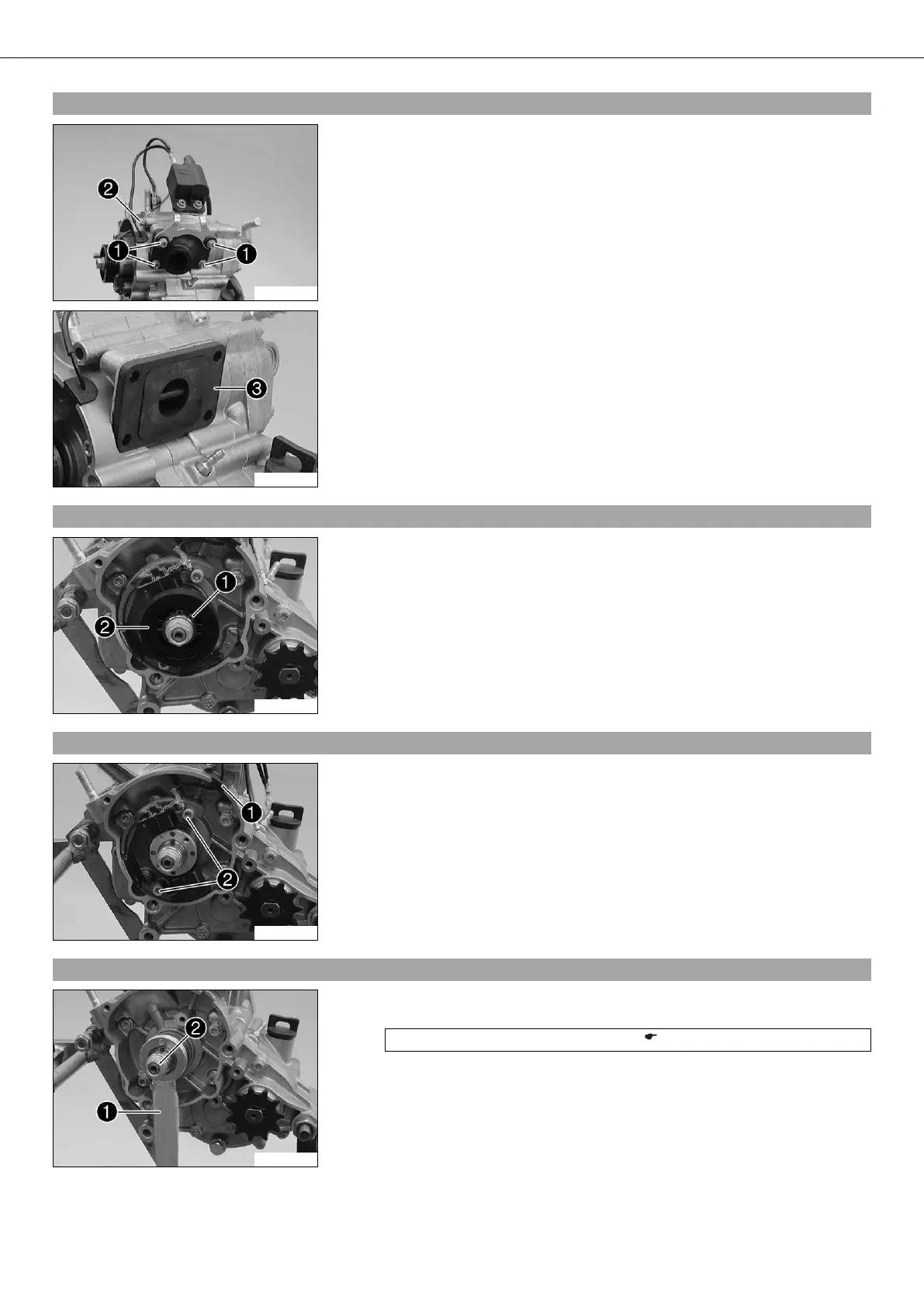

30/DISASSEMBLING THE ENGINE 70
15.9Removing the ignition coil, intake flange, and reed valve housing
300469-11
– Remove screws .
– Remove screw .
– Take off the ignition coil and intake flange.
301062-10
– Remove reed valve housing .
– Remove the gasket.
15.10Removing the oil pump drive gear (50 SX Mini)
300472-10
– Remove lock ring .
– Take off oil pump drive gear .
15.11Removing the stator
300473-10
– Remove cable support sleeve out of the engine case.
– Remove screw .
– Take out the stator.
15.12Removing the rotor
300475-10
(50 SX Mini)
– Hold the rotor in place with special tool .
Holding spanner, rotor (45229012000) ( p. 143)
– Remove nut of the rotor.
To Next Page
