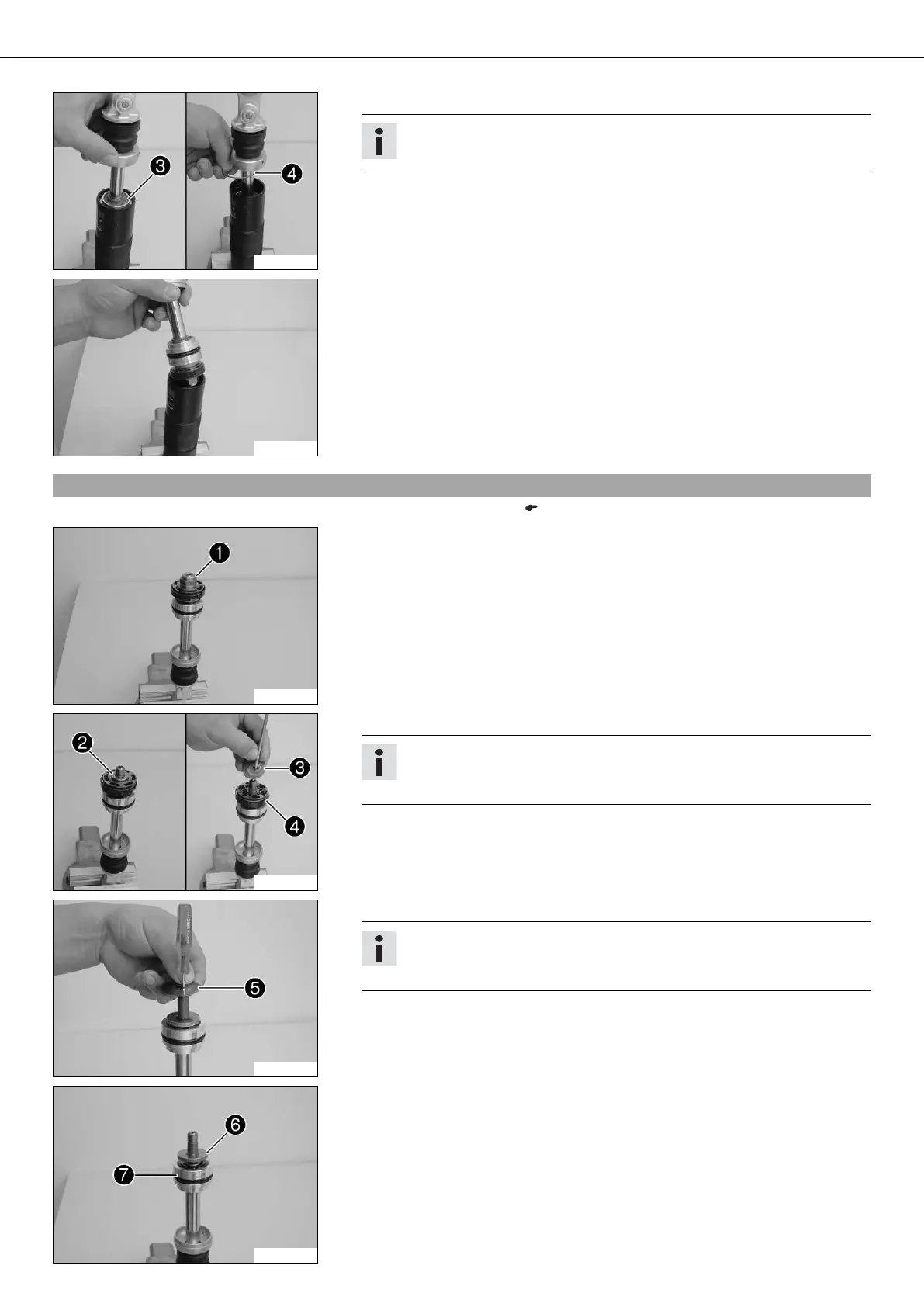

04/SHOCK ABSORBER, SWINGARM 27
300433-10
– Push in seal ring retainer . Remove lock ring .
Info
Do not scratch the inside surface.
300434-10
– Remove the piston rod. Drain the remaining oil.
6.13Disassembling the piston rod
– Disassemble the damper. ( p. 26)
300435-10
– Clamp the piston rod with the heim joint into a vise.
– Remove nut .
300436-10
– Remove supporting plate  and rebound shim stack  together with piston .
Info
Thread the rebound shim stack onto a screwdriver and set the shims down
together.
300437-10
– Remove compression shim stack .
Info
Thread the compression shim stack onto a screwdriver and set the shims
down together.
300439-10
– Remove supporting plate .
– Remove seal ring retainer .
