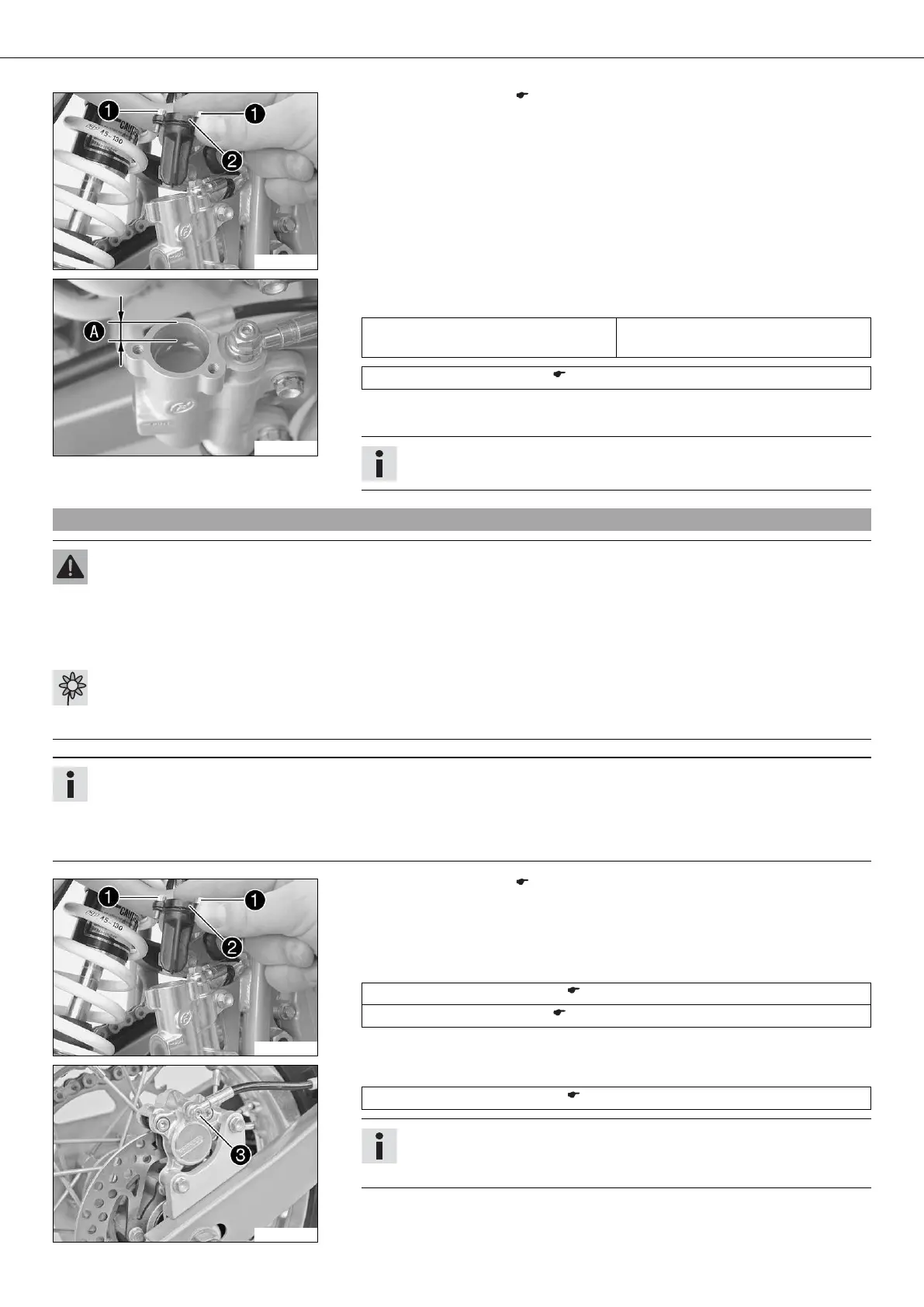

13/BRAKE SYSTEM 60
201175-10
– Jack up the motorcycle. ( p. 7)
– Remove screws .
– Take off cover with washer and membrane .
201170-10
– Add brake fluid to level .
Guideline
Dimension (brake fluid level below
top edge of container)
10 mm (0.39 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 138)
– Position the membrane and the cover with the washer. Mount and tighten the
screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.
13.16Changing the rear brake fluid
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid gets into your eyes, rinse thoroughly with water and contact a doctor immediately.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Never user DOT 5 brake fluid! This is based on silicone oil and is colored purple. Oil seals and brake lines are not designed for
DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint!
Use only clean brake fluid from a sealed container!
201175-10
– Jack up the motorcycle. ( p. 7)
– Remove screws .
– Take off cover with washer and membrane .
– Draw the used brake fluid out of the brake fluid reservoir using a syringe and fill in
new brake fluid.
Bleed syringe (50329050000) ( p. 145)
Brake fluid DOT 4 / DOT 5.1 ( p. 138)
201176-10
– Remove bleeder screw . Extract old brake fluid with a syringe.
Bleed syringe (50329050000) ( p. 145)
Info
During suction, ensure that the brake fluid reservoir is always filled with a
sufficient amount of new brake fluid.
– Mount and tighten screws bleeder screw.
