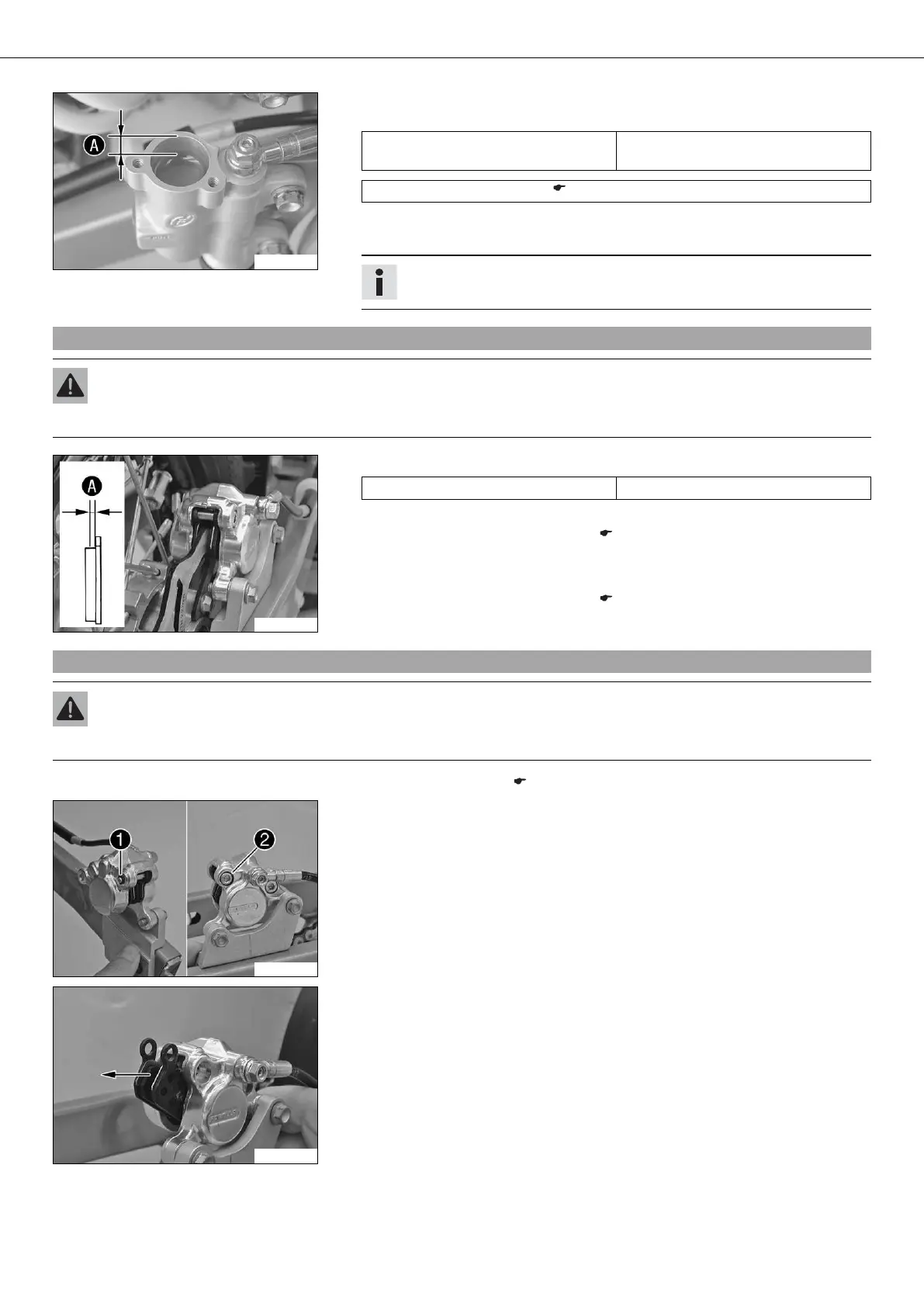

13/BRAKE SYSTEM 61
201170-10
– Adjust brake fluid level up to mark .
Guideline
Dimension (brake fluid level below
top edge of container)
10 mm (0.39 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 138)
– Position the cover with the membrane. Mount and tighten screws.
– Activate the foot brake lever until you feel a firm pressure point.
Info
Clean up overflowed or spilt brake fluid immediately with water.
13.17Checking the rear brake linings
Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately.
700491-01
– Check the brake linings for minimum thickness .
Minimum thickness ≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
– Change the rear brake linings. ( p. 62)
– Check the brake linings for damage and cracking.
» If damage or wear is encountered:
– Change the rear brake linings. ( p. 62)
13.18Removing rear brake linings
Warning
Danger of accident Brake system failure.
– Maintenance work and repairs must be carried out professionally.
– Remove the rear wheel. ( p. 49)
700492-01
– Remove the lock washer .
– Remove screw .
700493-01
– Remove the brake linings.
– Clean brake caliper and brake caliper support.
