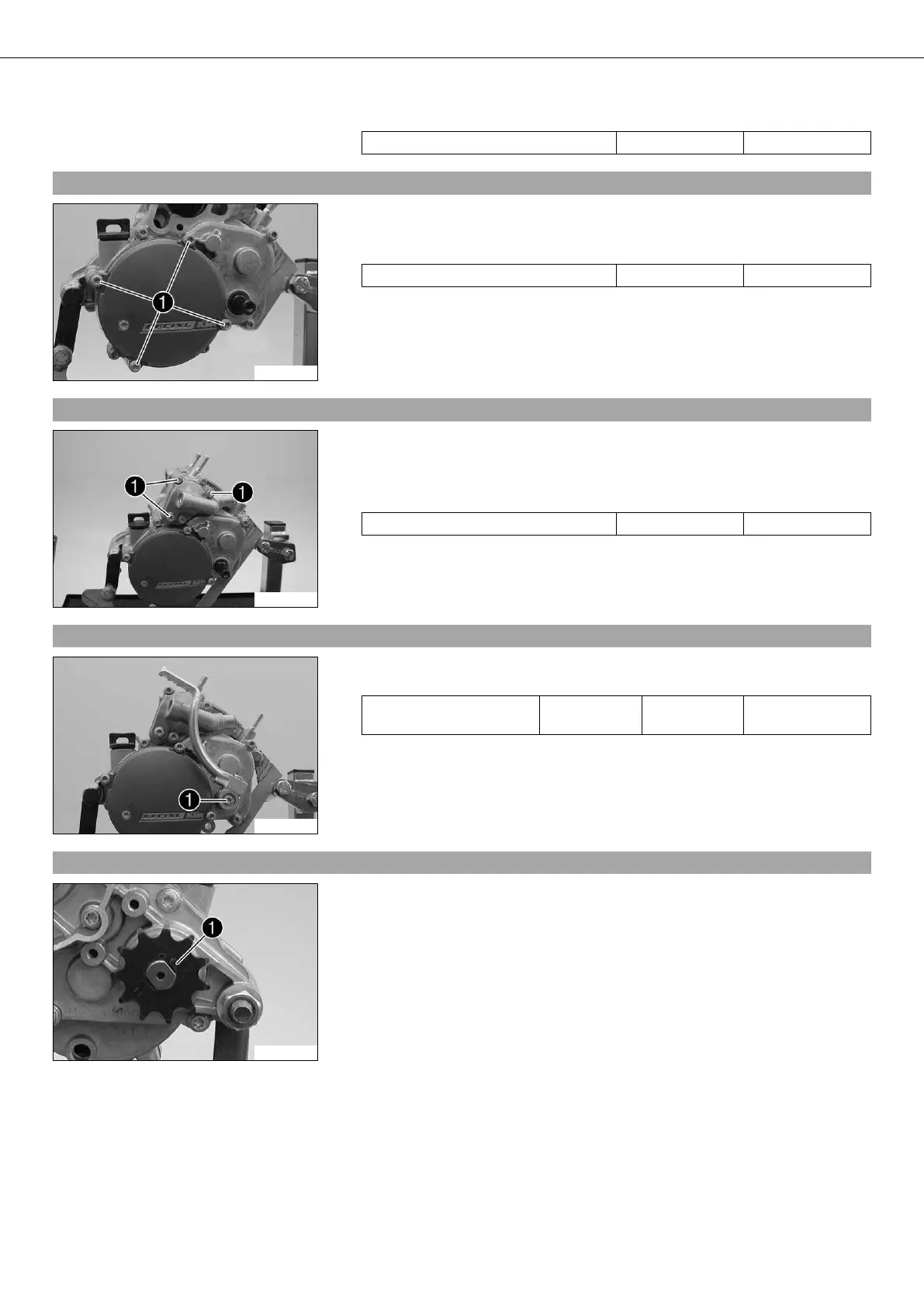

30/ASSEMBLING THE ENGINE 87
– Mount screw  and tighten all screws in a crisscross pattern.
Guideline
Screw, clutch cover M6x50 10 Nm (7.4 lbf ft)
17.13Installing the outer clutch cover
300482-10
– Mount the clutch cover gasket.
– Position the outer clutch cover. Mount and tighten screws .
Guideline
Screw, clutch cover M6 10 Nm (7.4 lbf ft)
17.14Mounting the water pump cover
300481-10
– Mount the gasket and dowels.
– Position the water pump cover.
– Mount and tighten screws .
Guideline
Screw, water pump cover M6 10 Nm (7.4 lbf ft)
17.15Installing the kickstarter
300480-10
– Position the kickstarter. Mount and tighten screw .
Guideline
Screw, kickstarter M5 6 Nm
(4.4 lbf ft)
Loctite
®
243™
17.16Installing the engine sprocket
300479-10
– Slide on the engine sprocket with the collar facing the engine. Mount lock ring .
