30/ENGINE - WORK ON INDIVIDUAL PARTS 77
– Press shaft seal ring of the countershaft from the outside to the inside with the
open side facing inward.
Info
The shaft seal rings must be flush on the outside.

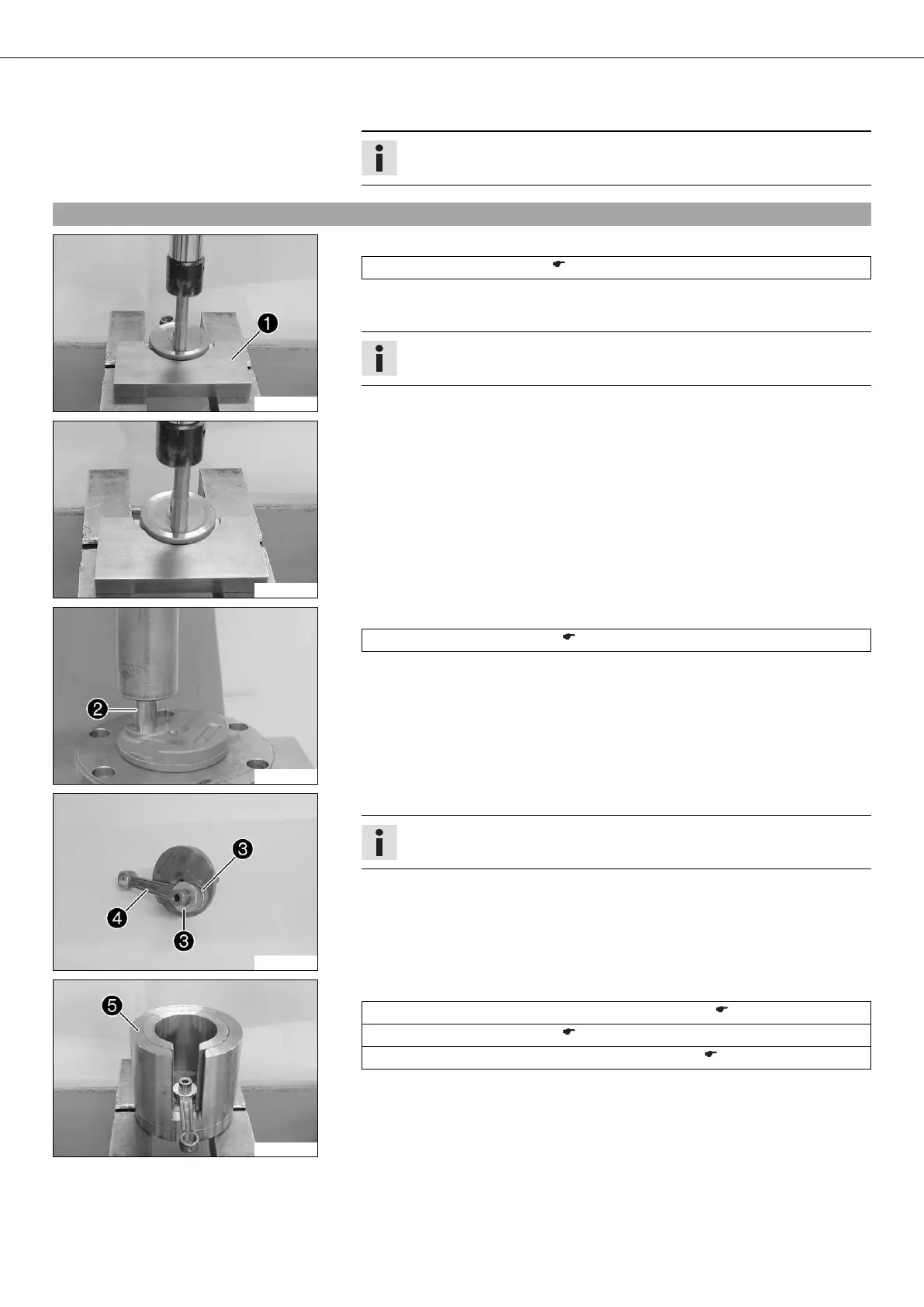

16.3Changing the conrod bearing
300839-10
– Position special tool between the crank webs.
Press plate (45229047050) ( p. 143)
– Position the crankshaft in the press with the special tool.
–
Press the crank pin out of the upper crank web with a suitable push-out drift.
Info
Hold the lower crank web.
– Take off the connecting rod, bearing, and stop disks.
300840-10
– Press the crank pin out of the crank web.
300845-10
– Press the new crank pin all the way in.
Anchor plate (46229047002) ( p. 144)
300841-10
– Mount stop disks , bearing, and connecting rod .
Info
Oil the bearing thoroughly.
300842-10
– Position special tool on the press.
Pressing device, crankshaft, complete (50329047000) ( p. 144)
Anchor plate (46229047002) ( p. 144)
Bushing, crankshaft pressing device (45229008001) ( p. 142)
– Insert the crank web with the connecting rod and bearing.
