KTM 50 SX 2010 User Manual

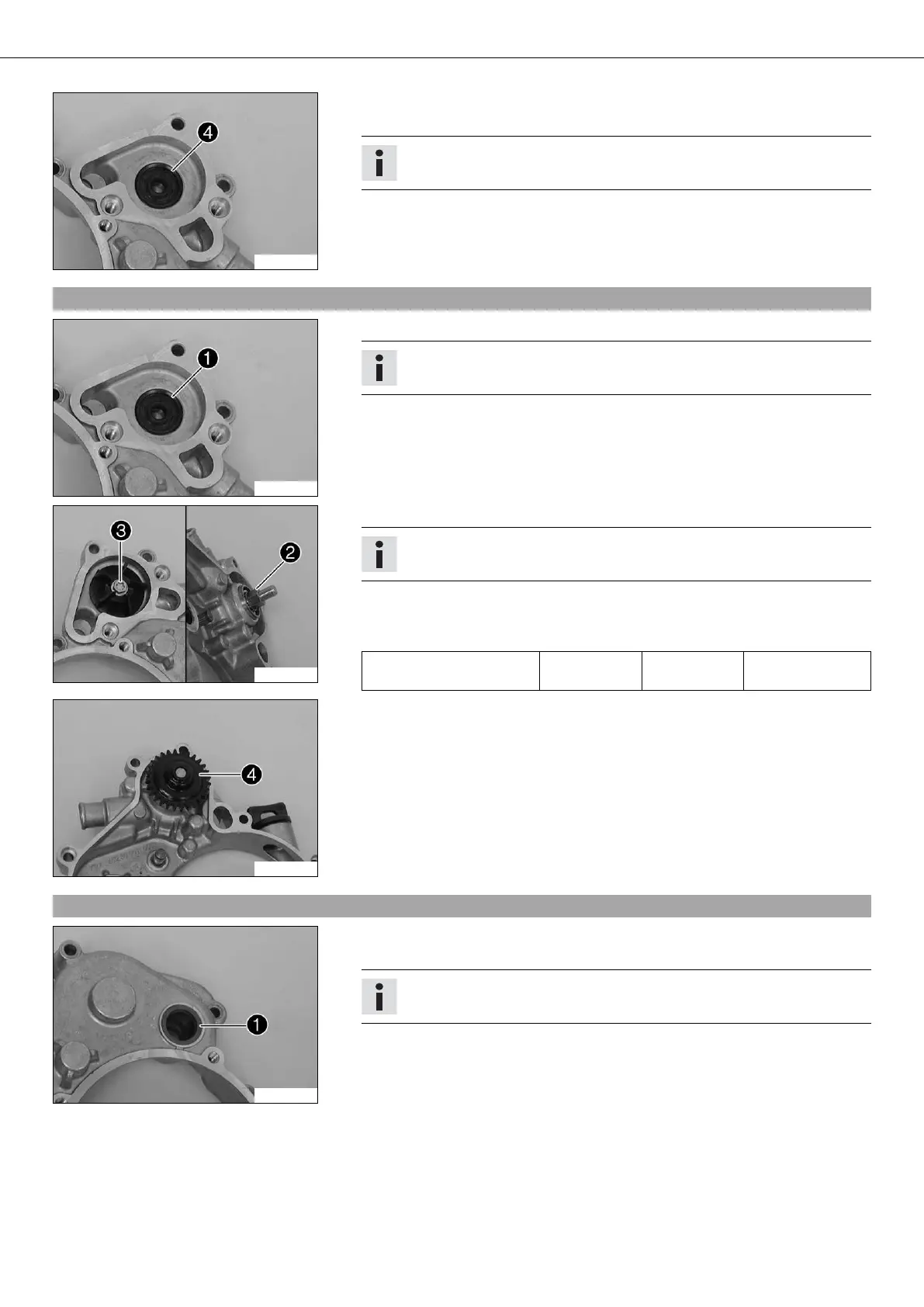

30/ENGINE - WORK ON INDIVIDUAL PARTS 79
300509-10
– Remove shaft seal ring .
– Press out the bearing of the water pump shaft with a suitable tool.
Info
Support the clutch cover when pressing out.
16.6Installing the water pump
300509-11
– Press the bearing of the water pump shaft all the way in with a suitable tool.
Info
Support the clutch cover when pressing in.
– Press in the shaft seal ring  until it is flush.
300508-11
– Mount water pump shaft .
Info
Do not damage the shaft seal ring.
– Mount the water pump impeller.
– Mount and tighten screw .
Guideline
Screw, water pump wheel M5 5 Nm
(3.7 lbf ft)
Loctite
®
243™
300507-11
– Mount drive gear .
16.7Changing the shaft seal ring of the kick starter
300510-10
– Remove shaft seal ring  of the kick starter.
– Press the new shaft seal ring all the way in with the open side facing inward.
Info
Support the clutch cover when pressing in.
