30/ENGINE - WORK ON INDIVIDUAL PARTS 80

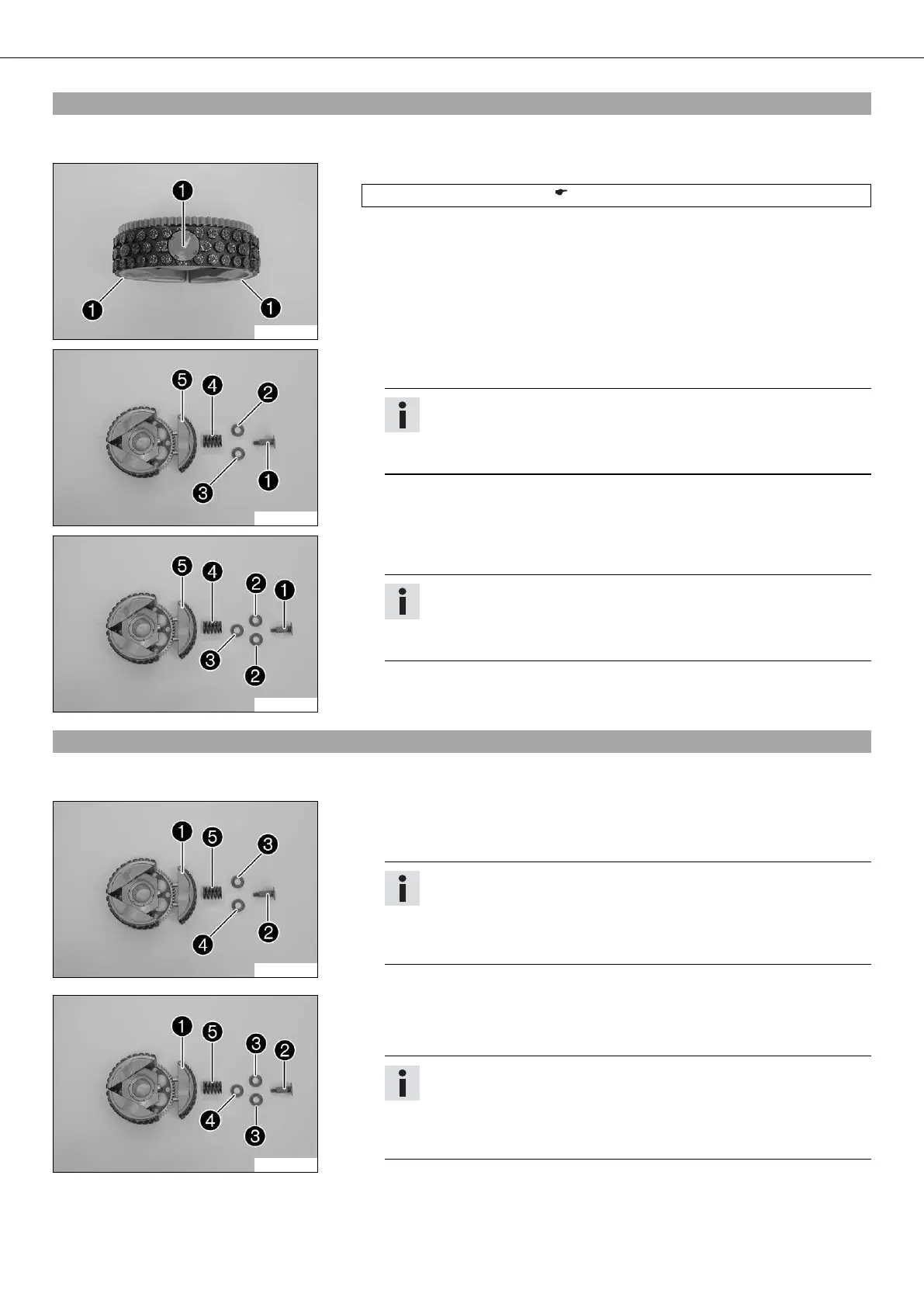

16.8Dismantling centrifugal clutch
Condition
Centrifugal clutch removed.
300513-10
– Loosen screws with special tool.
Mortise key (45229021000) ( p. 143)
300514-10
Clutch spring with green mark
– Remove screw with spacing washer and spring .
Info
Washer is used for adjusting the clutch engagement speed and does
not have to be fitted.
All clutch springs must be marked with the same color.
– Remove clutch shoe .
– Repeat these steps on the other clutch shoes.
301866-10
Clutch spring with yellow mark
– Remove screw with spacing washers and spring .
Info
Washer is used for adjusting the clutch engagement speed and does
not have to be fitted.
All clutch springs must be marked with the same color.
– Remove clutch shoe .
– Repeat these steps on the other clutch shoes.
16.9Assembling centrifugal clutch
Condition
Centrifugal clutch removed.
300514-11
Clutch spring with green mark
– Position the clutch shoe .
– Fit screw with spacing washer and spring .
Info
Washer is used for adjusting the clutch engagement speed and must
be fitted consistently on all clutch shoes depending on the clutch
engagement speed.
All clutch springs must be marked with the same color.
– Repeat these steps on the other clutch shoes.
301866-11
Clutch spring with yellow mark
– Position the clutch shoe .
– Fit screw with spacing washers and spring .
Info
Washer is used for adjusting the clutch engagement speed and must
be fitted consistently on all clutch shoes depending on the clutch
engagement speed.
All clutch springs must be marked with the same color.
– Repeat these steps on the other clutch shoes.
