04/SHOCK ABSORBER, SWINGARM 29

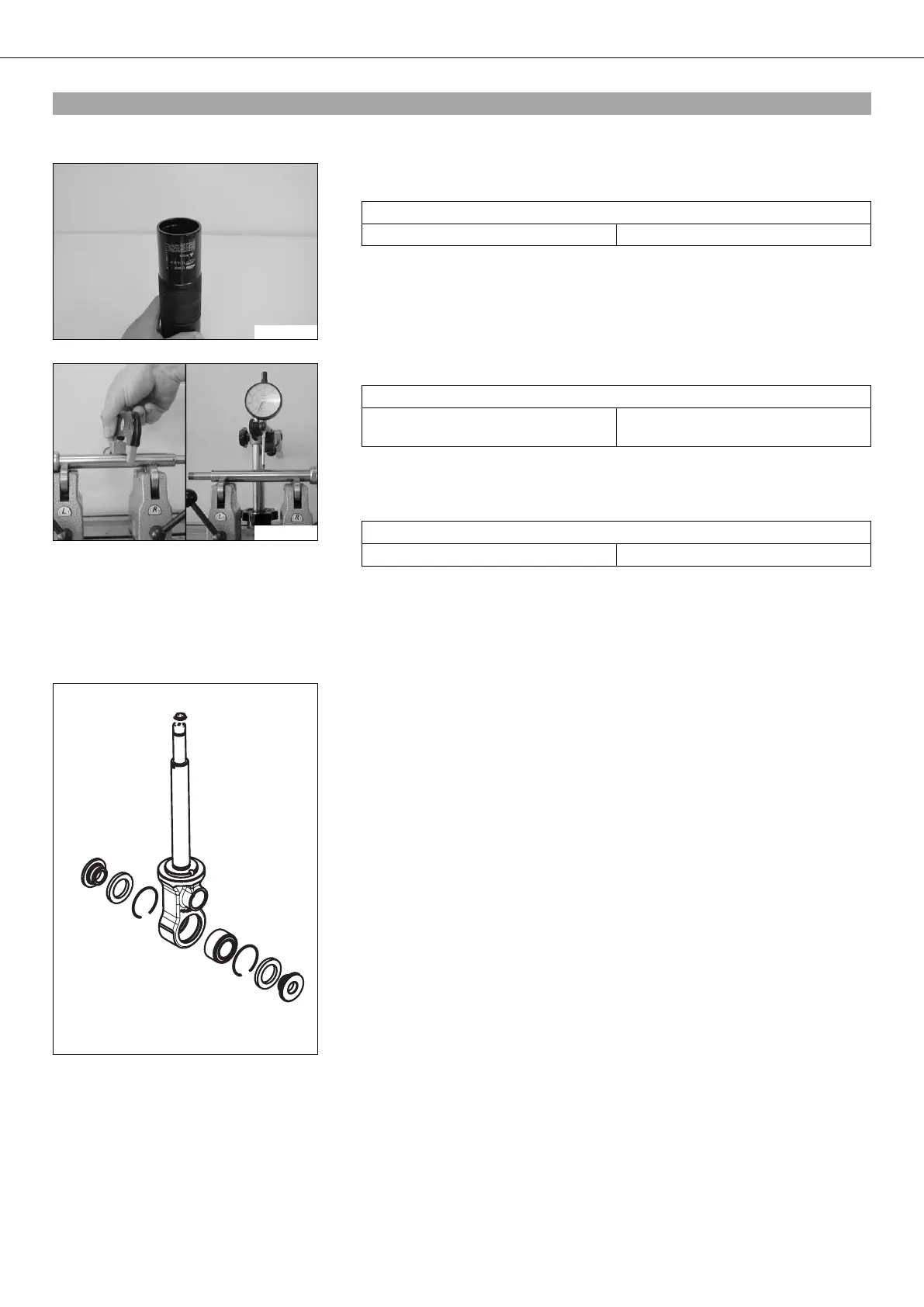

6.15Checking the damper
Condition
The damper has been disassembled.
300440-10
– Measure the inside diameter at both ends and in the middle of the damper car-
tridge.
Damper cartridge
Minimum diameter 36.10 mm (1.4213 in)
» If the measured value is greater than the specified value:
– Change the damper cartridge.
– Check the damper cartridge for damage and wear.
» If there is damage or wear:
– Change the damper cartridge.
300554-10
– Measure the diameter of the piston rod.
Piston rod
Diameter 13.93… 13.98 mm (0.5484…
0.5504 in)
» If the specified value is not reached:
– Change the piston rod.
– Measure the run-out of the piston rod.
Piston rod
Run-out ≤ 0.08 mm (≤ 0.0031 in)
» If the measured value is greater than the specified value:
– Change the piston rod.
– Check the piston rod for damage and wear.
» If there is damage or wear:
– Change the piston rod.
300460-01
– Check the heim joint for damage and wear.
» If there is damage or wear:
– Change the heim joint.
