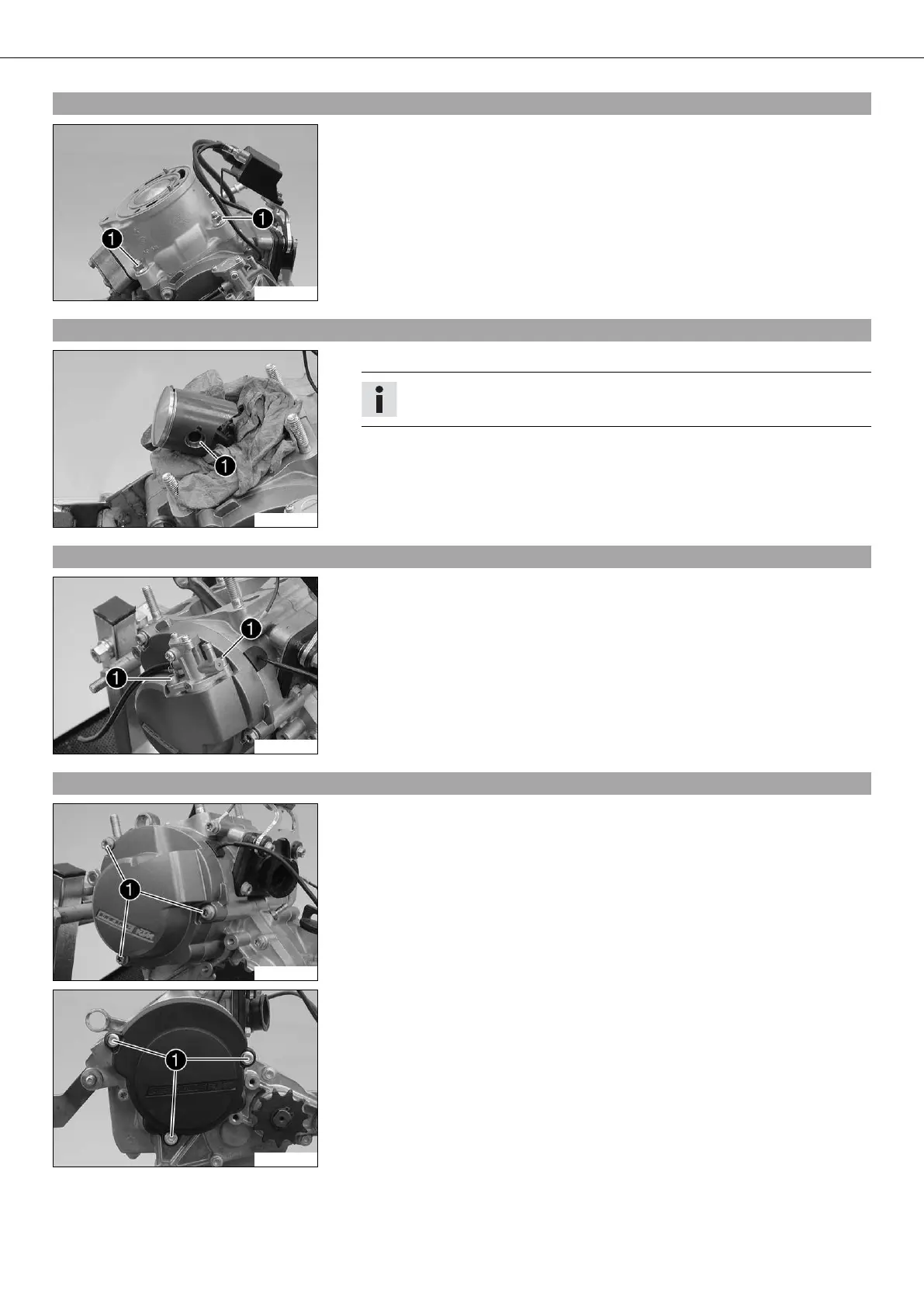

30/DISASSEMBLING THE ENGINE 69
15.5Removing the cylinder
300464-10
– Remove nuts  on both sides.
– Carefully slide the cylinder up and take it off.
– Take off the cylinder base gasket.
15.6Removing the piston
300466-10
– Remove piston pin retainer .
Info
Cover the engine case opening with a cloth.
– Remove the piston pin.
– Take off the piston.
– Remove the upper conrod bearing.
15.7Removing the oil pump (50 SX Mini)
300467-10
– Remove screws .
– Take off the oil pump.
15.8Removing the alternator cover
300468-10
(50 SX Mini)
– Remove screws . Remove the alternator cover.
– Remove the gasket.
– Remove the dowels.
300851-10
(50 SX)
– Remove screws . Remove the alternator cover.
– Remove the gasket.
