01/FORK, TRIPLE CLAMP 12
201180-10

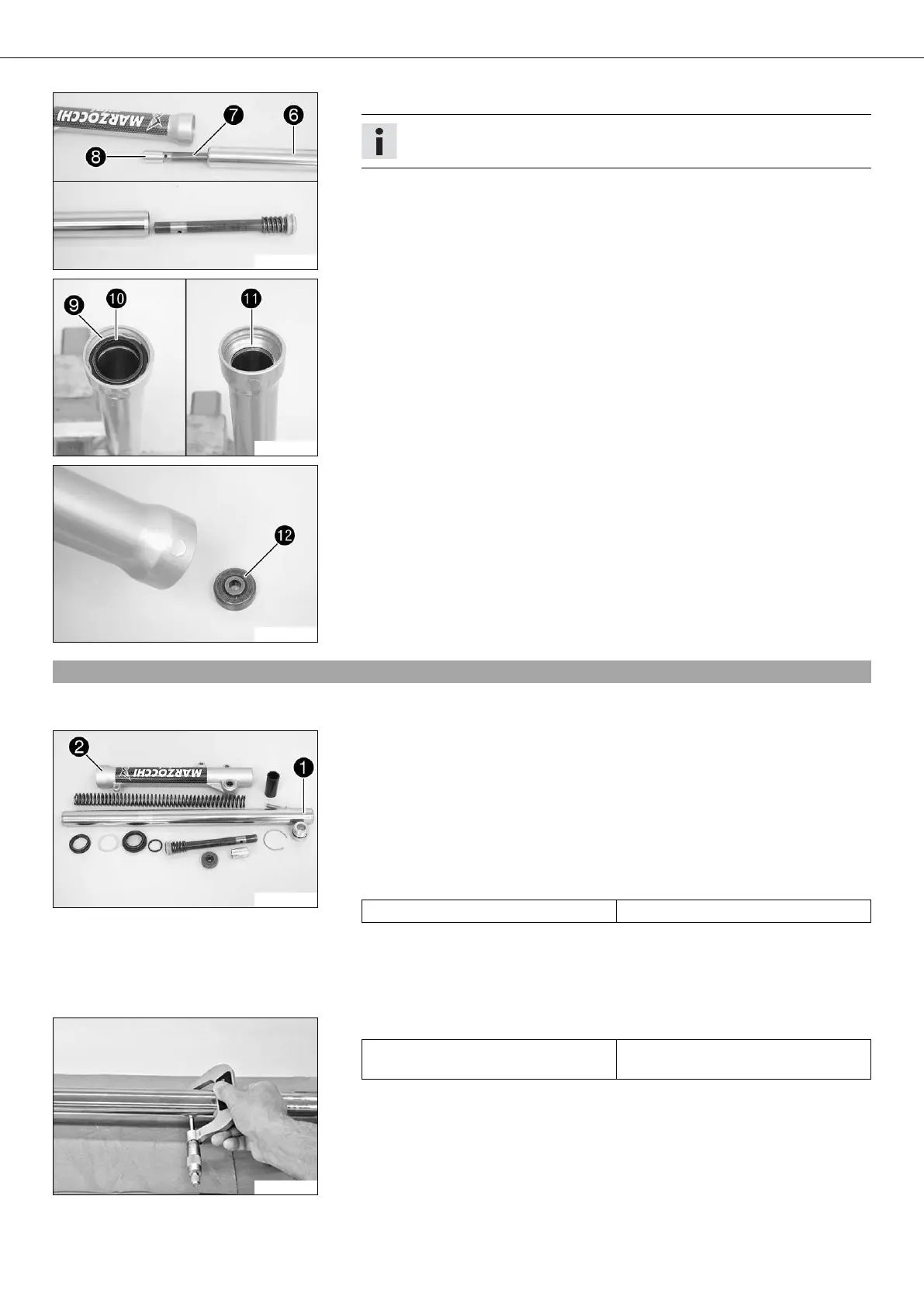

– Pull inner tube with piston rod out of the outer tube.
Info
If the damping bush remains in the outer tube, remove it as well.
201181-10
– Remove lock ring .
– Remove seal ring .
– Remove washer .
201182-10
– Remove washer from the outer tube.
4.6Checking the fork legs
Condition
The fork legs are disassembled.
201190-10
– Check the inner tube for damage.
» If there is damage:
– Change the inner tube.
– Check the outer tube for damage.
» If there is damage:
– Change the outer tube.
– Check the spring length.
Guideline
Spring length with preload bush(es) 347… 353 mm (13.66… 13.9 in)
» If the measured value is greater than the specified value:
– Reduce the thickness of the preload spacer.
» If the measured value is less than the specified value:
– Increase the thickness of the preload spacer.
200684-10
– Measure the outside diameter at several locations on the inner tube.
Outside diameter of the inner tube 31.936… 31.975 mm (1.25732…
1.25886 in)
» If the measured value is less than the specified value:
– Change the inner tube.
