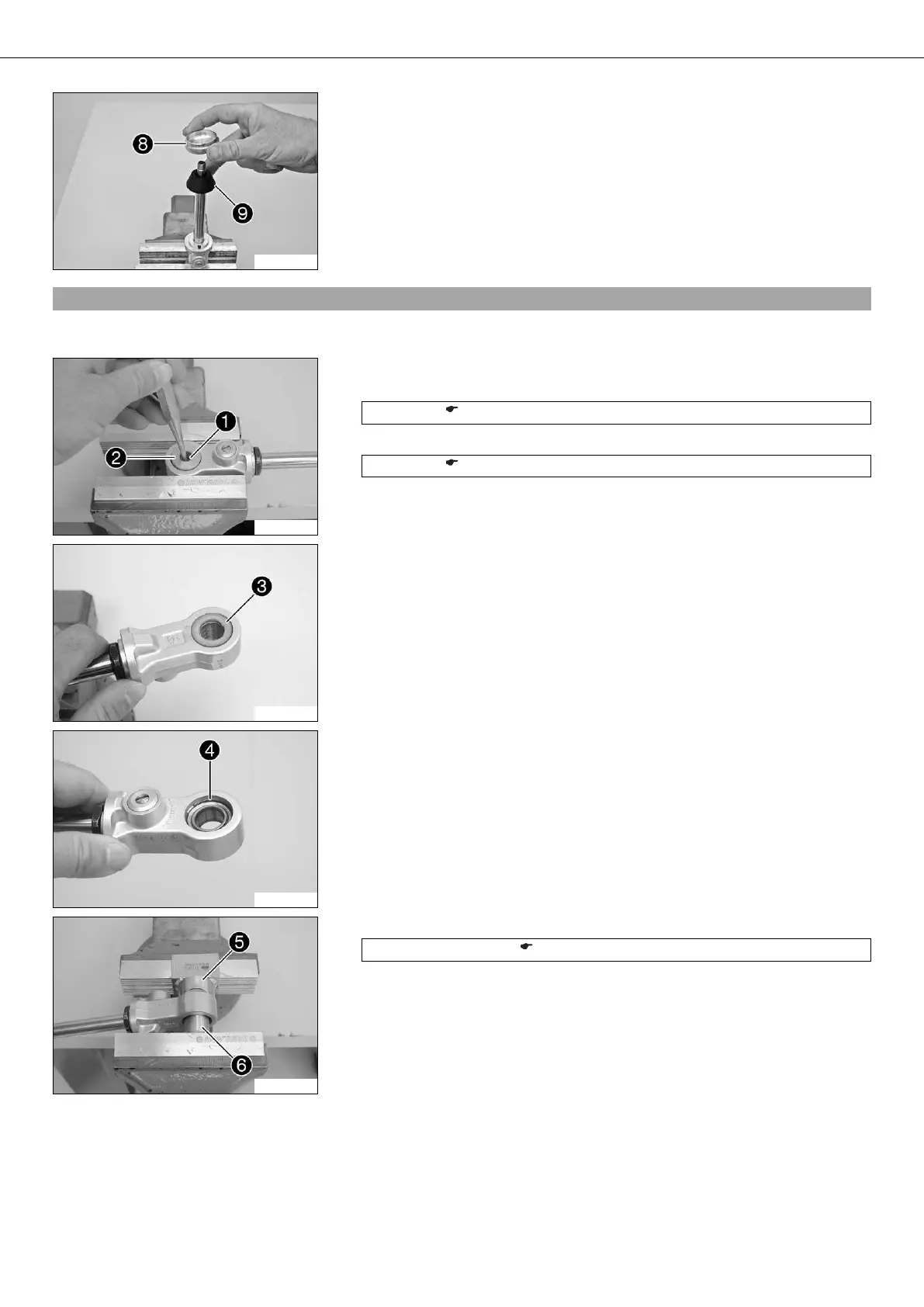

04/SHOCK ABSORBER, SWINGARM 28
300390-10
– Remove locking cap and rubber buffer .
6.14Removing the heim joint
Condition
The shock absorber has been removed.
200577-10
– Clamp the shock absorber into the vise using soft jaws.
– Remove collar bushing of the heim joint.
Pin (T120) ( p. 146)
– Turn around the shock absorber and remove collar bushing of the heim joint.
Pin (T120) ( p. 146)
200578-10
– Remove seal rings on both sides.
200579-10
– Remove lock rings on both sides.
200580-10
– Place special tool underneath and press out the heim joint using special tool .
Pressing tool (T1207S) ( p. 147)
