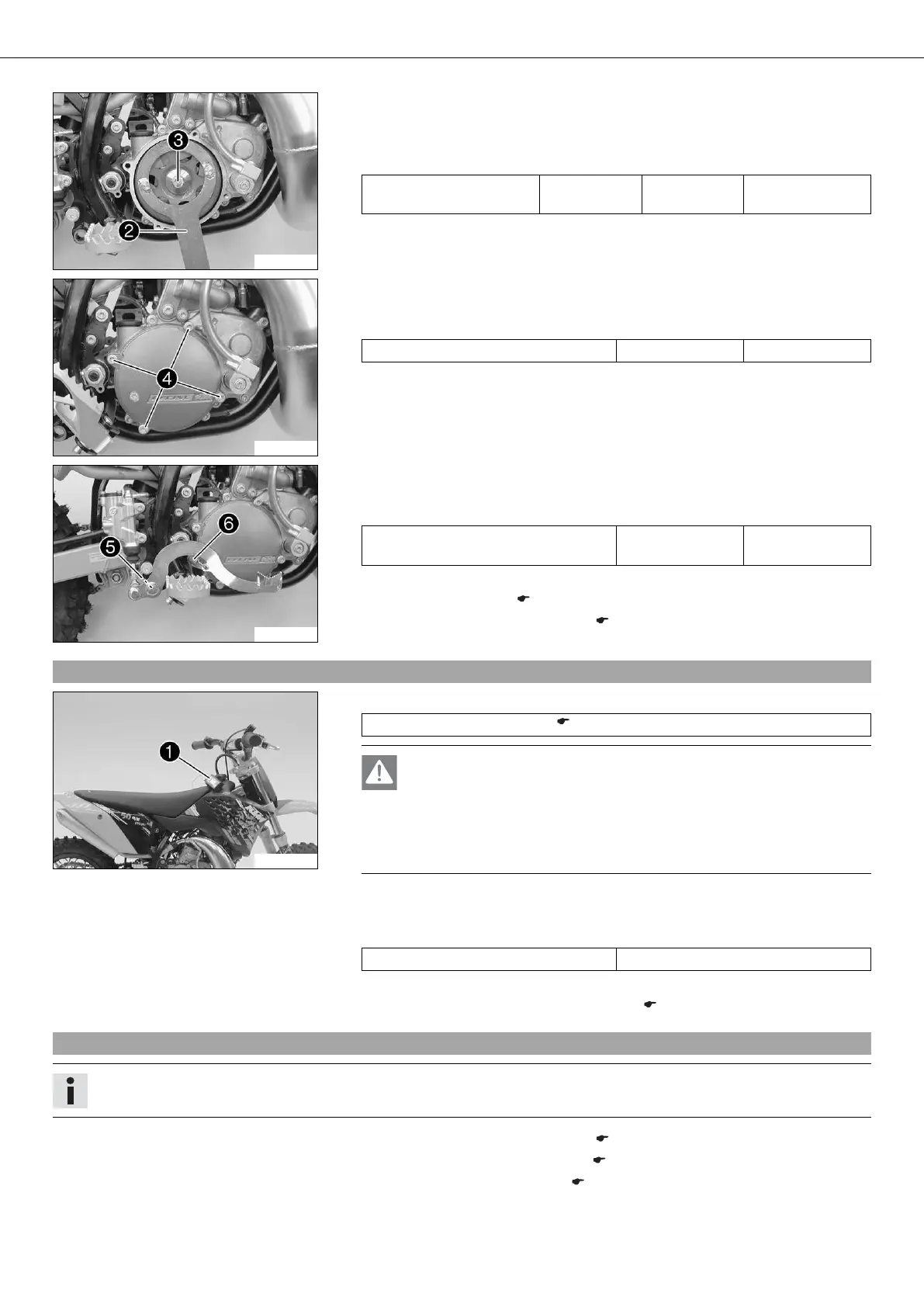

32/CLUTCH 110
300656-11
– Position the clutch drum.
– Hold the clutch drum with the special tool .
– Mount and tighten screw .
Guideline
Screw, clutch drum M8 30 Nm
(22.1 lbf ft)
Loctite
®
243™
300655-11
– Position the clutch cover with the gasket.
– Mount and tighten screws .
Guideline
Screw, clutch cover M6 10 Nm (7.4 lbf ft)
300654-11
– Position the foot brake pedal.
– Mount and tighten nut .
Guideline
Remaining nuts, chassis M8 30 Nm
(22.1 lbf ft)
– Mount the spring .
– Check the gear oil level. ( p. 116)
– Check the clutch engagement speed. ( p. 110)
19.3Checking clutch engagement speed
300658-10
– Connect special tool .
Tachometer (45129075000) ( p. 142)
Danger
Danger of poisoning Exhaust gases are poisonous and inhaling them may
result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in an enclosed space without an
effective exhaust extraction system.
– Start the motorcycle.
– Slowly increase engine speed until the clutch begins to engage.
– Measure the engine speed.
Clutch engagement speed 7,200… 7,500 rpm
» If the specified value is not reached:
– Adjust the clutch engagement speed. ( p. 110)
19.4Adjust the clutch engagement speed
Info
All clutch springs on a vehicle must be marked with the same color.
– Check the clutch engagement speed. ( p. 110)
– Remove the centrifugal force clutch. ( p. 109)
– Dismantle the centrifugal clutch. ( p. 80)
