MAINTENANCE
SERVICE MANUAL NUMBER 22
90-860074--1 FEBRUARY 2002 Page 1B-73
Recommissioning
NOTICE
Refer to Cold Weather Extended Storage - Precautions, BEFORE proceeding.
1. Reinstall seawater pump components as follows:
a. Place impeller in pump housing,
turning clockwise while simultaneously pushing
firmly inward onto pump shaft.
NOTE: Use new gasket. Install in correct position - wide surface on side of cam.
b. Install pump cover with new gasket in noted position.
c. Install the seawater pump cover mounting screws. Tighten securely.
NOTE: Pump shown removed for visual clarity only.
71366
a
b
c
d
e

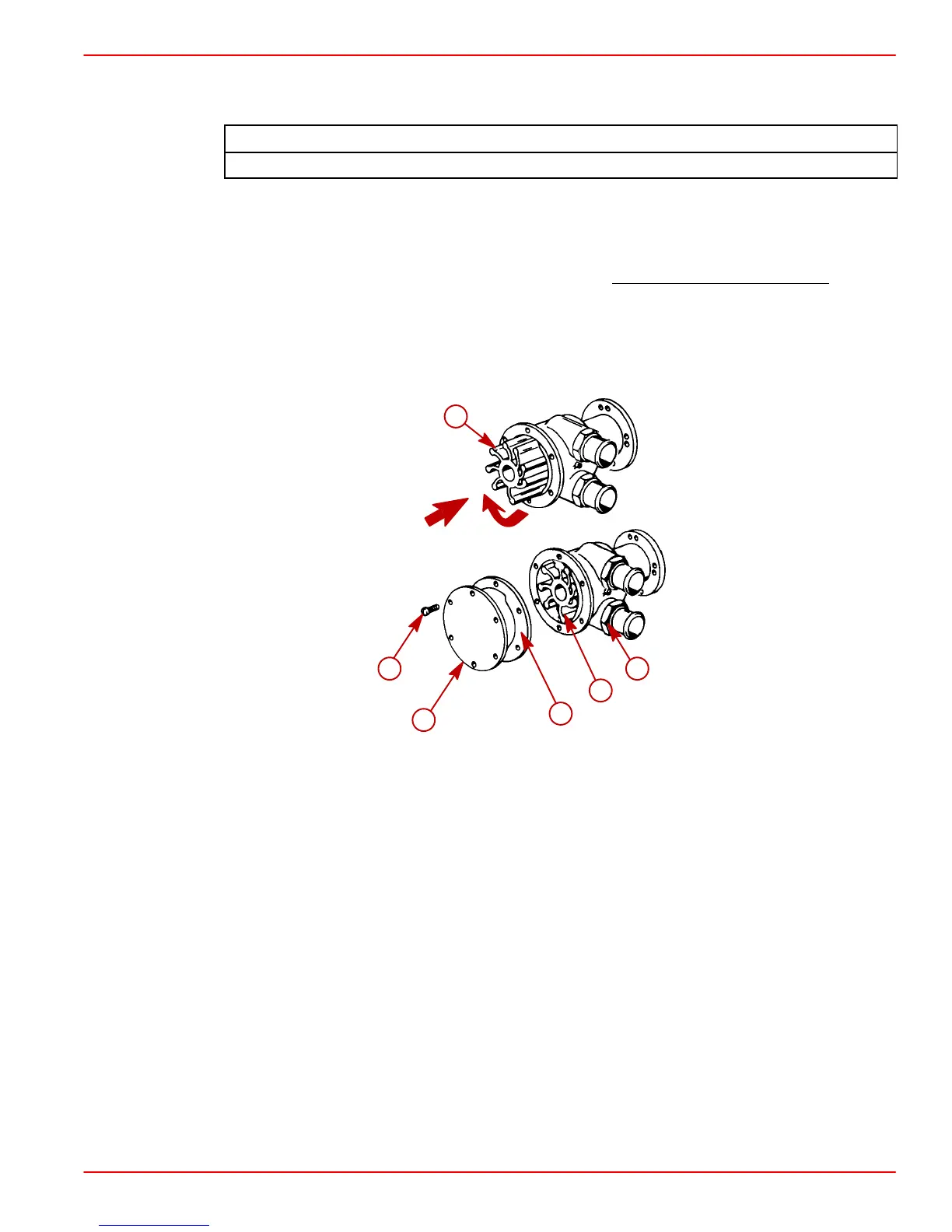

a
a-Impeller
b-Seawater Pump Housing
c-Gasket (Wide Surface On Cam Side)
d-Cover
e-Cover Screws
