INJECTION PUMP SERVICE MANUAL NUMBER 22

Page 5D-10 90-860074--1 FEBRUARY 2002

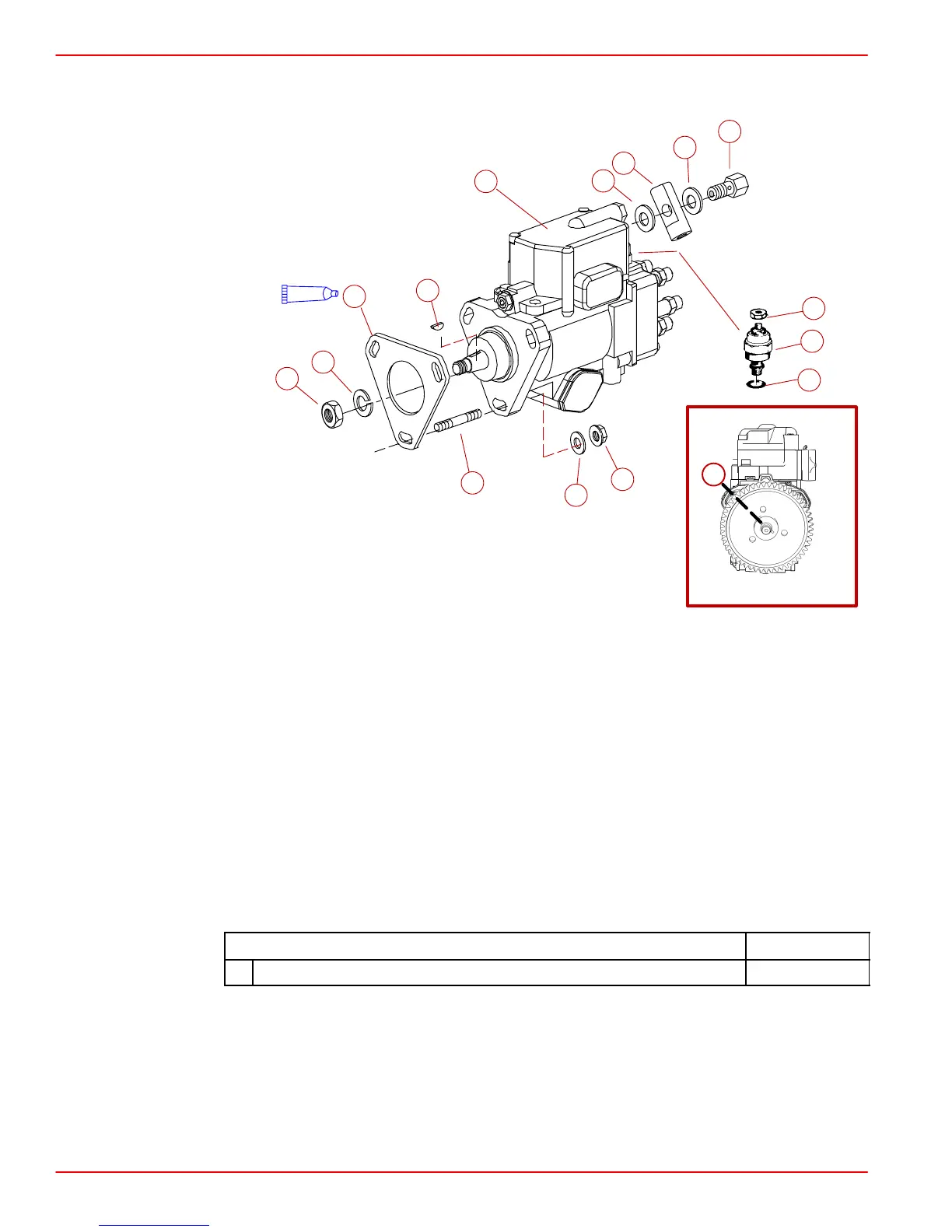

Exploded View

73911

75437

27 - Injection Pump

28 - Gasket

29 - Stud (M8 x 30)

30 - Washer

31 - Nut

32 - Key

33 - Lockwasher

34 - Nut

35 - Electric Fuel Shut-Off Device

36 - Washer

37 - Nut

38 - Sealing Washer

39 - Banjo bolt (M14 x 1.5)

40 - Return Fuel Connector

41 - Keyway Orientation During Install

(All Settings At TDC Cylinder 1)

Description

Part Number

A Perfect Seal 92-25711-3
