MAINTENANCE

SERVICE MANUAL NUMBER 22

90-860074--1 FEBRUARY 2002 Page 1B-39

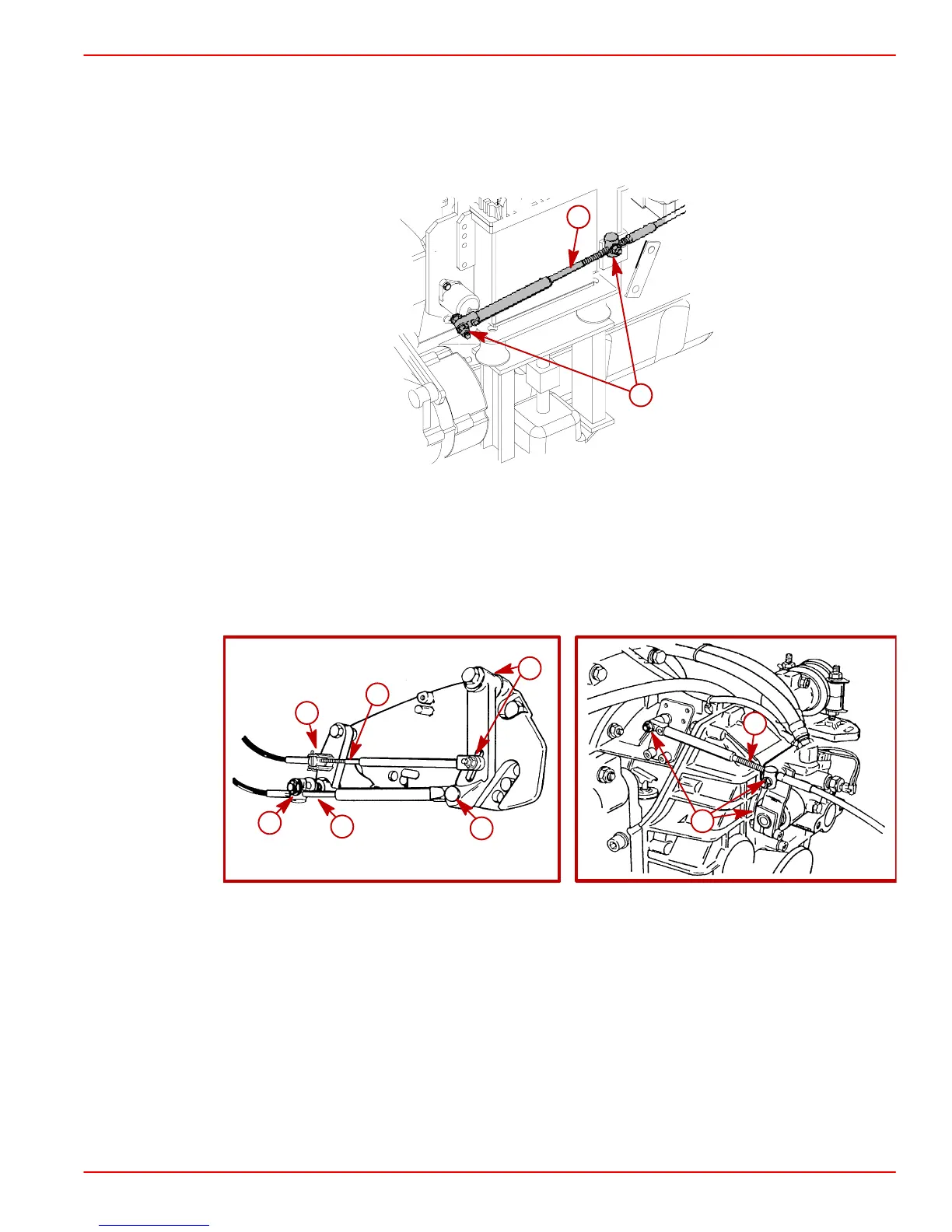

Lubrication

Throttle Cable

1. Lubricate pivot points and guide contact surfaces with SAE 30W engine oil.

75332

Single Cable Shown (Dual Similar)

a-Pivot Points

b-Guide Contact Surfaces

Shift Cable

1. Lubricate pivot points and guide contact surfaces with SAE 30W engine oil.

22245

73587

Typical Sterndrive Model Shift Cable Typical Inboard Model Shift Cable and

Transmission Linkage

a-Pivot Points

b-Guide Contact Surface
