ENGINE MECHANICAL SERVICE MANUAL NUMBER 22
Page 3A-32 90-860074--1 FEBRUARY 2002
Valve Covers
Removal
1. Remove engine cover.
2. Remove vent hose.
3. Remove oil fill cap extension tube and sealing washer.
4. Remove engine cover support bar.
5. Remove electrical box support bracket.

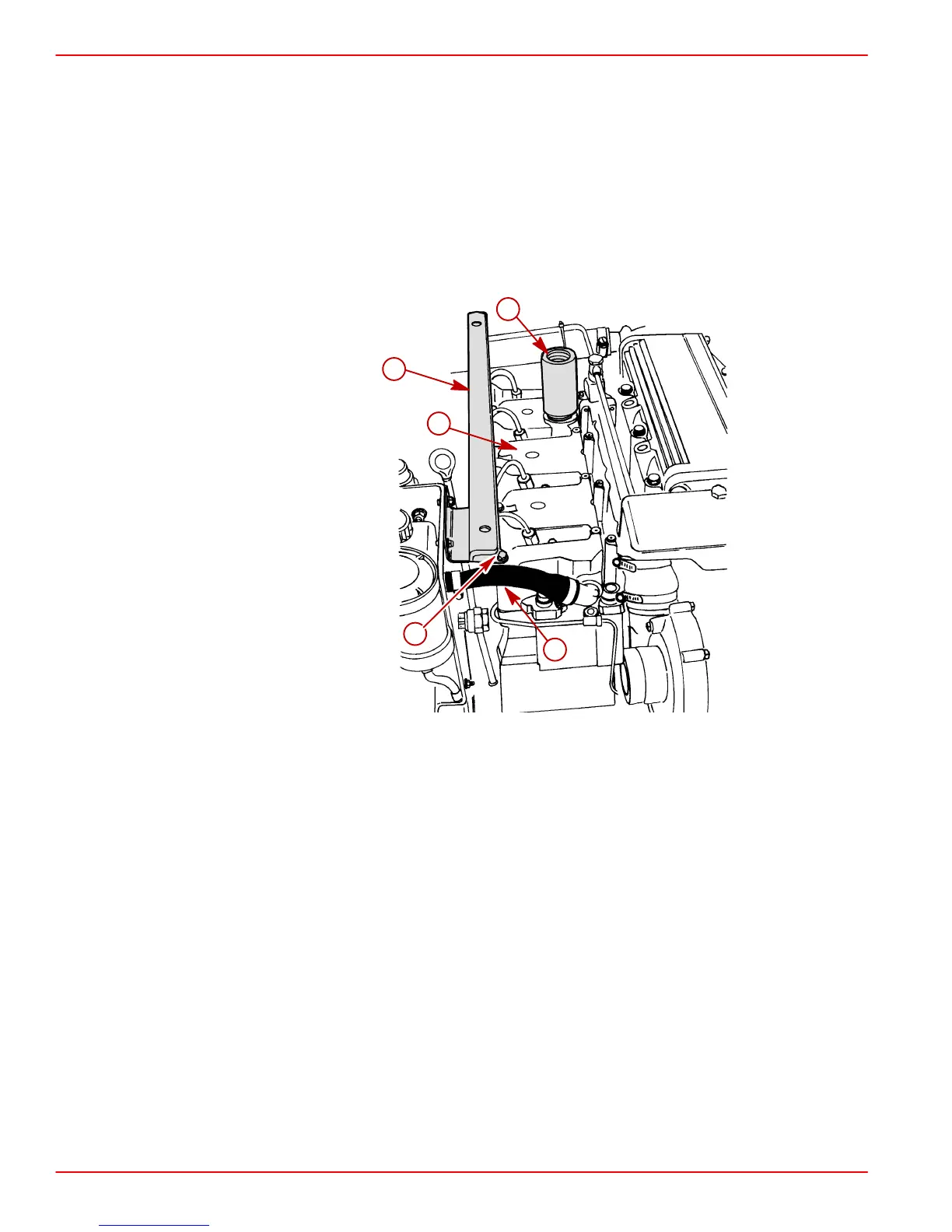

75374
a
b
c
d
e
Typical
a-Valve Cover
b-Vent Hose
c-Oil Fill Cap Extension Tube and Sealing Washer
d-Engine Cover Support Bar
e-Electrical Box Support Bracket
6. Remove fuel injectors as follows:
a. Clean the area around the injectors and pipes.
b. Remove injector fuel supply pipes.
c. Remove injector fuel return pipe.
d. Remove securing nut and injector nozzle hold-down clamp.
NOTE: To aid in removal of injectors, it is sometimes helpful to slightly rotate the injector
clockwise and counterclockwise to loosen any seal caused by paint or debris.
