Installation
1. Install idler gear, if previously removed, so marks align with crankshaft gear as shown.
Torque screws to 27 Nm (20 lb-ft).
CAUTION
Avoid possible severe engine damage. Installation of a screw longer than 16 mm
(5/8 in.) will partially block oil gallery in cylinder block causing a lack of lubrication.
Be certain retainer screw “c” as shown, is NOT longer than 16 mm (5/8 in.).
70293
a
b
d
a
b
c
d

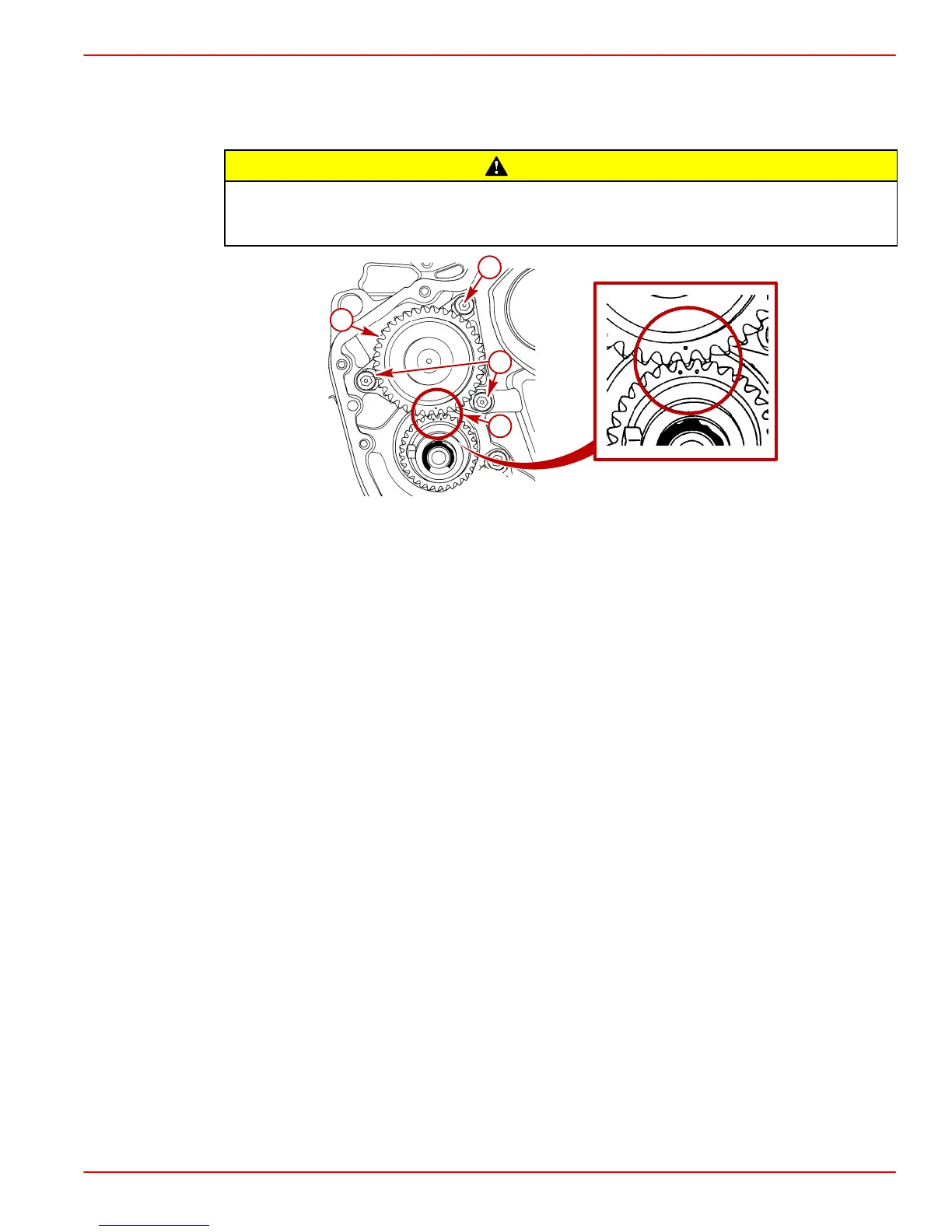

a-Idler Gear
b-Retaining Screws with Lockwashers
c-Retaining Screw Must NOT Be Longer Than 16 mm (5/8 in.)
d-Marks Aligned Properly
2. Lubricate camshaft lobes with a mixture of 20% SAE 30W engine oil and 80% Needle
Bearing Lubricant.
3. Lubricate camshaft bearings with SAE 30W engine oil.
4. Carefully insert camshaft.
